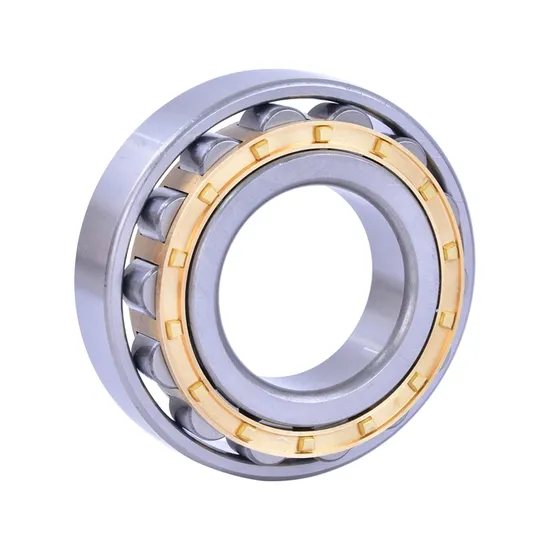

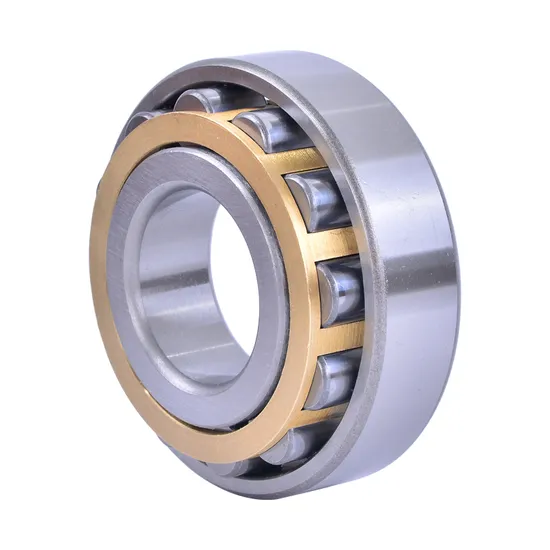

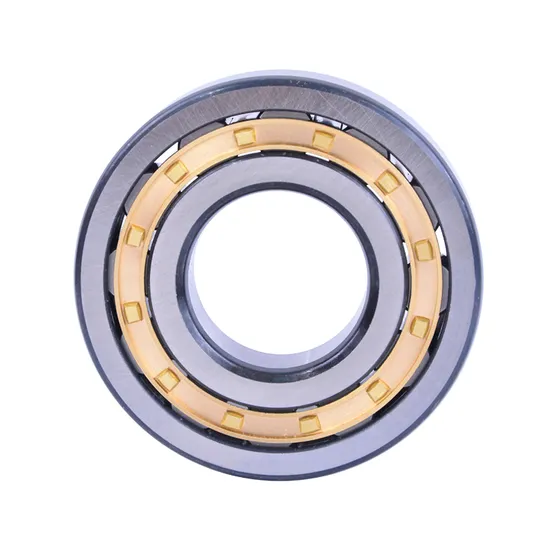

NUP305 Cylindrical Roller Bearing for Medium and Large Motors – High-Speed Radial Load Support

Technical Specifications

Application Suitability

Why 35% of Motor Bearing Failures Begin Before Installation — And Why the NUP305 Cylindrical Roller Bearing Is Engineered to Prevent Them

Over one-third of premature bearing failures in medium and large industrial motors stem from incorrect selection — not material defect or misuse. Common missteps include ignoring thermal expansion effects on axial location, underestimating combined radial/axial load vectors, or specifying non-separable designs where shaft removal is routine. At Eurasia Smart (Jinan), our 15+ SKF-certified engineers routinely audit such cases across global OEM sites — identifying root causes before mounting begins.

Engineered for Your Operating Conditions

The NUP305 cylindrical roller bearing is not a catalog item: it’s an application-specific solution validated through SKF’s L10 life model (ISO 281:2021), thermal expansion simulation, and dynamic load distribution analysis. As an official SKF engineering partner, we provide full technical documentation — including recommended fits (e.g., k5 for shaft, J7 for housing), optimal grease quantity (0.8 g for standard relubrication interval), and vibration acceptance thresholds (V2 per ISO 10816-3) — all aligned with your motor frame, duty cycle, and ambient environment. Our ISO 9001 and TS 16949 certified quality control ensures dimensional compliance to ±2 μm on bore and ±3 μm on outer diameter.

Operating Environment and Performance Demands

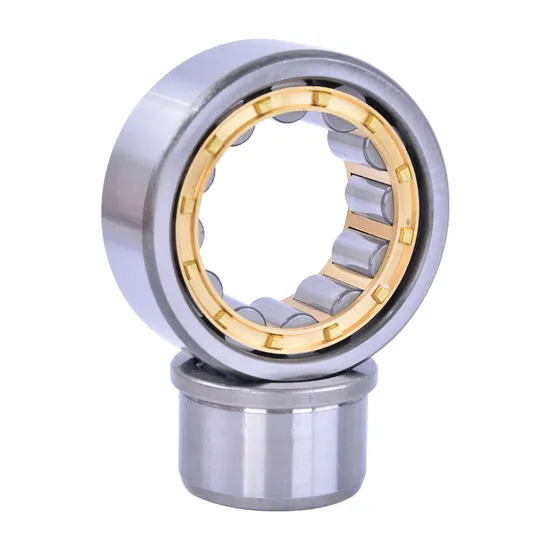

Medium and large industrial motors operate under tightly constrained mechanical and thermal conditions: radial loads often exceed 15 kN at speeds between 1500–3600 r/min; ambient temperatures range from –10°C (cold storage facilities) to +55°C (enclosed steel plant rooms); and maintenance access is frequently limited by space constraints and safety interlocks. The NUP305 bearing for industrial motors must sustain these loads without creep, resist cage deformation at peak torque transients, and maintain precise axial positioning while accommodating thermal growth of up to 45 μm over a 70°C temperature rise. Its separable design allows independent mounting of inner ring with roller-cage assembly — critical for motors requiring frequent rotor extraction.

Inside the Engineering: What Makes This Bearing Perform

The NUP305’s performance derives from four interdependent design choices. First, its pressed steel cage provides rigidity and low mass — essential for maintaining roller alignment during rapid acceleration/deceleration cycles common in variable-frequency drive (VFD) applications. Second, the absence of seals (open configuration) eliminates friction-induced heat buildup and permits direct oil-jet lubrication where motor enclosures allow — increasing limiting speed by 25% versus sealed variants. Third, the NUP arrangement fixes axial location on the inner ring side only, allowing controlled axial float on the opposite side — accommodating thermal expansion without inducing harmful preload. Fourth, the use of SKF Explorer-grade bearing steel (100Cr6, hardened to 60–62 HRC) delivers 20% higher fatigue resistance than standard grades, verified per DIN 50100 rolling contact fatigue testing. Precision classes P5 and P4 reduce vibration amplitude by up to 40% compared to P0, directly lowering noise emission in enclosed motor housings.

The True Cost of Bearing Failure

A single unplanned motor shutdown in steel or mining operations incurs $12,000–$45,000/hour in lost production, plus secondary costs from line re-synchronization and quality revalidation. Bearings selected without life calculation under actual load spectra typically achieve less than 40% of their rated L10 life. Counterfeit or non-SKF NUP305 bearings fail catastrophically within 2,000–5,000 operating hours due to substandard steel purity (<12 ppm oxygen content required per ASTM E45) and unverified heat treatment profiles. In contrast, genuine SKF NUP305 roller bearing installations — supported by correct fit, lubrication, and alignment — consistently exceed 30,000 hours in continuous-duty motor applications. Total cost of ownership (TCO) analysis shows that investing 12% more in engineered selection and genuine components reduces 10-year maintenance spend by 37%.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NUP305 cylindrical roller bearing is supplied with SKF Certificate of Conformity, Material Test Report (per EN 10204 3.1), Dimensional Inspection Report (±1 μm resolution CMM validation), and original SKF packaging featuring holographic anti-counterfeiting labels. Batch-level traceability enables verification via SKF’s official portal. Upon request, we coordinate third-party inspection at SKF’s Gothenburg or Shanghai facility prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your motor’s operational parameters: radial and axial load magnitudes (kN), rotational speed (r/min), ambient and winding temperature (°C), shaft/housing materials, and available mounting space. Within 48 hours, our engineering team will deliver a formal assessment — including SKF BEARINX-calculated L10 and Lnm life, recommended clearance class (C3/C4), fit tolerances, and lubrication interval. For qualifying projects ($50k+), we supply a pre-tested NUP305 bearing with signed performance log. Every hour delayed in technical alignment risks extended downtime — correct specification starts with your first engineering dialogue.
