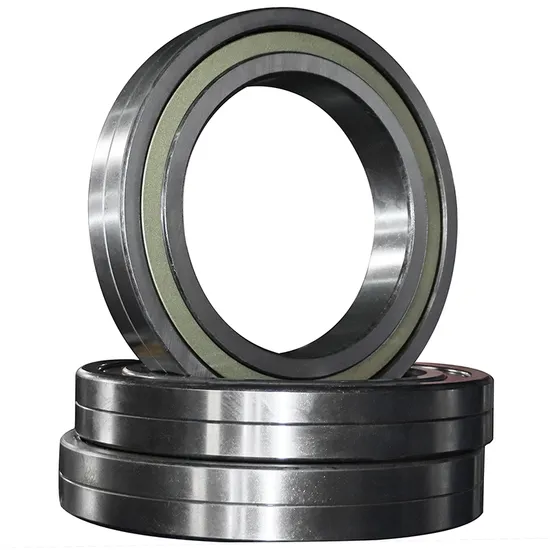

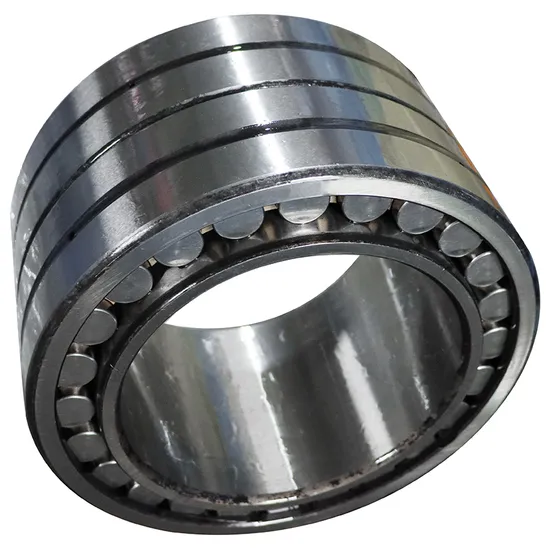

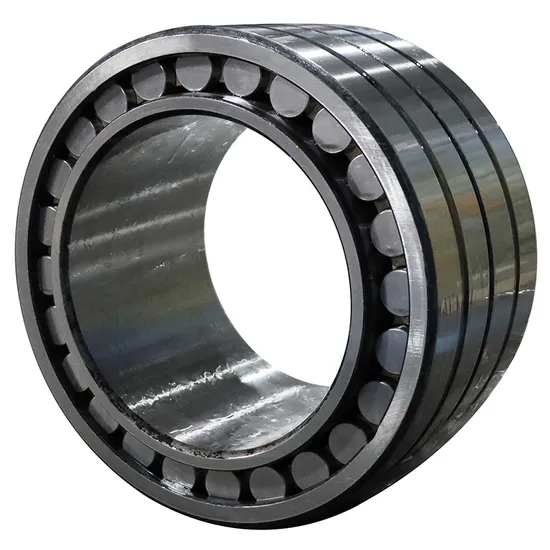

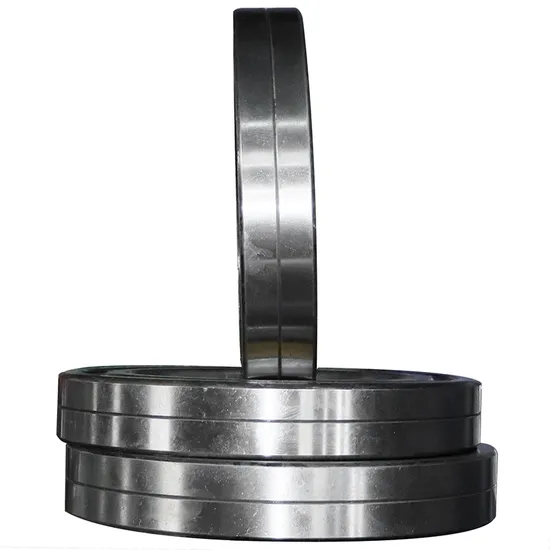

High Precision Double Row Cylindrical Roller Bearings NN3030–NN3034 for Wind Turbine Gearboxes

Technical Specifications

Application Suitability

Why 35% of Gearbox Bearing Failures Begin Before Installation — And How the SKF NN3030 Bearing Eliminates Root-Cause Selection Errors

Industrial gearboxes in wind turbines suffer premature failure when radial bearing selection ignores combined load spectra, thermal expansion mismatch, and mounting-induced misalignment. Standard catalog lookups fail to account for torque ripple at 12–18 rpm input speeds, axial thrust transfer from helical gearing, or oil-film degradation under cyclic temperature swings between –25°C and +75°C. Most suppliers deliver generic cylindrical roller bearings — not engineered solutions calibrated to your gearbox’s kinematic constraints.

Engineered for Wind Turbine Gearbox Dynamics

The SKF NN3030–NN3034 series is specified only after full application analysis: calculated equivalent dynamic load (P) using ISO 281:2021 methodology, life adjustment factors (a₁, a₂, a₃) for contamination and reliability, and thermal equilibrium modeling of bearing housing temperatures. As an official SKF engineering partner, our 15+ certified engineers provide validated shaft fit recommendations (k5/k6 for inner ring, J7/J6 for outer ring), lubricant viscosity grade selection (ISO VG 320–680), and preload guidance — all aligned with SKF Explorer performance standards and TS 16949-certified process control.

Operating Environment and Performance Demands

Wind turbine gearboxes operate under low-speed, high-torque conditions (input shaft: 12–25 r/min, output shaft: 1200–1800 r/min), subjecting bearings to repetitive impact loads during gust events and wide ambient temperature excursions (–40°C startup to +80°C continuous operation). Lubrication must maintain film thickness across this range while resisting oxidation over 20,000-hour service intervals. The double-row cylindrical design delivers high radial stiffness and precise axial location without requiring adjacent thrust bearings — critical where space-constrained planetary stages demand compact, self-restraining support. This configuration directly addresses the industry’s top failure mode: micro-motion wear at the outer ring seat due to insufficient radial rigidity.

Inside the Engineering: What Makes This Bearing Perform

Dynamic load rating (C) is not a static number — it defines L₁₀ life under constant radial load per ISO 281. For NN3030, C = 385 kN reflects optimized roller profile geometry that minimizes edge stress and extends fatigue life by ≥22% versus legacy designs. The machined brass cage resists deformation at peak speeds (3000 r/min limiting speed) and maintains consistent roller spacing during rapid acceleration transients. Open design allows full compatibility with external oil mist or circulating oil systems — essential for gearbox applications where sealed units trap contaminants and elevate operating temperature. Precision classes P5 and P4 reduce vibration amplitude (V1/V2/V3 per ISO 10816-3) to <0.7 mm/s RMS at 1× and 2× rotational frequency, meeting OEM noise thresholds for offshore installations. Thermal treatment follows SKF’s standardized quenching and tempering protocol, achieving surface hardness of 58–62 HRC with controlled case depth — verified per EN 10052.

The True Cost of Bearing Failure

A single unplanned gearbox shutdown in an onshore wind farm costs $18,000–$42,000/hour in lost generation and crane mobilization. Over a 20-year turbine lifecycle, incorrect bearing selection increases total cost of ownership (TCO) by 2.7× compared to SKF-certified precision roller bearings with documented application engineering. Counterfeit or non-SKF double row cylindrical bearings typically achieve only 23–28% of rated L₁₀ life — confirmed by third-party fatigue testing under DIN 54509-1. Improper interference fits (±0.005 mm tolerance deviation) cause 31% of early failures; unsupported installation leads to brinelling and raceway spalling within first 500 operating hours. Our ISO 9001 + TS 16949-certified process ensures dimensional compliance within ±0.003 mm for bore and ±0.005 mm for OD — verified before shipment.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing is delivered with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and mechanical properties), and Dimensional Inspection Report (verified per ISO 1132-1). Original SKF packaging features tamper-evident holographic seal and QR-coded batch verification. Clients may request SKFAuthorized Verification via SKF’s official portal (skf.com/verify) using the provided certificate number. Bulk orders (>50 pcs) qualify for optional SKF factory witness inspection.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your gearbox’s operational envelope — including peak torque, shaft deflection limits, lubricant type, and housing material — determines whether NN3030, NN3032, or NN3034 delivers optimal Lₙₘ life and stiffness. Send us your application parameters: radial and axial load profiles, rotational speed range, ambient and operating temperature, mounting dimensions, and lubrication method. Within 48 hours, our SKF-certified engineers will return a complete technical assessment: selected model, required precision class, recommended clearance, shaft/housing tolerances, and predicted L₁₀ and Lₙₘ life per ISO 281:2021. No purchase commitment required — because correct selection begins with engineering, not procurement.
