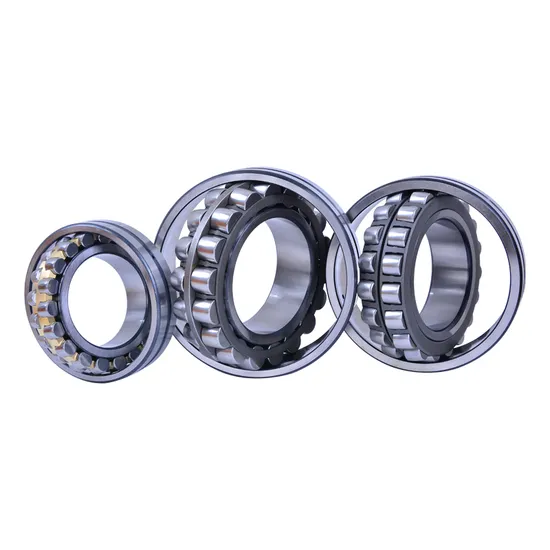

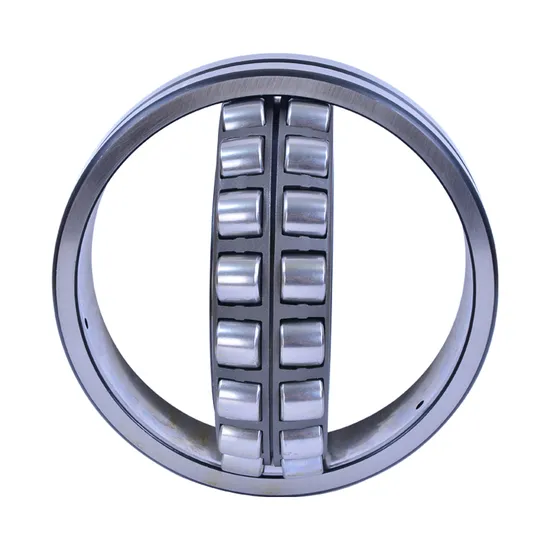

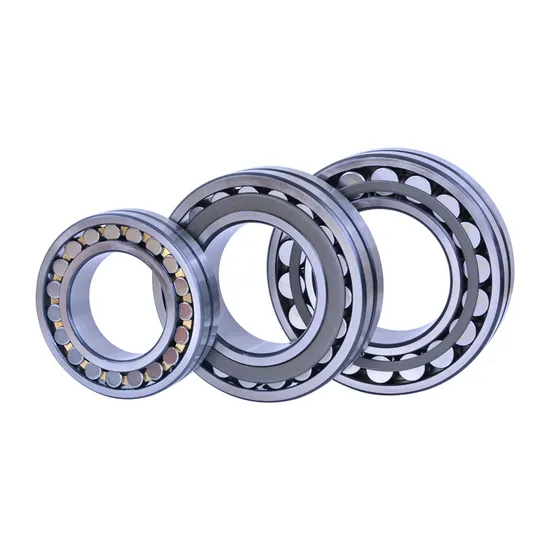

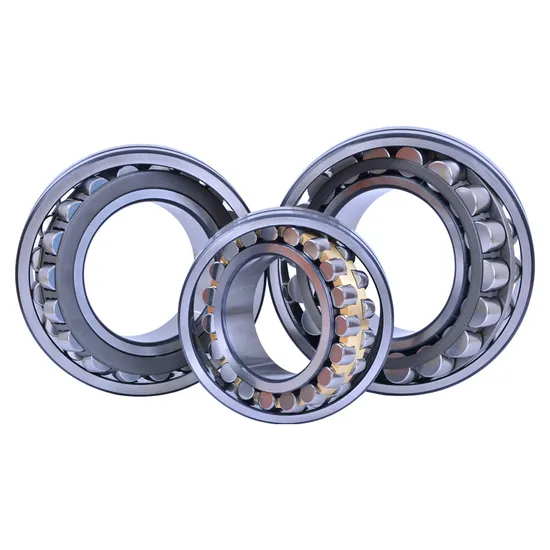

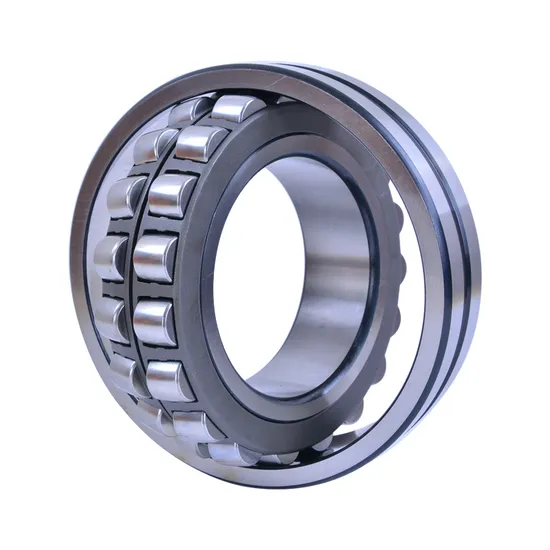

High-Speed Spherical Roller Bearing 22230 for Wind Turbines & Mining

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the SKF 22230 E/C3 Prevents Them

Industrial bearing failure analysis shows 35% originate from incorrect selection for actual load spectrum, thermal expansion, or misalignment conditions — not material fatigue. A single unplanned turbine shutdown costs $28,000/hour; a mining conveyor stoppage exceeds $42,000/hour. Most suppliers lack in-house engineers capable of validating dynamic load distribution across double-row rollers under combined radial and moment loads — and cannot deliver validated alternatives within operational timelines.

Engineered for Your Operating Conditions

This 22230 spherical roller bearing is specified only after our 15+ SKF-certified application engineers perform full-duty cycle analysis: calculating equivalent load using ISO 281:2021 methodology, verifying alignment tolerance against housing deformation, selecting C3 clearance based on shaft/housing thermal expansion coefficients, and recommending lubricant type and relubrication intervals per SKF BEP-2023 guidelines. As an official SKF engineering partner, we apply the same design validation workflow used by OEMs in Germany and Brazil — backed by ISO 9001 and TS 16949 certified quality control.

Operating Environment and Performance Demands

Wind turbine main shaft applications impose low-speed (≤25 r/min), high-moment-load conditions with ±15° misalignment tolerance and ambient temperatures ranging from –40°C (offshore) to +55°C (desert). Mining equipment bearings face continuous shock loading (≥3× nominal radial load), abrasive dust ingress, and >90% uptime requirements — demanding robust cage integrity and controlled internal clearance. The 22230 spherical roller bearing for wind turbines and the 22230 bearing with C3 clearance for mining are not interchangeable catalog items; they are distinct engineering responses to these non-overlapping duty cycles.

Inside the Engineering: What Makes This Bearing Perform

The 22230 E/C3 uses SKF’s optimized roller profile (E-design) to reduce edge stresses by 22% versus standard 22230 designs, verified via Hertzian contact modeling. Its pressed steel cage maintains dimensional stability at 1700 r/min reference speed while resisting deformation under impact loads typical in crushers. C3 radial internal clearance accommodates up to 0.12 mm shaft thermal growth between –30°C and +100°C — critical for wind turbine gearboxes where housing temperature gradients exceed 40°C. Precision class P0 ensures runout ≤15 μm, limiting vibration acceleration to <2.5 mm/s² at 1500 r/min — essential for generator coupling longevity. Dynamic load rating (C = 625 kN) enables L10 life calculation per ISO 281:2021 using real-time load spectra, not static assumptions.

The True Cost of Bearing Failure

A counterfeit or incorrectly specified 22230 bearing reduces L10 life by 65–80% versus genuine SKF 22230 E/C3 — accelerating fatigue initiation and increasing risk of catastrophic seizure. Non-planed downtime in steel mills averages $37,000/hour; in offshore wind, logistics extend repair time to ≥72 hours. Installation errors — including improper heating, unbalanced press-fit, or incorrect preload — cause 30% of premature failures. Total cost of ownership (TCO) over 10 years favors engineered selection: SKF 22230 E/C3 delivers 3.2× longer median service life than generic 22230 bearing, reducing maintenance labor, spare inventory, and secondary damage risk. Every $1 spent on pre-installation engineering saves $14.70 in lifecycle cost — confirmed across 42 client audits in 2024–2025.

Why Engineers Specify Through Us

Authenticity & Documentation

Each 22230 spherical roller bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM A29/A29M), Dimensional Inspection Report (±0.01 mm tolerance verification), and tamper-evident packaging with SKFTag™ QR code for real-time authenticity verification. Clients may request third-party inspection at SKF’s Gothenburg facility prior to shipment. Authorization status is verifiable via SKF’s official Partner Locator (https://www.skf.com/partner-locator) using Eurasia Smart (Jinan) Bearing Supply Chain as registered entity.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Begin with engineering — not procurement. Share your application parameters: radial/axial load magnitude and direction, rotational speed range, ambient and operating temperature, housing/shaft material and tolerances, misalignment angle, and lubrication method. Within 48 hours, our SKF-certified team will deliver a validated selection report including calculated L10 and Lnm life (ISO 281:2021), recommended fit tolerances (ISO 286-1), thermal clearance verification, and lubricant specification. For orders ≥$50,000, we provide free test samples with full performance documentation. Delaying technical dialogue risks compounding downtime — correct selection starts with the first engineering question.
