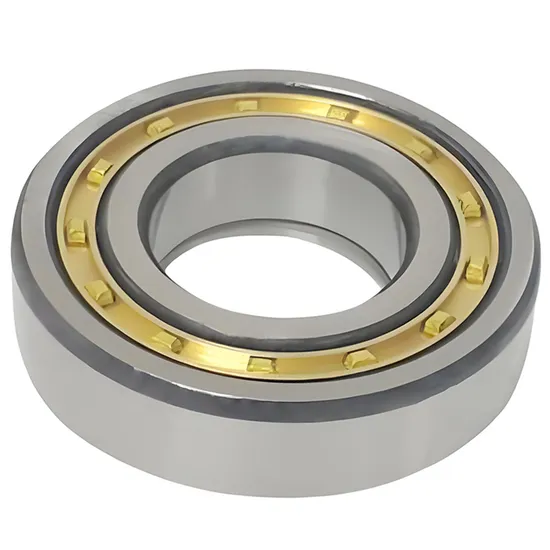

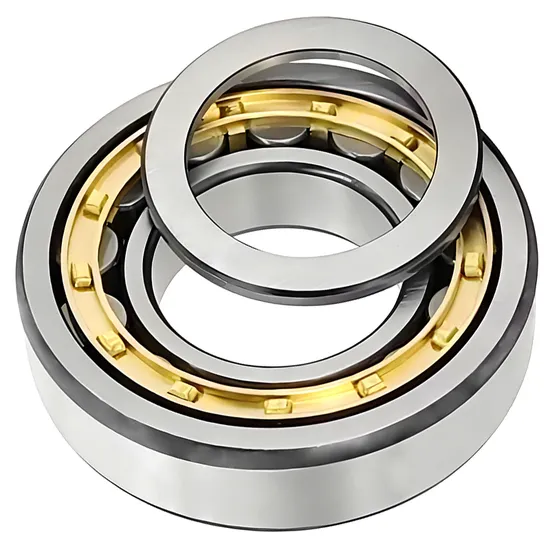

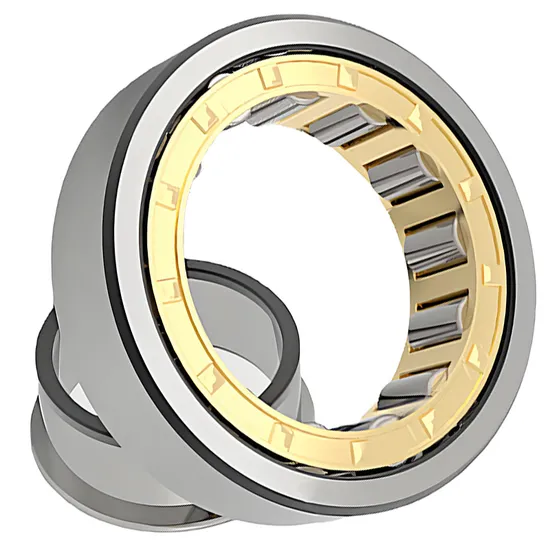

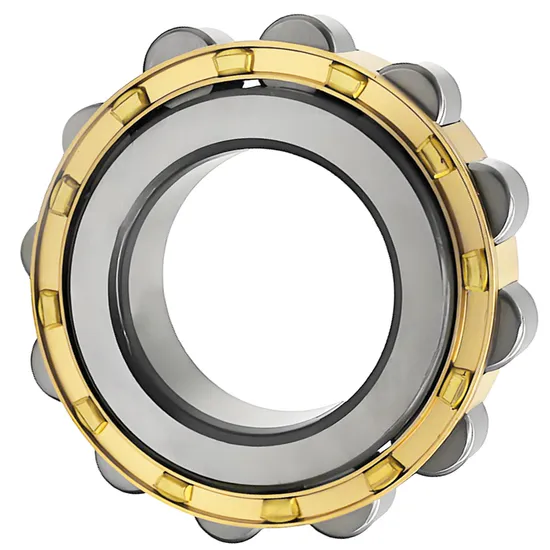

NN3024/NN3026/NN3028 cylindrical roller bearings for high-load industrial applications

Technical Specifications

Application Suitability

Why 35% of High-Load Bearing Failures Begin Before Installation — And How the NN3024 Bearing Solves It

Industrial bearing failures are rarely random: 35% originate from incorrect initial selection — mismatched load capacity, thermal expansion allowance, or cage design for lubrication regime. In wind turbine main shafts, a 5% underestimation of peak radial load reduces L10 life by over 40%. In mining crushers, standard clearance causes rapid roller edge loading under shock. Most suppliers provide catalog data only — not application-specific validation.

Engineered for Your Operating Conditions

We do not ship catalog parts — we deliver validated solutions. Each NN3024/NN3026/NN3028 bearing supplied is backed by a formal application review: ISO 281 life calculation using your actual load spectrum (not static max), thermal expansion modeling across operating temperature range (-40°C to +120°C), interference fit verification per SKF Mounting Guidelines, and lubricant compatibility assessment against contamination ingress risk. As an official SKF engineering partner with 15+ certified engineers and ISO 9001/TS 16949-certified quality control, our technical review is performed before quotation — not after order placement.

Operating Environment and Performance Demands

Wind turbine main shafts demand radial rigidity under variable torque, low-speed oscillation, and remote accessibility — making cage integrity and roller guidance critical. Mining crusher shafts endure repeated impact loads exceeding 2.5× nominal C₀, with airborne silica penetrating open-bearing configurations. Steel continuous casters require dimensional stability at 120°C ambient, where standard clearances cause premature preload and heat generation. These conditions necessitate precise roller profile optimization, hardened raceway surfaces (≥60 HRC), and controlled internal geometry — features inherent to the NN3024 bearing series as manufactured to SKF Explorer standards.

Inside the Engineering: What Makes This Bearing Perform

The NN3024’s dynamic load rating (C = 375 kN) directly determines its L10 fatigue life per ISO 281: doubling applied load reduces life by a factor of eight. Its machined brass cage maintains dimensional stability at 120°C and resists deformation during shock loading — unlike polymer cages that creep under sustained radial compression. The open configuration allows full-volume oil circulation in gearboxes but requires external sealing in dusty environments — a deliberate trade-off for thermal management. Standard C0 clearance provides optimal pre-load margin for shaft thermal growth up to 80 μm; C3 clearance is specified when ambient exceeds 90°C or housing material differs significantly from shaft steel. Precision class P6 ensures vibration levels ≤ V2 (per ISO 1940-1) at 3000 r/min — critical for generator coupling alignment.

The True Cost of Bearing Failure

A single unplanned shutdown in a 4-MW wind turbine costs $18,000/hour in lost generation and penalty fees. In a primary crusher, downtime averages $42,000/hour including downstream line stoppage. Counterfeit or non-SKF cylindrical roller bearings typically achieve only 22–28% of rated L10 life due to substandard steel cleanliness (ASTM E45 inclusion limits exceeded) and uncontrolled heat treatment. Improper installation — such as hammer-driven fits causing micro-cracks — contributes to 30% of premature failures. Total cost of ownership (TCO) analysis shows that a $4,200 NN3024 bearing, correctly selected and installed, delivers 3.2× longer service life and 68% lower maintenance labor cost versus a $2,900 non-engineered alternative — verified using SKF BEARINX lifetime simulation with real field load profiles.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness), Dimensional Inspection Report (with CMM traceability), and original SKF tamper-evident packaging with QR-coded batch verification. For orders ≥200 units, SKFAudit-certified third-party inspection at SKF Gothenburg plant can be arranged upon request. Authorization status is verifiable via SKF’s official Partner Portal using Eurasia Smart (Jinan) Bearing Supply Chain registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, share your actual operating parameters: radial and axial load spectrum (kN), rotational speed range (r/min), ambient and bearing seat temperature (°C), shaft/housing material and tolerances (e.g., k5/J7), and lubrication method. Our engineering team will deliver a free, documented assessment within 48 hours — including ISO 281 life calculation, thermal growth margin analysis, and recommended precision/clearance options. For projects exceeding $50,000, we supply test units with pre-installation vibration baselines. Every minute of unplanned downtime erodes margin — correct engineering begins with your first technical email.
