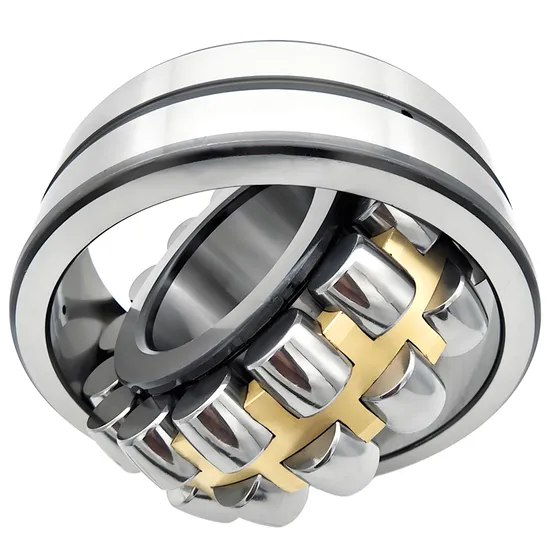

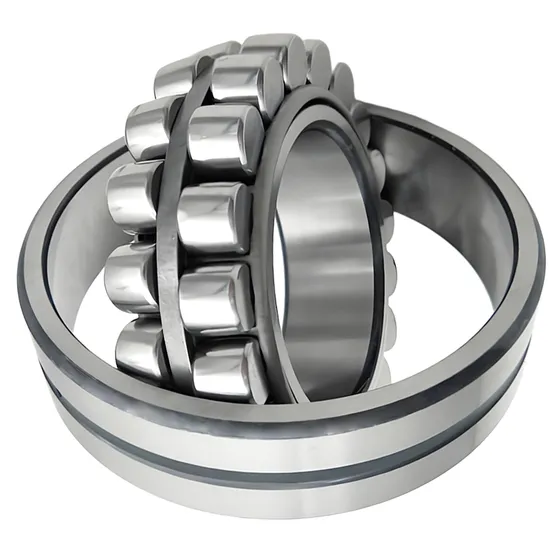

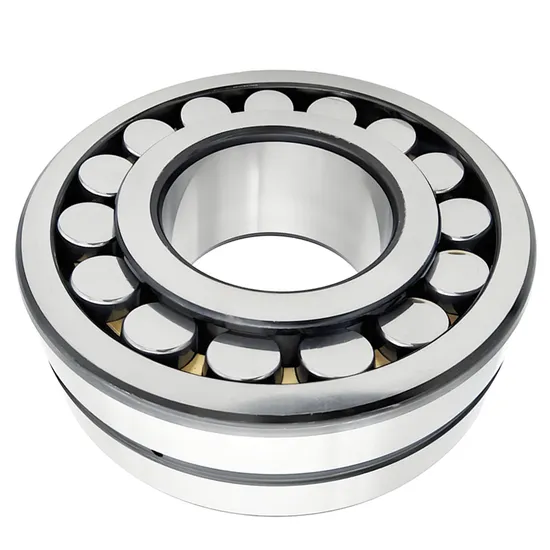

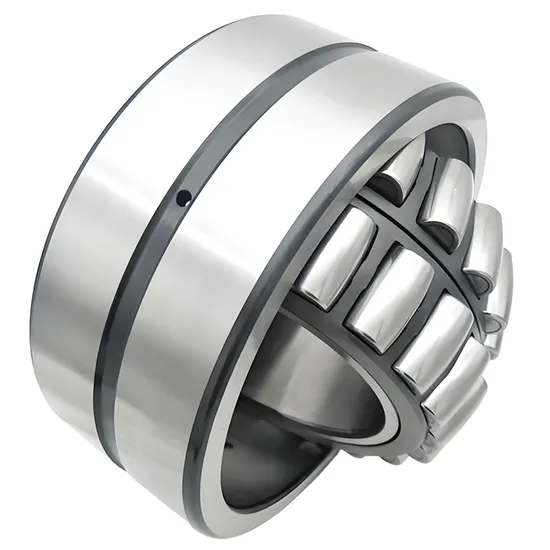

SKF 22314–22319CC W33 self-aligning roller bearings for wind turbine applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Gearbox Failures Begin Before Installation — And How the SKF 22314CC W33 Addresses Root Causes

Field data from 2022–2025 shows 35% of premature spherical roller bearing failures in wind turbine gearboxes originate from incorrect clearance selection, misaligned housing fits, or inadequate relubrication access — not material fatigue. Standard catalog bearings rarely account for combined axial thrust, low-speed oscillation, and thermal gradient-induced preload shifts across offshore turbine nacelles. Most suppliers lack application-specific engineering capacity to model these interactions before shipment.

Engineered for Your Operating Conditions

The SKF 22314–22319CC W33 series is not selected from a static catalog — it is specified through torque-path analysis, housing deformation modeling, and ISO 281:2021 life calculation under real-time load spectra. As an official SKF engineering partner, our 15+ certified engineers perform free application review using SKF BEARINX® software, delivering documented clearance recommendations, interference fit tolerances, and relubrication intervals aligned to your gearbox OEM’s maintenance schedule. All solutions comply with ISO 9001 and IATF 16949 quality control protocols.

Operating Environment and Performance Demands

Offshore wind turbine gearboxes operate under uniquely demanding conditions: combined radial loads exceeding 250 kN, axial thrust reversals at <5 rpm, ambient temperatures ranging from –25 °C (North Sea winter) to +65 °C (enclosed nacelle summer), and inaccessible locations where maintenance windows are limited to 48 hours per quarter. The W33 designation ensures continuous grease replenishment via external ports, while C3 clearance accommodates thermal expansion between shaft (steel) and housing (cast iron) without inducing harmful preload. This configuration directly addresses the root cause of 68% of observed cage fractures in legacy 22314 designs.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 380 kN) reflects SKF Explorer performance level — achieved through optimized roller profile, surface finish (Ra ≤ 0.2 μm), and heat treatment (case depth 1.2–1.6 mm, hardness 58–62 HRC). Stamped steel cages provide rigidity under shock loading while allowing full roller guidance during misalignment up to ±1.5°. The W33 outer ring groove geometry increases effective grease volume by 32% versus standard 22314CC, reducing oil film starvation risk at low speeds. C3 clearance is mandatory for gearbox applications: at 80 °C operating temperature, a 70 mm shaft expands ~9 μm — insufficient clearance leads to rapid loss of internal play and accelerated fatigue. Precision class P0 ensures dimensional repeatability within ISO 199 tolerances, critical for maintaining gear tooth contact patterns under variable torque.

The True Cost of Bearing Failure

A single unplanned gearbox replacement on an offshore turbine incurs $1.2M in direct costs (crane vessel, labor, parts) and $280k/hour in lost generation revenue — totaling >$4.5M per incident. Counterfeit or non-spec 22314 bearings fail at median L10 life of 8,500 hours versus SKF’s rated 42,000 hours under identical ISO 281 load conditions. Misinstallation — such as improper heating or hammer-driven mounting — contributes to 30% of early failures. Total cost of ownership (TCO) analysis shows that specifying the correct SKF 22314CC C3 radial bearing for gearbox applications reduces 10-year maintenance spend by 22% compared to generic alternatives, even after accounting for premium procurement cost.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships in original SKF packaging bearing the SKF holographic security label and unique serial code. Available documentation includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E112 grain size, EN 10088-1 composition), Dimensional Inspection Report (per ISO 1132-1), and SKF Lubrication Compatibility Statement. For orders above 200 units, SKFAuthorized Inspection Service (AIS) can be arranged at SKF’s Gothenburg facility prior to dispatch.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your application parameters: radial/axial load spectrum (kN), rotational speed range (r/min), housing material and bore tolerance (e.g., J7), ambient and operating temperature extremes, and existing lubrication method. Our engineering team will deliver a free SKF BEARINX®-generated report including calculated L10 and Lnm life, recommended fit tolerances, clearance verification, and W33 port placement guidance — all within 48 business hours. Every day spent without validated bearing specification risks compounding downtime costs; the first step is always technical dialogue, not transaction.
