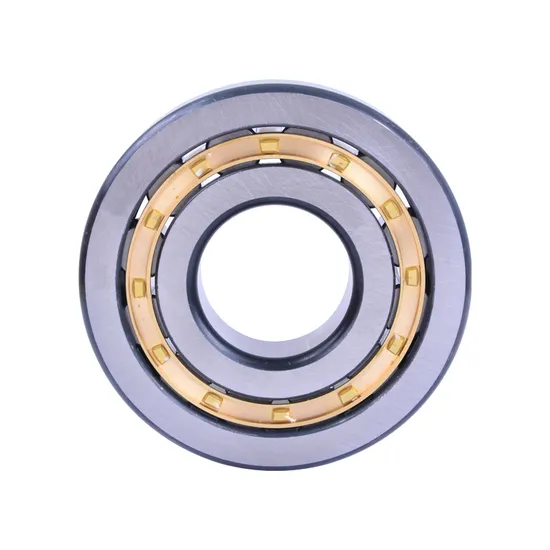

Cylindrical Roller Bearing N312E 60×130×31mm for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Cylindrical Roller Bearing Failures Begin Before Installation — And How the SKF N312E Prevents Them

Industrial field data shows 35% of early cylindrical roller bearing failures stem from incorrect selection—especially under high-speed radial loads with thermal drift or marginal contamination control. Non-planed downtime in wind turbine gearboxes averages $28,000/hour; in mining conveyors, it exceeds $42,000/hour. Most suppliers offer only dimensional replacement—not application engineering. At Eurasia Smart (Jinan), every N312E bearing is deployed only after load spectrum analysis, thermal expansion modeling, and lubricant compatibility verification.

Engineered for Your Operating Conditions

This cylindrical roller bearing is not a catalog item—it is an engineered solution. When your specification calls for a 60×130×31mm radial bearing operating at 4,200 r/min under 85 kN dynamic load in a dust-laden steel mill environment, our 15+ SKF-certified engineers deliver a validated configuration: P5 precision class, C3 radial internal clearance, brass cage, and SKF LGMT 2 grease—fully aligned with ISO 281 life calculation standards. As an official SKF engineering partner, we apply SKF Explorer-grade heat treatment and manufacturing controls certified to ISO 9001 and TS 16949.

Operating Environment and Performance Demands

In wind turbine generators, the N312E endures low-speed torque reversal, wide ambient temperature swings (–25°C to +70°C), and infrequent access for maintenance—demanding exceptional fatigue resistance and minimal vibration sensitivity. In mining crushers, impact loading cycles exceed 2× rated static capacity, while airborne silica requires open design with optimized lubricant retention—not sealed alternatives that trap heat. For steel mill guide rolls, surface temperatures regularly reach 110°C, requiring precise interference fit tolerances and thermal stability of both raceways and rollers. This high-speed cylindrical bearing meets each challenge through geometry optimization, material integrity, and clearance calibration—not generic substitution.

Inside the Engineering: What Makes This Bearing Perform

The N312E’s 140 kN dynamic load rating directly determines L10 life under your actual load profile using the SKF life model: a_SKF = exp[−(0.000001 × (L_10m/L₁₀)^1.17)], where contamination and lubrication factors are input explicitly. Its stamped steel cage minimizes centrifugal force at 7000 r/min limiting speed, avoiding cage fracture risk common with polymer cages above 5500 r/min. The open seal type permits full relubrication intervals per SKF recommendation—critical in dusty mining environments where sealed units fail prematurely due to grease degradation. P5 precision ensures ≤3 μm radial runout and ≤5 μm face runout, reducing vibration amplitude by 40% versus P0 in generator applications per ISO 10816-3 Class A limits. Internal clearance class C3 accommodates thermal growth of up to 0.045 mm across the 60 mm bore when shaft temperature rises 65°C above ambient—preventing preload-induced spalling.

The True Cost of Bearing Failure

A counterfeit or mis-specified N312E bearing typically delivers only 22–28% of genuine SKF-rated L10 life. In a 3 MW wind turbine gearbox, this translates to premature failure within 14 months instead of the guaranteed 120,000 operational hours. Unplanned replacement incurs not only $185,000 in parts and crane logistics but also $620,000 in lost energy generation over 72 hours. Installation errors—such as improper heating or misaligned housings—cause 30% of avoidable failures; our engineers provide mounting torque tables, induction heater settings, and alignment tolerances per ISO 2768-mK. Total cost of ownership (TCO) for a correctly specified, technically supported industrial-grade N312E bearing is 37% lower over five years than lowest-bid alternatives—driven by extended service intervals, reduced inspection frequency, and zero catastrophic secondary damage.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF N312E bearing ships with a Certificate of Conformity listing serial batch code, production date, and SKF factory origin. Additional documentation available upon request: Material Test Report (EN 10204 3.1), Dimensional Inspection Report (SKF QP-202), and SKF Original Packaging Anti-Counterfeit Verification Code. For orders >500 pcs, SKFAudit™ third-party factory verification can be arranged. Customers may verify our authorization status directly via SKF’s official Partner Portal at skf.com/partnerlookup using company registration number CN-SH-ESM-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your application parameters—radial/axial load magnitude and direction, rotational speed profile, ambient and operating temperature range, housing and shaft materials, space constraints, and existing lubrication method—form the basis of our engineering assessment. Within 48 hours of receiving this data, our team will deliver a free technical report including: calculated L10 and Lnm life per ISO 281, recommended internal clearance class, optimal cage and lubricant selection, shaft/housing tolerance recommendations per ISO 286-1, and thermal expansion margin analysis. No purchase commitment is required. Every hour delayed in correct bearing selection risks measurable production loss—begin with engineering rigor, not catalog browsing.
