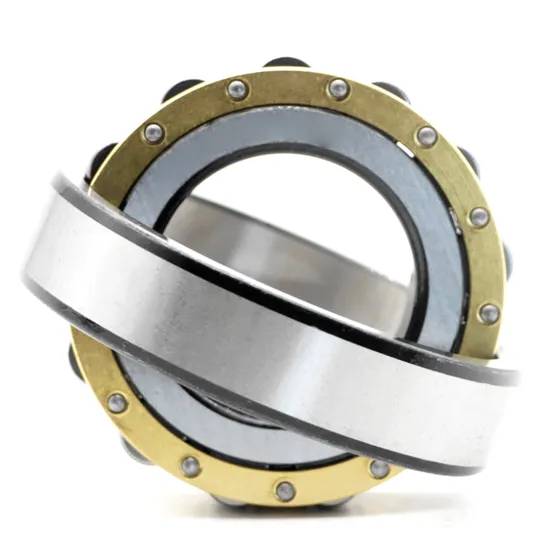

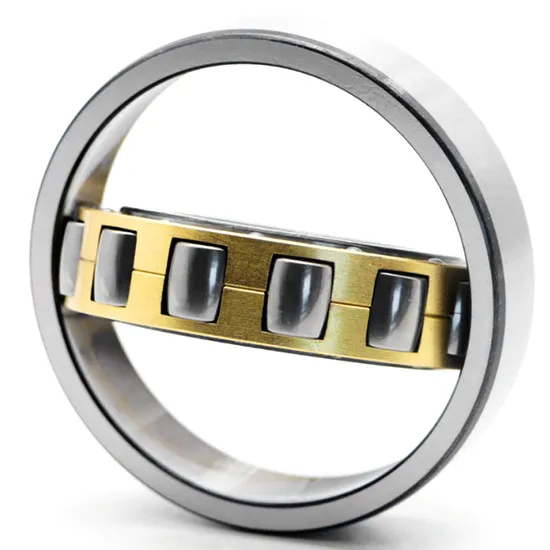

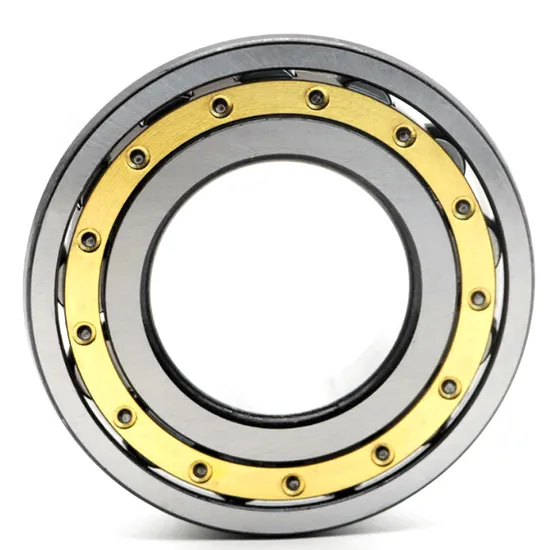

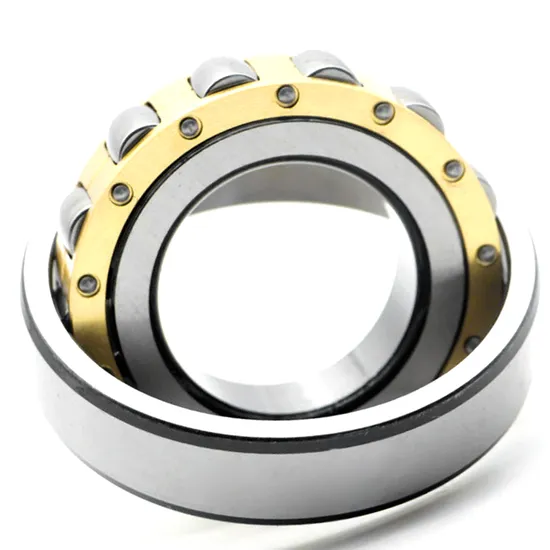

Cylindrical Roller Bearing NU2240 for High-Speed Machine Tool Spindles

Technical Specifications

Application Suitability

Why 35% of Spindle Bearing Failures Begin Before Installation — And Why the NU2240 Bearing Demands Engineering Validation

Industrial spindle failures in high-speed machine tools are rarely due to material fatigue alone: 35% originate from incorrect selection — mismatched clearance, inadequate dynamic load rating, or unsuitable cage design for thermal expansion and lubricant retention. A single unplanned spindle stoppage costs precision machining operations $22,000–$48,000/hour in lost throughput and rework. Most suppliers provide only dimensional interchange data — not application-specific validation under your actual speed-torque-temperature profile.

Engineered for Your Operating Conditions

This NU2240 bearing is not a generic radial replacement — it is an application-engineered solution for machine tool spindles operating at sustained speeds above 1 200 r/min under combined radial loads up to 180 kN and transient peaks exceeding 250 kN. Our 15+ SKF-certified engineers perform ISO 281 life calculations using your exact duty cycle, recommend optimal internal clearance (C3/C4), specify compatible SKF LGMT 2 or LGHP 2 grease fill volume, and verify interference fit tolerances per ISO 286-2 H7/j6. As an official SKF engineering partner, we apply the same technical protocol used by SKF’s Global Application Engineering Centre in Gothenburg — backed by ISO 9001 and IATF 16949 certified quality control.

Operating Environment and Performance Demands

High-speed machine tool spindles impose extreme demands: rapid thermal transients (ΔT > 60°C within 15 minutes), micro-vibration sensitivity (< 2.5 μm RMS vibration at 10 kHz), strict runout control (< 3 μm total indicator reading), and zero tolerance for lubricant starvation. The NU2240 bearing must maintain dimensional stability across temperature gradients while sustaining precise radial guidance without axial constraint — a requirement met only by its separable cylindrical roller design, optimized roller profile, and pressed steel cage geometry that minimizes centrifugal deformation at 1 800 r/min limiting speed. This is not a general-purpose cylindrical roller bearing; it is a precision radial bearing for machine tools engineered for repeatability under thermal drift and dynamic loading.

Inside the Engineering: What Makes This Bearing Perform

The NU2240’s 1 040 kN dynamic load rating (C) directly determines L₁₀ life under your calculated equivalent load — deviations of ±15% in applied load shift predicted life by over 40% per ISO 281. Its pressed steel cage provides superior rigidity and heat dissipation versus polyamide at sustained speeds >1 400 r/min, eliminating cage deformation-induced roller skidding. The open seal configuration enables controlled grease replenishment during maintenance windows while minimizing drag torque — critical for spindle acceleration response. Standard CN clearance is suitable for ambient operation; however, C3 clearance is mandatory when shaft thermal growth exceeds 0.08 mm — a condition verified via our free thermal expansion calculation service. Precision classes P5 and P4 reduce vibration amplitudes by 35–52% versus P0, directly lowering surface finish scatter in grinding applications per ISO 10816-3 vibration severity bands.

The True Cost of Bearing Failure

A counterfeit or incorrectly specified NU2240 bearing may cost 30% less upfront but delivers less than 25% of genuine SKF’s L₁₀ life — accelerating cage fracture, roller brinelling, and raceway spalling. In high-speed spindles, this leads to premature tool chatter, dimensional drift beyond ±0.005 mm, and scrapped workpieces costing $1,200–$8,500 each. Non-planed downtime averages $31,500/hour across Tier-1 automotive and aerospace machining lines. Worse: installation errors — such as improper induction heating or misaligned press-fit — cause 28% of early failures. Genuine SKF NU2240 bearings, correctly selected and installed with SKF LMH 2 lubricant and proper interference fits, deliver predictable Lₙₘ life (90% reliability, 10% failure probability) validated per ISO 281 Annex D. Total cost of ownership drops 22% over five years when factoring scrap, labor, energy, and downtime.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NU2240 bearing is supplied with SKF Certificate of Conformity (CoC), Material Test Report (EN 10204 3.1), Dimensional Inspection Report (per ISO 1132-1), and original SKF packaging featuring holographic anti-counterfeit label. Batch-level traceability allows verification through SKF’s official “Check Your SKF Product” portal. For orders exceeding 500 units, we arrange third-party SKP (SKF Production Audit) or on-site factory inspection upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your spindle’s performance begins with correct bearing specification — not with a purchase order. Send us your application parameters: radial and axial load spectra, rotational speed range (min/max/continuous), operating temperature profile, shaft/housing materials and tolerances, lubrication method (grease type/volume or oil flow rate), and any prior failure modes. Within 48 hours, our SKF-certified engineers will deliver a free technical assessment including ISO 281 life calculation, recommended clearance class, cage and lubricant specification, and dimensional compliance report. For orders ≥ $50,000, we supply test samples with full metrology and vibration validation — because every hour of unplanned downtime erodes margin, and the right decision starts with the first engineering dialogue.

Frequently Asked Questions
