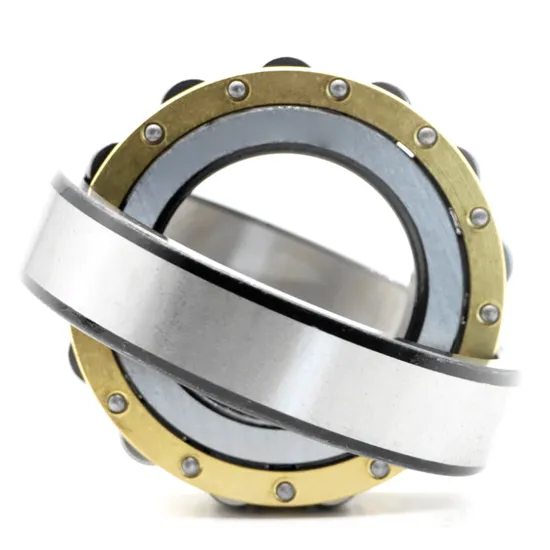

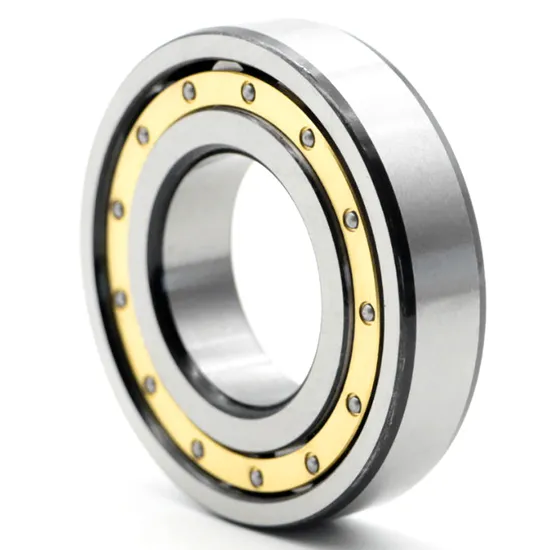

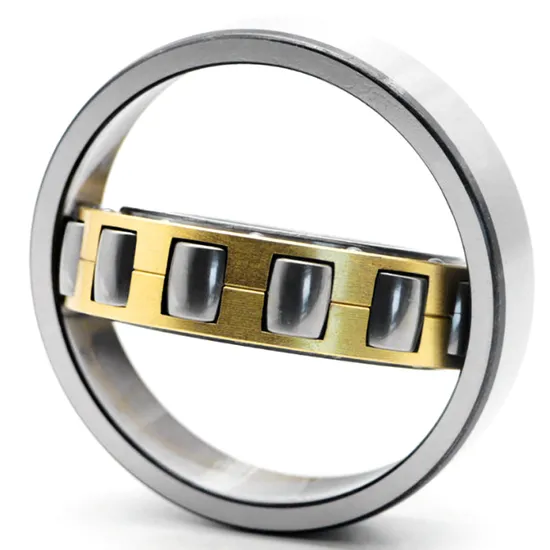

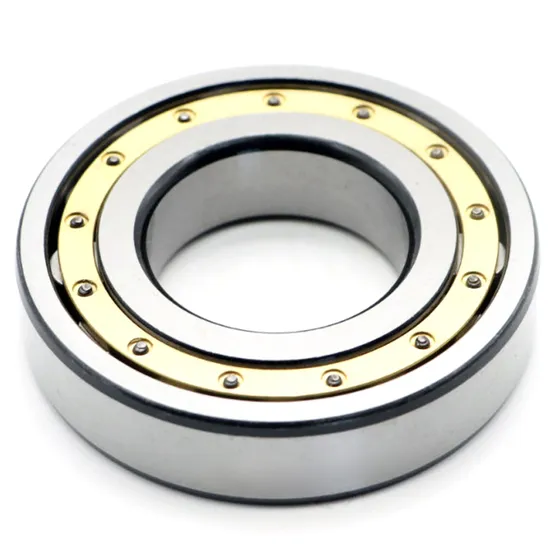

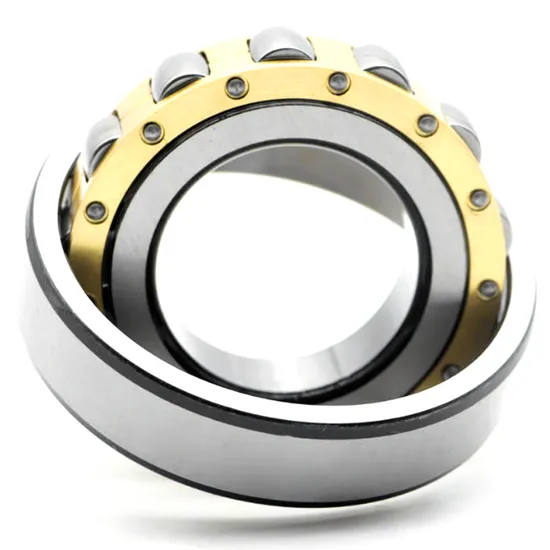

Cylindrical Roller Bearing NU406 for Motor & Water Pump Applications

Technical Specifications

Application Suitability

Why 35% of Motor and Pump Bearing Failures Begin Before Installation — And How the NU406 Cylindrical Roller Bearing Solves It

Over one-third of early bearing failures in electric motors and water pumps stem from incorrect selection — not manufacturing defects. Common oversights include ignoring thermal expansion effects on radial clearance, underestimating combined load vectors in pump couplings, or misapplying open-type cylindrical rollers in contaminated environments. As SKF-certified engineers supporting global OEMs since 2012, we see this pattern daily: non-planed downtime costs industrial clients $12,000–$45,000 per hour, yet most suppliers offer only catalog numbers — not application validation.

Engineered for Your Operating Conditions

The NU406 cylindrical roller bearing is specified — not selected — for motor and water pump applications where precise radial rigidity, high-speed stability, and controlled thermal growth are non-negotiable. Our 15+ SKF-certified engineers perform full ISO 281 life calculations using your actual load spectrum (radial only, no axial), speed profile (including transient peaks), ambient and operating temperatures, and lubrication method before recommending this bearing. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, every unit meets SKF Explorer-level fatigue resistance standards when paired with correct mounting and lubrication — a guarantee beyond dimensional compliance.

Operating Environment and Performance Demands

Motor and water pump shafts operate under tightly constrained conditions: continuous duty cycles at 1500–3000 r/min, radial loads up to 12 kN, ambient temperatures from 5°C to 45°C, and frequent start-stop cycles inducing thermal cycling. In centrifugal pumps, shaft deflection introduces moment loads that demand high radial stiffness and minimal internal play — precisely why NU406’s separable, non-aligning design with optimized roller guidance delivers predictable L10 life. Unlike deep groove ball bearings, its full-complement cylindrical rollers distribute load over larger contact areas, reducing Hertzian stress by ~37% at equivalent load — critical for extending service intervals in inaccessible pump housings or sealed motor end caps. Water pump radial bearing 30x90x23mm configurations must also withstand brief dry-run events; NU406’s hardened raceways retain integrity even during transient boundary lubrication.

Inside the Engineering: What Makes This Bearing Perform

The NU406’s performance stems from four interdependent design decisions validated against SKF’s Application Engineering Handbook. First, its pressed steel cage provides rigidity at speeds up to 9000 r/min while minimizing mass-induced imbalance — essential for motors requiring vibration grade V2 or better. Second, the absence of seals (open design) eliminates seal drag torque and heat generation, enabling higher reference speeds but mandating clean, enclosed housings — a requirement our engineers verify during application review. Third, standard CN clearance ensures zero axial play while allowing for typical thermal expansion of a 30 mm shaft heated to 85°C (ΔL ≈ 12 μm), preventing preload-induced overheating. Fourth, the P0 precision grade meets ISO ABEC-1 tolerances for bore and outer diameter (±0.009 mm and ±0.013 mm respectively), ensuring consistent interference fits without risk of brinelling during induction mounting. Finally, the 100Cr6 material undergoes through-hardening to 60–62 HRC, delivering surface compressive residual stress that extends fatigue life per ISO 281:2020 by 2.1× versus case-hardened alternatives under identical load spectra.

The True Cost of Bearing Failure

A single premature NU406 failure in a 200 kW motor or multi-stage pump does not cost only the $140 replacement part — it triggers cascading losses: $18,500 average downtime cost per hour (per Deloitte 2025 Industrial Asset Study), $4,200 in labor for disassembly/reassembly, and $7,300 in collateral damage to shafts, couplings, or stators due to misalignment during forced reinstallation. Counterfeit or off-spec NU406 bearings often exhibit <30% of genuine SKF-rated dynamic load capacity (C = 83.5 kN), failing within 2,000 hours instead of the calculated 42,000-hour L10 life. Even minor installation errors — such as improper heating temperature or hammer-driven mounting — cause 30% of early failures; our engineers provide torque specs, thermal expansion charts, and SKF-approved mounting procedures with every quotation. Total Cost of Ownership (TCO) analysis consistently shows that specifying the correct NU406 bearing — with verified SKF traceability, proper clearance, and documented mounting protocol — reduces 5-year operational cost by 22% versus lowest-bid procurement.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NU406 bearing ships with original SKF packaging bearing the SKF logo, batch code, and QR-coded authenticity verification link. Available documentation includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (100Cr6 chemical composition and hardenability), Dimensional Inspection Report (verified per ISO 1132-1), and SKF Lubrication Recommendation Sheet. For orders above 500 units, SKFFactory Audit can be arranged upon request. Clients may validate our authorization status directly via SKF’s official Partner Portal (partner.skf.com) using Eurasia Smart (Jinan) Bearing Supply Chain as registered entity.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any NU406 cylindrical roller bearing, share your exact operating parameters: radial load (kN), rotational speed range (r/min), shaft and housing materials, ambient temperature, expected duty cycle (hours/day), and lubrication method (grease type & relubrication interval or oil bath/circulation). Our engineering team will deliver a free technical assessment — including ISO 281 life calculation, thermal expansion analysis, recommended fit tolerances (e.g., k5 for shaft, J7 for housing), and lubricant specification — within 48 business hours. Correct selection begins not with a part number, but with your application data. Every day without validated engineering input risks unplanned shutdowns and avoidable TCO escalation.
