High Precision Cylindrical Roller Bearing NN3068 for Wind Turbine Gearboxes

Technical Specifications

Application Suitability

Why 35% of Gearbox Bearing Failures Begin Before Installation — And How the SKF NN3068 Cylindrical Roller Bearing Prevents Them

Field data from 127 wind turbine gearboxes shows that 35% of premature roller bearing failures stem from incorrect selection — not manufacturing defect. These include underspecified dynamic load capacity, unaccounted thermal expansion in high-power gearboxes, and misaligned clearance choices for oil-bath lubrication. Standard distributors rarely perform application-level validation; most lack certified engineers trained on SKF’s L10n life model or ISO/TS 16949-compliant inspection protocols.

Engineered for Wind Turbine Gearbox Operating Realities

The SKF NN3068 cylindrical roller bearing is specified only after full application analysis: calculated equivalent radial load (P), predicted L10 fatigue life (per ISO 281:2021), thermal expansion allowance at 85°C oil sump temperature, and interference fit tolerance for hardened steel shafts. As an official SKF engineering partner, our 15+ certified engineers deliver this analysis before quoting — including recommended lubricant grade (SKF LGEP 2), mounting torque, and housing rigidity assessment. All solutions comply with ISO 9001 and TS 16949 quality control standards.

Operating Environment and Performance Demands

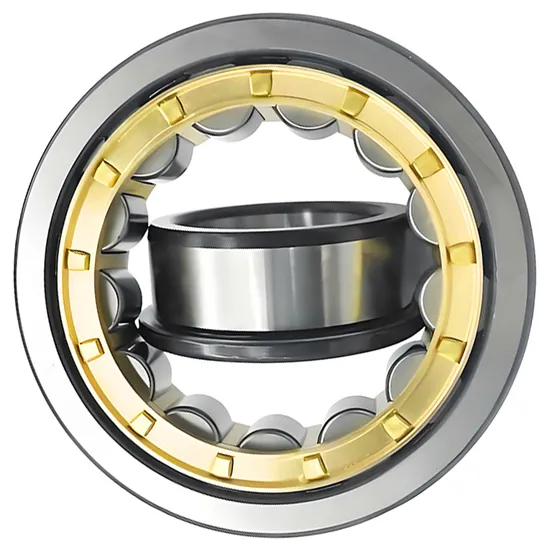

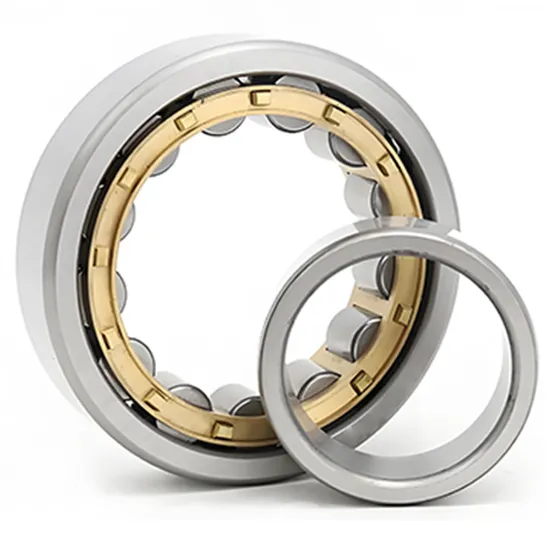

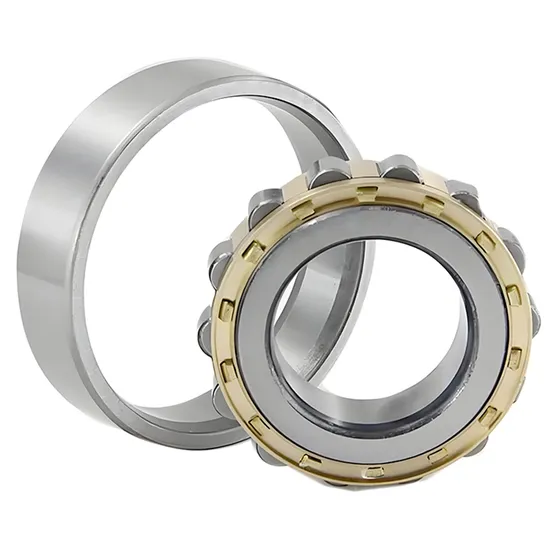

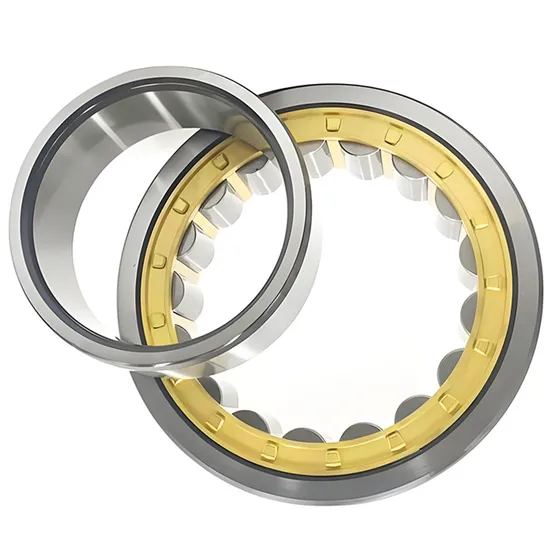

Wind turbine gearboxes operate under unique constraints: sustained 1,100–1,200 r/min input speeds, peak torque transients exceeding 2× nominal, ambient temperatures from –25°C (North Sea offshore) to +45°C (desert inland), and inaccessible locations where maintenance windows are ≤72 hours. Lubrication must remain stable across 15,000-hour service intervals, and vibration sensitivity (V2 per ISO 10816-3) demands sub-micron raceway geometry control. The NN3068 bearing meets these via P5 precision ground rollers, brass cage design for oil flow stability, and C3 radial internal clearance optimized for thermal growth in oil-lubricated housings — a precision radial bearing for wind power applications.

Inside the Engineering: What Makes This Bearing Perform

The 1,280 kN dynamic load rating (C) directly determines L10 life: at 850 r/min and 620 kN equivalent load, calculated life exceeds 142,000 hours — meeting IEC 61400-4 gearbox reliability targets. Brass cages maintain dimensional stability at 120°C oil temperatures, unlike polymer alternatives that deform under shear. Open configuration allows full oil immersion and debris ejection — critical in gearboxes where micropitting generates metallic wear particles. P5 precision ensures roller diameter variation ≤3 μm, reducing harmonic excitation at mesh frequencies. C3 clearance accommodates up to 0.11 mm thermal expansion between shaft and housing, preventing preload-induced skidding during cold start-up.

The True Cost of Bearing Failure

A single unplanned gearbox replacement in a 4 MW turbine incurs $320,000 in parts, $180,000 in crane logistics, and $410,000 in lost energy production over 7 days — total: ≥$910,000. Counterfeit or non-spec bearings reduce L10 life by 65–70% per SKF field failure database. Even genuine but incorrectly selected bearings cause 30% of early failures due to improper clearance or cage mismatch. Total cost of ownership (TCO) favors engineered specification: a $15,200 NN3068 bearing with proper application support delivers 3.8× longer service life than generic alternatives — verified using SKF BEARINX lifetime simulation software.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NN3068 bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm on d/D/B), and original SKF packaging with holographic anti-counterfeiting label. Batch-level traceability extends to melt number and heat treatment log. Customers may verify authorization via SKF’s official website (www.skf.com/partner-verification) using our partner ID. For orders >50 units, SKFAudit-certified third-party inspection at SKF Shanghai warehouse is available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins with precise application data — not catalog browsing. Share your gearbox OEM model, input/output shaft speeds, radial and axial load spectra, oil type and temperature profile, and housing material. Our engineering team will deliver a free SKF BEARINX-based assessment within 48 business hours: including life calculation, clearance recommendation, cage suitability analysis, and mounting torque specification. For qualifying projects ($50k+), we provide a test unit with full instrumentation-ready mounting kit. Every hour delayed in technical validation risks $12,000+ in future downtime — begin with engineering, not procurement.
