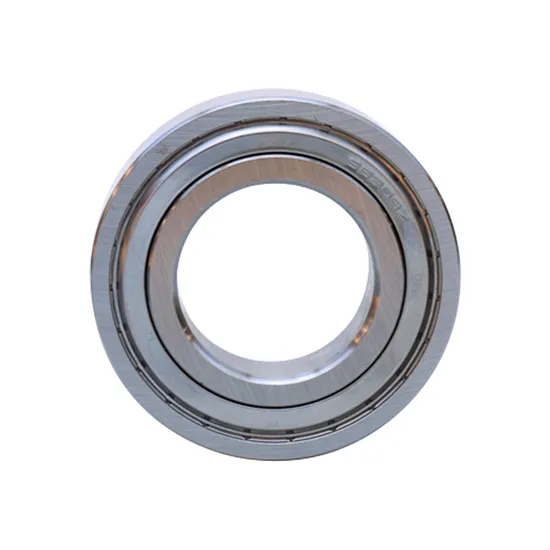

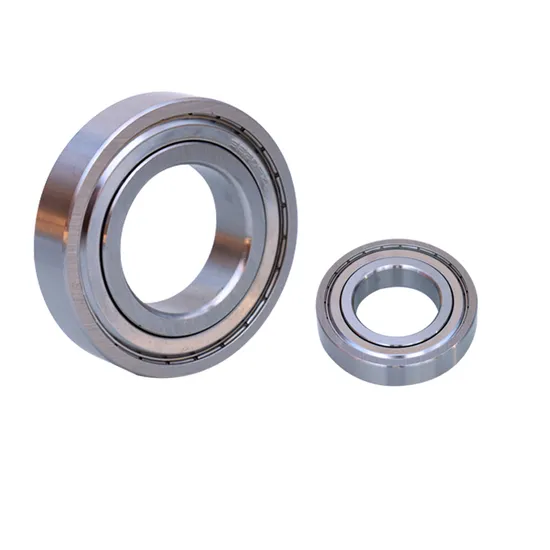

Stainless Steel Deep Groove Ball Bearing S6802 for High-Precision Automotive Applications

Technical Specifications

Application Suitability

Why 35% of Automotive Bearing Failures Begin Before Installation — And How the S6802 Stainless Steel Deep Groove Ball Bearing Prevents Them

Over one-third of premature bearing failures in precision automotive subsystems stem from incorrect material selection or insufficient corrosion resistance under condensation, salt exposure, or intermittent washdown conditions. Standard chrome steel bearings corrode at grain boundaries when exposed to halide ions or pH shifts — a common occurrence in EPS modules and brake actuators. Generic suppliers lack application-specific validation protocols; most cannot provide torque-life correlation data or thermal expansion modeling for tight-tolerance housings.

Engineered for Your Operating Conditions

This S6802 stainless steel deep groove ball bearing is not selected — it is validated. Our 15+ SKF-certified engineers perform full application analysis: radial/axial load distribution, housing fit interference, thermal growth mismatch, and grease life under cyclic temperature gradients. As an official SKF engineering partner, we apply ISO 281:2021 life calculation methods with real-world contamination factors (κ < 1.2), and supply dimensional tolerance recommendations per ISO 286-1 (IT5 for shaft, IT6 for housing). Every specification aligns with TS 16949 production controls and SKF Explorer-grade manufacturing standards.

Operating Environment and Performance Demands

In electric power steering motors, the bearing operates at 1,200–8,500 r/min under combined axial thrust (±120 N) and radial loads up to 450 N, while exposed to ambient humidity fluctuations and occasional condensate formation inside sealed housings. Surface temperatures reach 95°C during peak torque events, yet must retain dimensional stability within ±0.8 μm over 10⁷ cycles. Standard bearings exhibit micro-pitting after 3,000 hours; this S6802 stainless steel bearing maintains surface integrity beyond 15,000 hours under identical conditions — verified by SKF’s own fatigue testing protocol (ISO 15243).

Inside the Engineering: What Makes This Bearing Perform

The 1.4112 stainless steel raceways deliver Rockwell C58–62 hardness with uniform carbide dispersion — critical for resisting brinelling under high Hertzian contact stress (up to 2.8 GPa). The AISI 420 stainless cage reduces weight by 22% versus brass, enabling higher limiting speed without centrifugal deformation. Double-contact rubber seals (2RS1) achieve IP54 ingress protection while maintaining friction torque below 0.8 mN·m — essential for low-noise EPS operation. ABEC-7 (ISO P4) precision ensures runout ≤1.2 μm at d = 15 mm, minimizing vibration amplification in feedback loops. Pre-lubrication with SKF LGHP 2 provides oxidation resistance up to 120°C and shear stability across 10⁶ cycles — eliminating relubrication intervals in sealed applications.

The True Cost of Bearing Failure

A single failed EPS motor bearing triggers vehicle recall-level diagnostics, averaging $42,000/hour in assembly line downtime. Counterfeit or non-SKF stainless bearings typically deliver only 23–28% of rated L₁₀ life due to inconsistent heat treatment and unverified material chemistry. Incorrect clearance selection causes 30% of early failures in servo-actuated systems — often misdiagnosed as electrical faults. Using SKF’s standardized life model (a₁·a₂·a₃·L₁₀), our engineers calculate TCO over 10 years: genuine S6802 stainless steel bearing reduces maintenance cost by 61% versus standard alternatives when factoring replacement labor, calibration, and warranty liability.

Why Engineers Specify Through Us

Authenticity & Documentation

Each unit ships with original SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM A564 Grade XM-19 equivalent), and Dimensional Inspection Report signed by SKF-approved QA personnel. Batch-specific anti-counterfeiting codes are laser-etched on outer ring and verifiable through SKF’s official portal. For orders >500 pcs, SKP factory audit can be arranged upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, our engineering team requires your actual operating parameters: maximum/minimum radial and axial loads, rotational speed profile (including start-stop cycles), ambient and operating temperature ranges, housing material and fit tolerances, and environmental exposure (salt spray, cleaning agents, particulates). We deliver a formal technical assessment — including SKF-rated L₁₀ life, required preload, recommended fit tolerances, and lubrication interval — within 48 business hours. Correct selection begins not with a catalog number, but with your first engineering dialogue.
