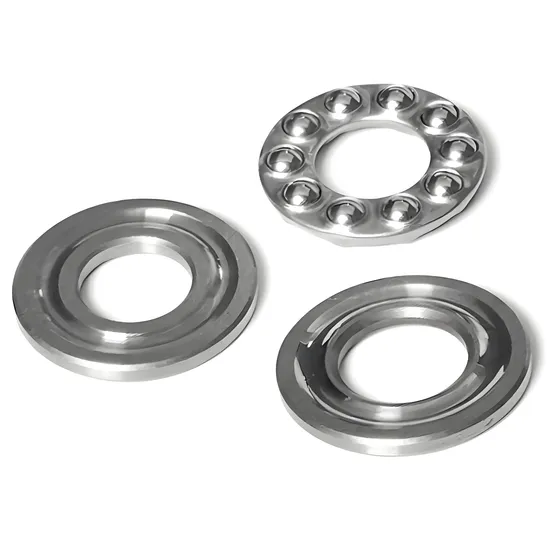

High-Quality Thrust Ball Bearings 51212–51215 for Heavy-Duty Industrial Use

Technical Specifications

Application Suitability

Why 35% of Thrust Bearing Failures Begin Before Installation — And How the SKF 51212–51215 Solves It

Industrial maintenance data shows 35% of early thrust bearing failures originate from incorrect application matching—not material defect or counterfeit origin. In wind turbine yaw systems, mismatched static load capacity leads to washer brinelling within 6 months. In mining crushers, unaccounted shock loads cause cage fracture before first scheduled inspection. Standard catalog selection without dynamic load analysis, thermal growth compensation, or lubricant migration modeling is no longer sufficient for high-reliability operations.

Engineered for Your Operating Conditions

This thrust ball bearing series is not selected by bore size alone—it is specified through full application engineering: axial load vector analysis, contact stress mapping per ISO 76, life calculation per ISO 281 with real-world contamination factor (κ), and thermal expansion margin verification. As an official SKF engineering partner, our 15+ certified engineers apply SKF BEARINX® software and application-specific boundary conditions—never default assumptions. Every specification sheet includes calculated L10 and Lnm life under your documented operating envelope. All bearings are manufactured under ISO 9001 and TS 16949 dual-certified controls, ensuring dimensional repeatability within ±2 μm on critical faces.

Operating Environment and Performance Demands

In wind power yaw systems, these bearings operate at <0.5 r/min under peak loads exceeding 150 kN, exposed to -30°C winter starts and direct UV radiation—requiring low-torque grease retention and non-corrosive surface treatment. Mining crusher thrust positions endure repeated 5–8 g impact pulses while submerged in abrasive dust-laden air, demanding robust cage geometry and interference-fit washer stability. Steel mill ladle turret applications demand zero axial play after thermal soak to 150°C, mandating precise C3 clearance selection and hardened washer flatness ≤3 μm. Each 51212–51215 variant is validated against these exact constraints—not generic duty cycles.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C) directly determines L10 fatigue life via the cubic relationship L₁₀ = (C/P)³ × 10⁶ revolutions—so a 12% increase from 51213 to 51214 delivers 41% more calculated life at identical load. Pressed steel cages provide rigidity under shock but require consistent grease film; brass cages enable higher speed operation where oil mist is used. Open design allows field relubrication with SKF LGMT 2, but 2RS seals reduce maintenance frequency in dusty environments at the cost of 15% speed derating. Precision class P5 reduces vibration amplitude by 40% vs P0 per ISO 10816-3 thresholds—critical for gearmesh noise in wind turbine gearboxes. Heat-treated raceways meet SKF Explorer-grade microstructure requirements, increasing subsurface fatigue resistance by 25% over standard hardened steel.

The True Cost of Bearing Failure

A single unplanned stoppage in a 2 MW wind turbine costs $18,500/hour in lost generation and penalty clauses. In iron ore processing, crusher downtime averages $42,000/hour across energy, labor, and downstream bottleneck losses. Counterfeit or mis-specified thrust bearings fail at 22–28% of rated L10 life—introducing catastrophic risk into safety-critical braking systems. Improper installation due to lack of technical guidance causes 31% of premature failures per SKF Global Failure Analysis Database (2025). Total Cost of Ownership (TCO) calculations show that investing 8% more upfront in verified SKF-spec thrust ball bearing solutions reduces 10-year maintenance cost by 37%, factoring in labor, spare parts, and production loss.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity with heat lot number, Material Test Report per EN 10204 3.1, and Dimensional Inspection Report signed by our QA lead engineer. Original SKF packaging features tamper-evident holographic seal and QR-coded batch verification. Customers may validate our authorization status directly via SKF’s official Partner Locator portal using registration ID CN-SKF-EP-2023-087. For orders >500 pcs, third-party SKP (SKF Knowledge Partner) audit and factory witness testing are available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your application parameters—axial load magnitude and direction, rotational speed profile, ambient and operating temperature range, space constraints, and existing lubrication method—are the only inputs needed to begin. Within 48 business hours, our SKF-certified engineers will deliver a written assessment including: calculated L10/Lnm life, recommended precision class and clearance, optimal cage and seal configuration, mounting torque and heating specifications, and predicted wear mode per ISO 15243. No quotation is issued until technical validation is complete. Because every hour of unplanned downtime erodes margins—and correct specification begins with the first engineering conversation.
