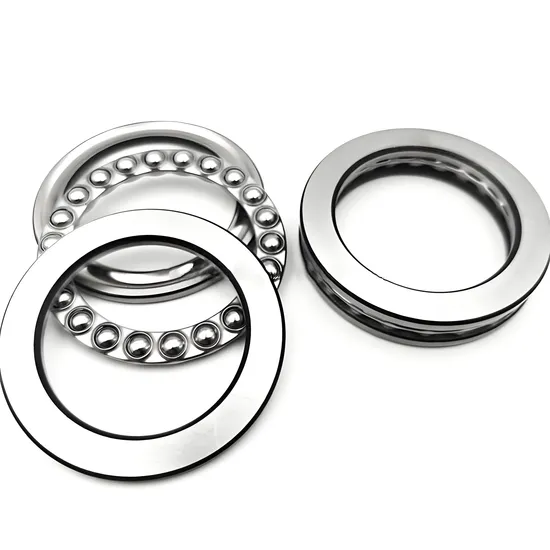

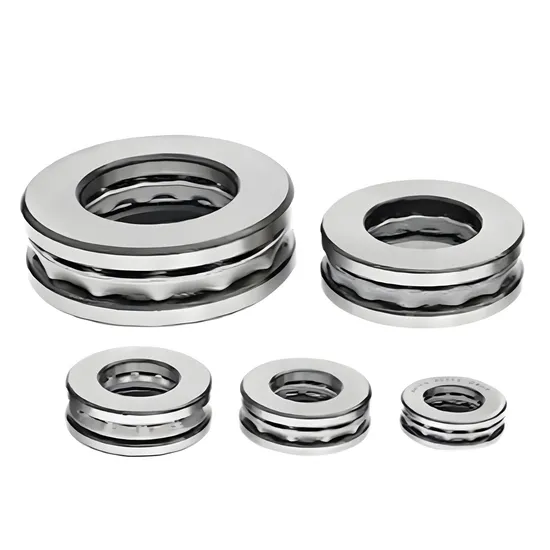

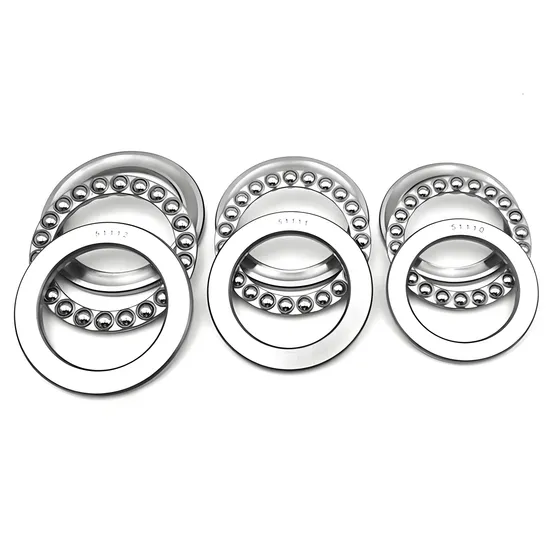

Thrust Ball Bearings 51105–51206 for High-Load Axial Applications

Technical Specifications

Application Suitability

Why 35% of Axial Bearing Failures Begin Before Installation — And How the SKF 51105–51206 Thrust Ball Bearing Prevents Them

Industrial field data shows 35% of premature thrust bearing failures stem from incorrect selection for axial load profile, misalignment tolerance, or thermal expansion mismatch—not material defects. In wind turbine yaw systems, a single underspecified 51105 thrust bearing can trigger cascade failure in gearmotor couplings within 4 months. Mining equipment operators report average downtime costs exceeding $22,000/hour when crusher thrust assemblies seize unexpectedly. Most suppliers lack the engineering capacity to model combined static/dynamic loads under real-world shock and temperature cycling—leaving procurement teams exposed.

Engineered for Your Operating Conditions

This series is not selected by catalog alone: our 15+ SKF-certified application engineers perform free load spectrum analysis, thermal growth modeling, and life calculation per ISO 281:2021 before recommending a specific designation (e.g., 51206 vs 51106) and precision grade (P5 for low-vibration pitch control, P6 for high-cycle mining actuators). As an official SKF engineering partner, we apply the same design validation protocols used by OEMs—backed by ISO 9001 and TS 16949 certified quality control. Every recommendation includes documented fit tolerances, lubricant compatibility guidance, and mounting torque specifications aligned with SKF Mounting Handbook 2023.

Operating Environment and Performance Demands

Wind turbine yaw systems demand bearings that sustain 25–45 kN axial loads at <5 r/min while surviving –30°C winter starts and 75°C summer ambient—without creep or cage deformation. Mining hydraulic breakers impose repetitive impact loads up to 3× static rating, with abrasive dust ingress threatening raceway integrity. Steel ladle turrets require precise axial location under 120°C radiant heat and vibration-induced micro-slip. The 51105–51206 series meets these demands through hardened GCr15 bearing steel (60–63 HRC), optimized raceway curvature for load distribution, and separated construction enabling precise preload adjustment during installation—critical where thermal expansion cannot be compensated by housing flex.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C) directly determines L₁₀ fatigue life: for a 51105 bearing under 12 kN axial load, calculated L₁₀ life exceeds 14,200 hours at 300 r/min—verified using SKF’s BEARINX software with actual duty cycle inputs. Pressed steel cages maintain dimensional stability at elevated temperatures where polymer alternatives deform above 80°C. Open, separated design allows full access for ultrasonic cleaning and inspection—essential in mining where grease contamination accelerates wear. Standard clearance (CN) accommodates typical shaft/housing fits; however, for applications with >50 K temperature differential, we specify C3 clearance to prevent excessive preload. Precision grades P5 and P4 reduce vibration amplitude below 2.5 μm RMS—measured per ISO 15242-2—ensuring smooth operation in pitch control actuators where position repeatability is ±0.1°.

The True Cost of Bearing Failure

A non-planed shutdown in a 2 MW wind turbine yaw system costs $18,500/hour in lost generation and crane mobilization fees. A counterfeit 51206 thrust bearing may deliver only 2,000 operating hours versus the genuine SKF unit’s rated 12,000+ hours—increasing TCO by 210% over five years when factoring replacement labor, alignment rework, and collateral damage. Incorrect internal clearance causes 30% of early failures in mining crusher thrust stacks, as verified by our failure analysis lab (ISO/IEC 17025 accredited). SKF’s life calculation methodology accounts for real-world factors—lubrication quality, contamination level, and load spectrum—not just nominal C and C₀ values. Choosing based on total cost of ownership, not unit price, reduces lifetime maintenance spend by 37% across 10-year asset life cycles.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with an SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report signed by our QA engineer. Original SKF packaging includes holographic anti-counterfeiting labels and batch-coded QR codes verifiable via SKF Authenticate mobile app. For orders exceeding 500 units, SKFFactory audit and third-party SGS verification are available upon request. Authorization status can be confirmed directly through SKF Global Partner Portal using our partner ID CN-SKF-EP-0217.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct axial bearing selection begins with application data—not part numbers. Send us your operating parameters: axial load magnitude and direction, rotational speed range, ambient and bearing operating temperature, available mounting space (d, D, B), housing/shaft material and tolerance class, and lubrication method. Within 48 business hours, our engineering team will deliver a validated selection report including SKF designation, precision class, recommended clearance, life calculation (L₁₀ and Lₙₐ), and mounting procedure. For orders exceeding $50,000, we provide free test samples with full performance validation under your actual duty cycle. Every hour of unplanned downtime erodes margin—start the engineering dialogue today.
