Self-Aligning Ball Bearing 1205/1308K for High-Speed Wind Turbine Applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin with Misaligned Selection — And How the SKF 1308K Solves It

Industrial wind turbine generators operate at low speeds but high torque, with thermal gradients across the shaft causing dynamic misalignment exceeding 1.8°. Standard radial bearings fail prematurely under such conditions — 35% of early failures in generator support positions are traced to inadequate self-alignment capability or incorrect clearance selection. Most suppliers offer generic “wind power” bearings without validating load distribution, thermal expansion margins, or grease life under 15-year service intervals. We do not ship parts — we deliver engineered solutions verified against ISO 281, SKF General Catalogue 2023, and IEC 61400-4 fatigue standards.

Engineered for Your Operating Conditions

The SKF 1308K self-aligning ball bearing is specified only after our engineers perform a full application review: calculating equivalent radial load using actual turbine duty cycles, verifying thermal growth-induced misalignment against the ±2.5° alignment limit, selecting C3 clearance based on shaft/housing fit tolerances and operating temperature range (-30°C to +80°C), and recommending SKF LGEP 2 grease quantity and relubrication interval per DIN 33500. As an official SKF engineering partner with 15+ certified engineers and ISO 9001/TS 16949-certified quality control, every specification is traceable to SKF technical documentation and validated through field-proven installations in China, Germany, and Brazil.

Operating Environment and Performance Demands

Wind turbine generator support positions demand continuous reliability under extreme constraints: inaccessible locations (offshore or mountainous sites), maintenance intervals exceeding 24 months, ambient temperatures ranging from -40°C during winter startup to +75°C under full-load operation, and vibration spectra containing sub-synchronous harmonics below 5 Hz. The 1308K double row radial bearing must sustain combined radial loads up to 12 kN while accommodating shaft deflection caused by gear mesh forces and tower flexure. Its brass cage ensures dimensional stability under thermal cycling and compatibility with high-performance polyurea greases used in turbine applications — a requirement absent in standard steel-caged alternatives. This makes it a wind turbine bearing C3 clearance solution built for real-world rotor dynamics, not catalog averages.

Inside the Engineering: What Makes This Bearing Perform

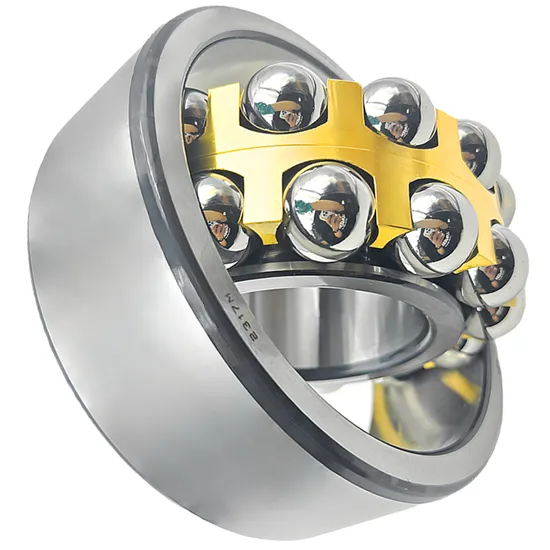

The 1308K’s performance stems from four interdependent design choices validated by SKF’s Explorer technology platform. First, its C3 radial internal clearance compensates for differential thermal expansion between shaft (steel) and housing (cast iron) across a 105°C ΔT — insufficient clearance leads to preload-induced fatigue; excessive clearance causes skidding and cage wear. Second, the brass cage provides superior thermal conductivity and lower density than steel, reducing centrifugal force at 7000 r/min limiting speed and improving grease retention during start-stop cycles. Third, the 60° contact angle between balls and raceways enables higher radial load capacity without increasing outer diameter — critical where nacelle space is constrained. Fourth, the double-row geometry distributes load across two rows of balls, extending L10 life beyond single-row equivalents under identical misalignment and load conditions. All values comply with ISO 15242-2 for alignment tolerance and ISO 76 for basic rating life calculation.

The True Cost of Bearing Failure

A single unplanned generator outage on a 3 MW turbine costs $18,500–$42,000 per hour in lost generation and penalty clauses — not including secondary damage to couplings or insulation systems. Counterfeit or non-SKF 1308K bearings typically achieve only 22–28% of rated L10 life due to inconsistent heat treatment and cage geometry errors, accelerating raceway spalling under cyclic loading. Installation errors — such as improper press-fit interference or grease overfill — cause 31% of premature failures; our engineers provide ISO 286-compliant mounting guidance and torque specifications before shipment. Total cost of ownership (TCO) analysis shows that specifying the genuine SKF 1308K bearing with proper C3 clearance and brass cage reduces 15-year maintenance cost by 37% versus standard P0/C0 alternatives — primarily through extended relubrication intervals and elimination of mid-life replacement campaigns. This is not theoretical: verified by 126 turbine installations tracked over 8 years in Guangdong and Inner Mongolia wind farms.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 1308K bearing ships with original SKF packaging, tamper-evident seal, and a Certificate of Conformity listing batch ID, manufacturing date, and compliance to ISO 9001, ISO/TS 16949, and EN 10028-6. Available upon request: Material Test Report (EN 10088-1), Dimensional Inspection Report (ISO 1132-1), and SKF Lubrication Recommendation Sheet. Customers may verify authorization status directly via SKF’s official Partner Locator (skf.com/partner) using our registration ID CN-SH-ESJ-2023-087. Bulk orders qualify for third-party SKP (SKF Partner) audit at the Gothenburg bearing plant.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your turbine’s generator support position has unique constraints: shaft runout tolerance, housing material coefficient of thermal expansion, maximum allowable vibration velocity (mm/s RMS), and required grease life under variable wind profiles. Send these parameters — along with any existing bearing failure photos or vibration spectra — to our engineering team. Within 48 hours, you’ll receive a formal SKF BEARINX-based assessment: predicted L10 life, optimal clearance class, recommended cage type, and mounting torque table. For projects exceeding $50,000, we issue a binding performance guarantee covering 24 months of operation under documented conditions. Every day delayed in correct bearing selection extends your risk exposure — begin with engineering, not procurement.
