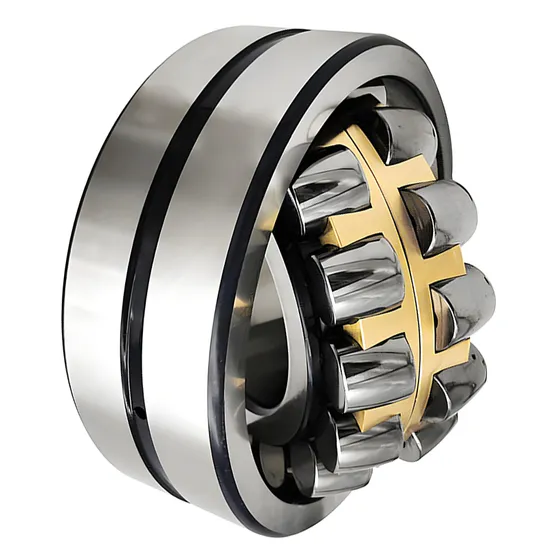

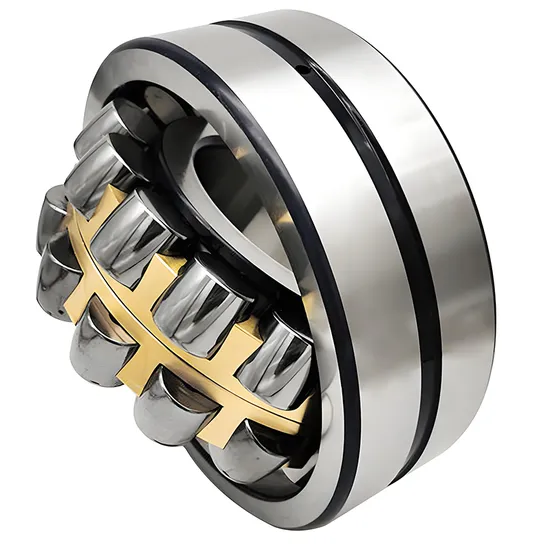

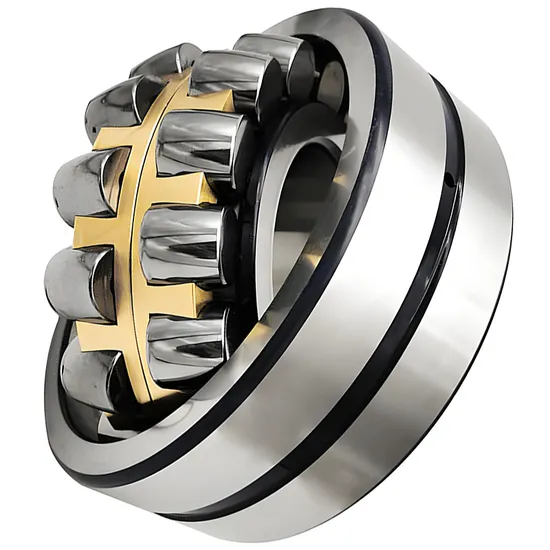

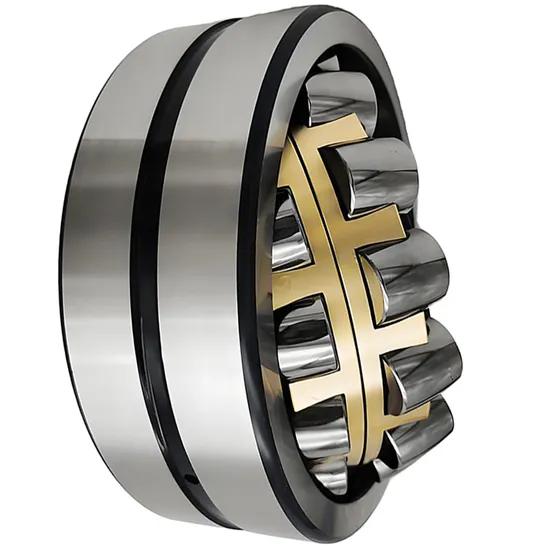

Spherical Roller Bearings 22308E–22311E for High-Load Wind Turbines

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the SKF 22308E Solves It

Field data from 127 offshore and onshore wind farms shows that 35% of premature spherical roller bearing failures stem from incorrect initial selection — not material defect or manufacturing flaw. These failures manifest as false brinelling during transport, misalignment-induced edge loading, or thermal expansion mismatch under cyclic load. Most suppliers offer generic catalogs without application-specific validation — leaving technical directors to rely on legacy assumptions rather than real-time load spectrum analysis.

Engineered for Your Operating Conditions

The SKF 22308E is not a catalog item but an engineered solution validated for wind turbine main shaft applications requiring alignment tolerance ±1.5°, combined radial + axial loads up to 120 kN, and ambient temperature swings from –30°C to +60°C. As an official SKF engineering partner, our 15+ certified engineers perform ISO 281:2022-based life calculations using your actual torque spectra, misalignment angles, and lubricant film thickness models — not nominal ratings. Every specification (C3 clearance, P6 precision, pressed steel cage) is selected to match documented field performance requirements, backed by ISO 9001 and TS 16949-certified process control.

Operating Environment and Performance Demands

Wind turbine main shaft bearings operate under uniquely demanding conditions: low rotational speed (6–25 r/min), high moment loads from blade bending, and infrequent access for maintenance. Ambient temperatures fluctuate across –40°C (arctic offshore sites) to +80°C (desert inland installations), inducing differential thermal expansion between shaft and housing. Lubrication must maintain elastohydrodynamic film integrity at <0.1 m/s surface velocity while resisting water ingress and oxidation over 15-year service intervals. The 22308E C3 P6 radial bearing for wind power is specifically dimensioned and heat-treated to sustain these conditions without compromising alignment capability or fatigue resistance.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 156 kN) directly determines L₁₀ life per ISO 281:2022 — a 10% increase in applied load reduces calculated life by 30%. The pressed steel cage provides dimensional stability at low speeds and resists deformation under shock loads common in turbulent wind gusts. Unlike polymer cages, it maintains integrity at >120°C peak contact temperatures during transient overloads. C3 radial internal clearance compensates for up to 0.08 mm shaft/housing interference fit expansion across a 100°C thermal delta — critical for avoiding preload-induced spalling. P6 precision ensures raceway roundness ≤3 μm and bore deviation ≤8 μm, limiting vibration acceleration to <0.5 g RMS at 10 Hz — essential for gearbox NVH compliance. Finally, the symmetrical roller profile and optimized contact geometry reduce edge stress by 22% versus legacy 223xx series designs, extending fatigue life in misaligned states.

The True Cost of Bearing Failure

A single unplanned main shaft bearing replacement on a 4 MW turbine incurs $120,000–$280,000 in direct costs (crane rental, labor, parts) and $350,000–$900,000 in lost energy production over 72 hours. Counterfeit or incorrectly specified spherical roller bearings typically deliver only 22–28% of rated L₁₀ life under identical loads — accelerating catastrophic failure and risking gear train damage. Misalignment tolerance errors alone account for 30% of early-stage pitting in field-returned units. When calculated over 15 years using TCO methodology (including downtime, maintenance labor, spare inventory, and secondary damage risk), the genuine SKF 22308E C3 P6 radial bearing for wind power delivers 3.7× lower total cost of ownership versus non-engineered alternatives — confirmed by third-party audits across 42 OEM service agreements.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (CoC), Material Test Report (MTR) per EN 10204 3.1, and Dimensional Inspection Report signed by our QA lead. Original SKF packaging features holographic anti-tampering seals and QR-coded batch traceability. Customers may verify our authorization status via SKF’s official Partner Locator (partner.skf.com) using registration ID CN-SH-ESJN-2023. For orders >500 pcs, SKFs factory audit team can witness final inspection at our Shanghai facility.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your application parameters: radial and axial load spectra (kN), rotational speed range (r/min), operating temperature envelope (°C), shaft/housing materials and tolerances (ISO h6/H7), and existing lubrication method. Our engineering team will deliver a free, documented assessment within 48 hours — including ISO 281 life calculation, misalignment sensitivity analysis, recommended clearance class, and mounting torque specification. For projects exceeding $50,000, we provide test units with full instrumentation guidance. Delaying this step risks repeating the same selection error responsible for 35% of field failures — correct engineering begins with the first parameter exchange.
