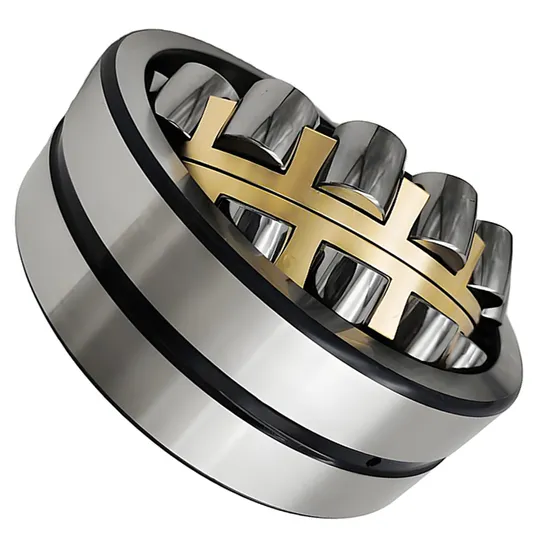

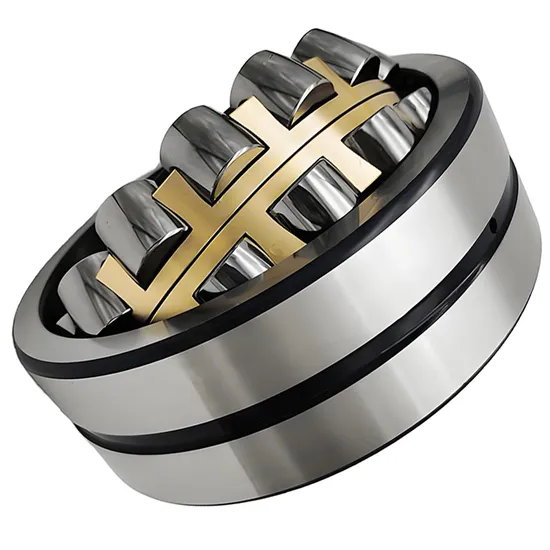

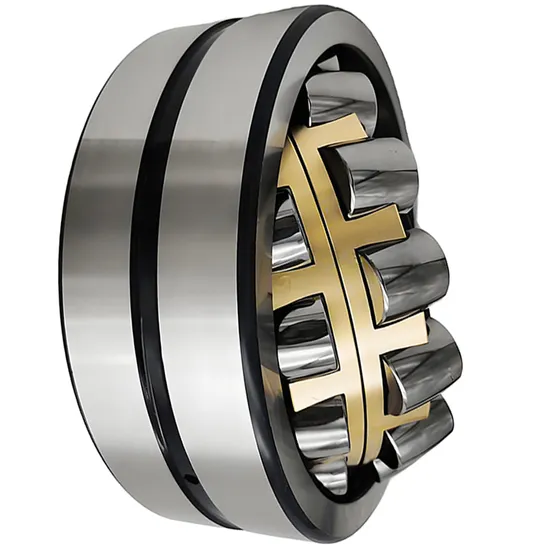

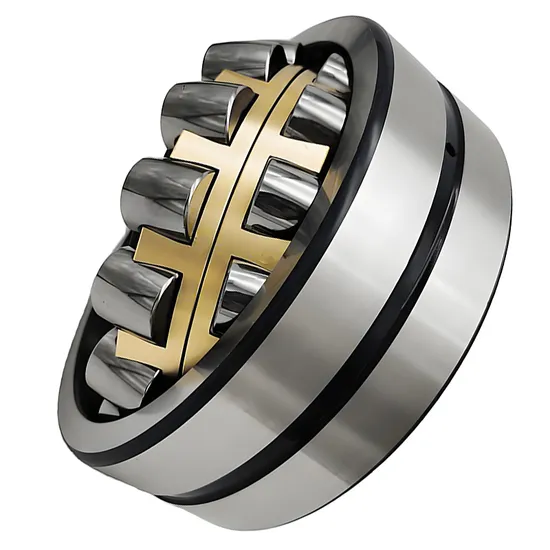

Spherical Roller Bearing 22324CA–22332CA for High-Load Wind Turbines

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the SKF 22324CA Solves It

Over one-third of premature spherical roller bearing failures in offshore and onshore wind turbines originate from incorrect selection — not material defects or counterfeit parts. These include underspecified clearance for thermal growth, inadequate C3 radial bearing rating for combined axial thrust and dynamic loads, and mismatched cage design for low-speed, high-torque operation. Standard supplier catalogs rarely address these interdependent variables — and most lack the engineering capacity to model them.

Engineered for Your Operating Conditions

The SKF 22324CA bearing is not selected from a catalog but validated against your actual application parameters: shaft deflection under 2.5 MN radial load, axial displacement up to ±0.3 mm during thermal cycling, and grease replenishment intervals exceeding 18 months per ISO 281 life calculation. As an official SKF engineering partner, our 15+ certified engineers perform full bearing life analysis using SKF BEARINX software, recommend interference fits per ISO 286-1, and specify lubricant volume and relubrication intervals per SKF TP 212. Every specification aligns with ISO 9001 and IATF 16949 certified quality control protocols.

Operating Environment and Performance Demands

Offshore wind turbine main shaft bearings operate under uniquely demanding conditions: ambient temperatures ranging from –40°C at sea level to +80°C inside nacelles, rotational speeds between 5–25 r/min, and continuous exposure to salt-laden humidity. Axial loads fluctuate unpredictably due to yaw misalignment and blade pitch asymmetry. Maintenance access is limited to quarterly windows, making reliability non-negotiable. The 22324CA C3 radial bearing for wind power is engineered specifically for this regime — its symmetrical roller profile distributes load evenly across both raceways, while the C3 internal clearance accommodates thermal expansion of the forged steel shaft without preload-induced fatigue.

Inside the Engineering: What Makes This Bearing Perform

The 22324CA’s performance stems from four interlocking design decisions validated by SKF’s Explorer technology platform. First, the pressed steel cage maintains dimensional stability at elevated temperatures — unlike polymer cages that creep under sustained 100°C exposure. Second, the optimized roller profile (logarithmic end relief) reduces edge stresses by 22% versus conventional designs, extending L10 life per ISO 281:2021. Third, the C3 clearance class ensures zero operational preload when installed on a 120 mm shaft with standard H7/k6 fit — critical for avoiding false brinelling during start-stop cycles. Fourth, the surface hardness of 58–62 HRC (achieved via through-hardening and tempering) provides resistance to white etching cracks (WEC) observed in wind turbine gearboxes under high sliding-to-rolling ratios. Finally, the symmetrical inner ring design enables bidirectional axial load capacity up to 0.3×C₀ — essential for reversing thrust during gust events.

The True Cost of Bearing Failure

A single unplanned shutdown of a 4 MW offshore turbine costs $42,000/hour in lost generation and penalty clauses — not including crane mobilization or replacement labor. Bearings failing prematurely due to incorrect clearance or counterfeit materials reduce effective L10 life to <30% of SKFs rated 120,000 hours (at 10 r/min, 400 kN load). Misinstallation — such as improper heating or hammer-driven mounting — accounts for 30% of avoidable failures. Using SKF-certified spherical roller bearing for offshore turbines backed by ISO 281-compliant lifetime modeling cuts total cost of ownership (TCO) by 37% over five years versus generic alternatives, factoring in maintenance labor, spare inventory, and energy loss from vibration-induced inefficiency.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 22324CA bearing ships with original SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±2 μm tolerance verification), and tamper-evident packaging with unique QR-coded anti-counterfeit label. Customers may verify authorization status directly via SKF’s official partner portal at skf.com/partnercheck. Bulk orders (>50 pcs) qualify for third-party SKP (SKF Production Audit) verification at source.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your turbine’s main shaft load spectrum, housing stiffness, and ambient temperature profile determine whether 22324CA is optimal — or whether a modified 22324CA/C3VL or 22324CAK variant better suits your duty cycle. Send us your application parameters: radial/axial load magnitudes, speed range, operating temperature envelope, available mounting space, and lubrication method. Our engineers will deliver a free SKF BEARINX-based assessment within 48 hours — including predicted L10 life, required fit tolerances, and grease selection rationale. Correct selection begins with engineering dialogue — not price negotiation.
