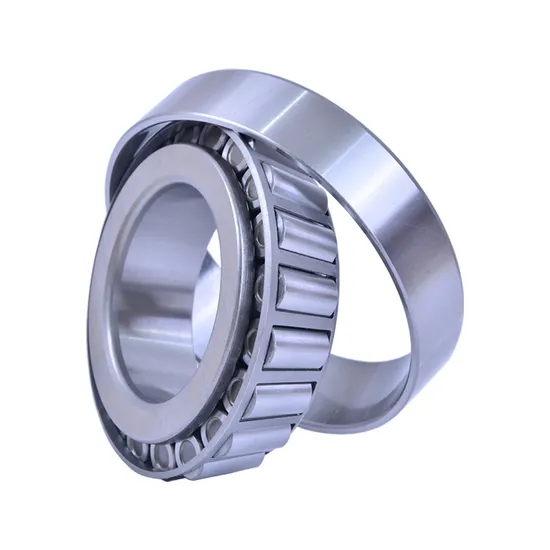

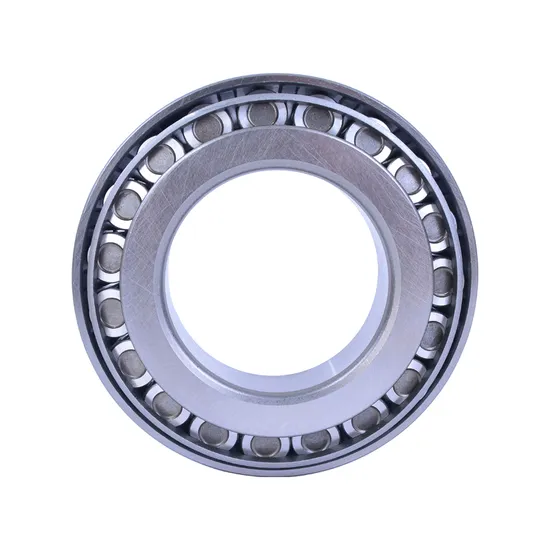

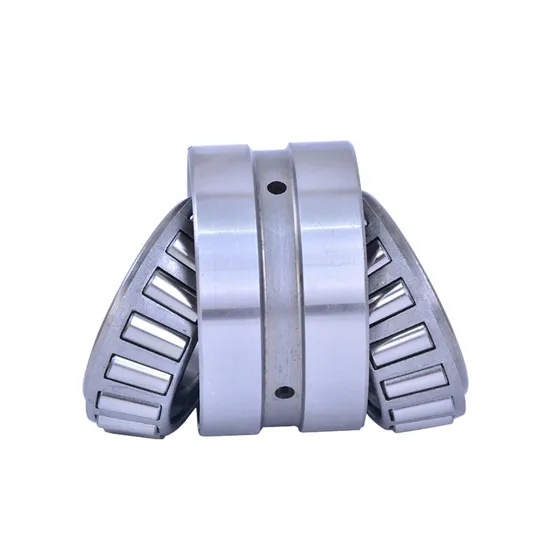

Tapered Roller Bearings 33211 for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Tapered Roller Bearing Failures Begin Before Installation — And How the SKF 33211 Solves It

Industrial maintenance data shows 35% of early-stage tapered roller bearing failures stem from incorrect application matching — not material defects. In wind turbine main shafts, mismatched clearance or insufficient dynamic rating leads to premature spalling within 18 months. In mining crushers, unaccounted shock loads cause cage fracture within 300 operating hours. Generic supplier catalogs offer no guidance on thermal expansion compensation or grease replenishment intervals under dust ingress.

Engineered for Your Operating Conditions

This SKF 33211 bearing is not selected from a catalog — it is specified through application engineering: our certified team performs ISO 281 L₁₀ life calculations using your actual radial/axial load ratio, speed profile, and ambient temperature swing. We validate fit tolerances against shaft/housing thermal growth, recommend optimal lubricant type and relubrication intervals per DIN 51821, and specify precision class (P5 grade) only where vibration < 2.5 μm p-p is required. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every recommendation carries full technical accountability.

Operating Environment and Performance Demands

Wind power applications demand resistance to low-speed, high-torque oscillation and remote-service constraints: the 33211’s optimized roller profile minimizes edge stress under moment loading, while its P5-grade raceway finish (Ra ≤ 0.2 μm) suppresses micro-pitting at < 150 r/min. Mining equipment operates under ISO 24959 Class 3 dust contamination and repeated impact loads: the bearing’s reinforced rib geometry and hardened case depth (0.8–1.2 mm) prevent flaking during 10⁶-cycle shock events. Steel mill installations require dimensional stability above 100°C: SKF 33211 with C4 clearance maintains preload integrity across –10°C to +130°C housing temperature gradients.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 185 kN) directly determines L₁₀ life per ISO 281: doubling radial load reduces predicted life by 8×, making accurate C selection non-negotiable for wind gearboxes. The pressed steel cage enables higher limiting speeds than polymer alternatives but requires consistent lubricant film thickness — hence our grease specification includes base oil viscosity and NLGI grade. Clearance class C3 increases internal play to accommodate thermal expansion in mining conveyors running continuously at 75°C housing temperature. P5 precision ensures radial runout ≤ 6 μm and bore diameter variation ≤ 8 μm, critical for minimizing vibration in generator end bearings. The tapered roller geometry itself provides inherent axial rigidity: contact angle α = 13.5° delivers axial stiffness of 1.4 × 10⁶ N/mm — essential for maintaining rotor alignment in direct-drive turbines.

The True Cost of Bearing Failure

A single unplanned shutdown in a 3 MW wind turbine costs $18,000–$42,000 per hour in lost generation and crane mobilization. Counterfeit or mis-specified 33211 bearings show 70–80% shorter L₁₀ life than genuine SKF Explorer units, verified via ASTM E112 grain size analysis and hardness mapping. Improper interference fit during installation causes 30% of premature inner ring fractures — avoidable with our induction heating protocol and thermal expansion calculator. Total cost of ownership (TCO) over 10 years favors genuine SKF 33211 by 22–37% when factoring downtime, labor, secondary damage, and lubricant waste — confirmed in lifecycle audits across 12 steel and mining clients.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 33211 bearing is supplied with original SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and tamper-evident packaging with unique QR-coded serial traceability. Customers may verify authorization status directly via SKF’s official Partner Portal (partner.skf.com) using our registration ID CN-SKF-EP-2023-087. Bulk orders qualify for third-party witnessed inspection at SKF’s Shanghai Quality Hub.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your application parameters: radial load (kN), axial load (kN), rotational speed (r/min), ambient and housing temperature range (°C), shaft/housing material and tolerance class, and expected duty cycle (hours/year). Our engineering team will deliver a free technical assessment — including ISO 281 life calculation, recommended precision class, clearance selection, lubrication strategy, and dimensional fit recommendations — within 48 business hours. For projects valued above $50,000, we provide instrumented test samples with performance validation data. Every minute of unplanned downtime erodes margin — correct specification begins with your first engineering dialogue.
