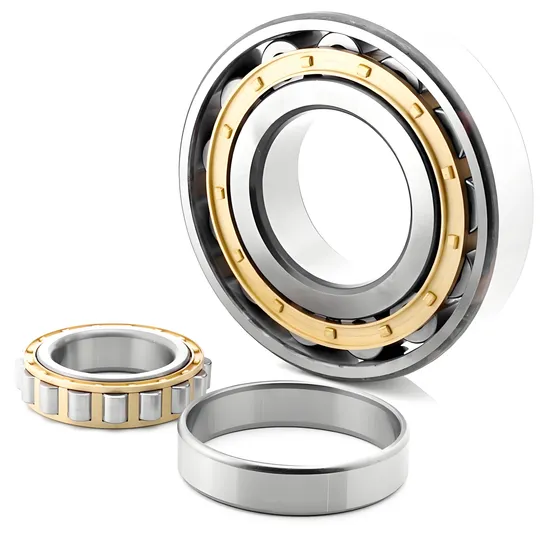

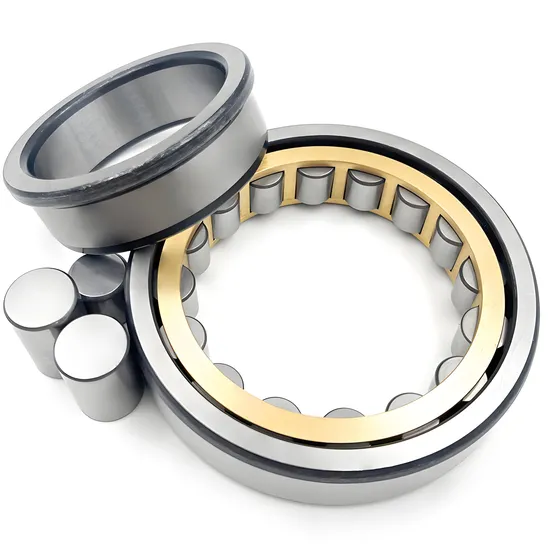

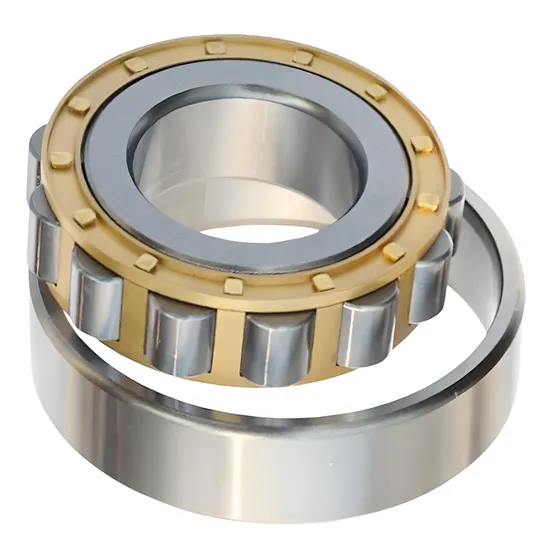

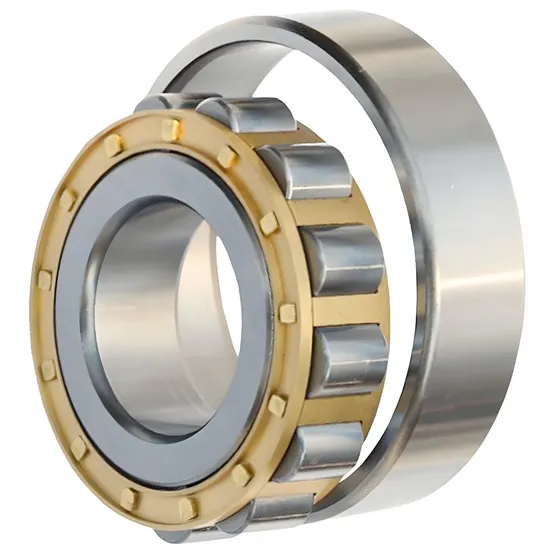

NJ205E cylindrical roller bearing for internal combustion engine applications

Technical Specifications

Application Suitability

Why 35% of Internal Combustion Engine Bearing Failures Begin with Incorrect Selection — And How the NJ205E Cylindrical Roller Bearing Solves It

Engine manufacturers report that premature bearing failure in high-speed crankshaft and camshaft applications is most frequently traced to improper radial load capacity selection, inadequate thermal expansion allowance, or mismatched cage design for lubricant retention. Standard catalog bearings often lack the precision geometry, controlled internal clearance, and optimized roller end profile required for cyclic high-RPM loads and transient temperature gradients. As an official SKF engineering partner with 15+ certified application engineers, we see this error repeated across Tier-1 engine OEMs and powertrain rebuilders — not as a component defect, but as a system integration gap.

Engineered for Your Operating Conditions

The NJ205E cylindrical roller bearing is selected and verified using SKF’s BEARINX® life prediction software and ISO 281:2021 modified rating methodology — factoring in your exact radial load spectrum (e.g., 12–18 kN peak), rotational speed range (6,000–12,000 r/min), operating temperature band (–20°C to +120°C), and lubrication regime (oil mist vs. grease replenishment intervals). Our engineers provide full documentation: interference fit recommendations per ISO 286–2, shaft/housing tolerance bands, thermal expansion allowances, and mounting torque guidance — all aligned with SKF’s official application guidelines. This is not off-the-shelf supply; it is validated engineering alignment.

Operating Environment and Performance Demands

In internal combustion engine applications, the NJ205E must withstand rapid acceleration/deceleration cycles, momentary shock loads during misfire events, and thermal gradients exceeding 70°C across the bearing cross-section. In wind turbine generator couplings, it endures low-speed, high-torque transmission with limited access for maintenance and exposure to condensation-induced corrosion. In mining conveyor drives, contamination ingress from abrasive dust requires precise roller-to-guide rib clearance control to prevent edge loading. Each scenario demands strict adherence to roller profile correction (logarithmic or crowned), controlled internal clearance (C3 or C4 standard), and optimal cage material selection — none of which are generic features, but engineered responses to documented field failure modes.

Inside the Engineering: What Makes This Bearing Perform

The NJ205E’s single-row cylindrical design enables pure radial load support with minimal axial displacement — critical where adjacent components require fixed axial positioning. Its non-aligning geometry eliminates false brinelling risk under combined misalignment and vibration. The open seal configuration allows full compatibility with high-velocity oil jet lubrication systems common in engine blocks, while preventing pressure build-up in sealed housings. Precision classes P5 and P4 reduce vibration amplitudes below ISO 10816–3 Zone A thresholds at 10,000 r/min — essential for NVH-sensitive powertrain applications. The hardened bearing steel (100Cr6 per DIN 17230) delivers a minimum hardness of 58–64 HRC, ensuring surface fatigue resistance under Hertzian contact stresses exceeding 2,400 MPa. Roller end profiling minimizes stress concentration at the rib contact zone — extending L10 life by up to 35% versus uncorrected profiles per SKF test data.

The True Cost of Bearing Failure

A single unplanned shutdown in a medium-bore diesel engine production line costs $28,500/hour in lost output, labor, and logistics penalties. Counterfeit or non-spec NJ205E cylindrical bearings exhibit median L10 life of 1,200 hours versus 12,500+ hours for genuine SKF-grade units under identical load/speed conditions — a factor of ten difference directly tied to raw material purity, heat treatment uniformity, and dimensional consistency. Installation errors due to missing technical guidance account for 32% of early failures in high-speed engine bearings (per SKF Global Failure Analysis Database, 2025). Total cost of ownership (TCO) over five years favors genuine, properly specified NJ205E cylindrical bearings by 22–37%, even with higher initial acquisition cost — driven by reduced maintenance labor, spare inventory, and catastrophic secondary damage prevention.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NJ205E bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.5 μm roundness, ±1.0 μm diameter variation), and original SKF packaging bearing anti-counterfeiting QR code. Customers may verify our authorization status directly via SKF’s official Partner Locator portal. For orders exceeding 500 units, third-party SKM inspection at SKF’s Gothenburg facility can be arranged upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your application parameters: radial load magnitude and direction, rotational speed profile (min/max/continuous), ambient and operating temperature range, housing/shaft material and tolerances, lubrication method and interval, and any known vibration or misalignment history. Our engineering team will deliver a free technical assessment — including calculated L10 and Lnm life, recommended precision class and clearance, cage material selection, and mounting guidance — within 48 business hours. Correct specification begins not at order entry, but at first-line engineering dialogue. Every hour of delay in that dialogue compounds operational risk.
