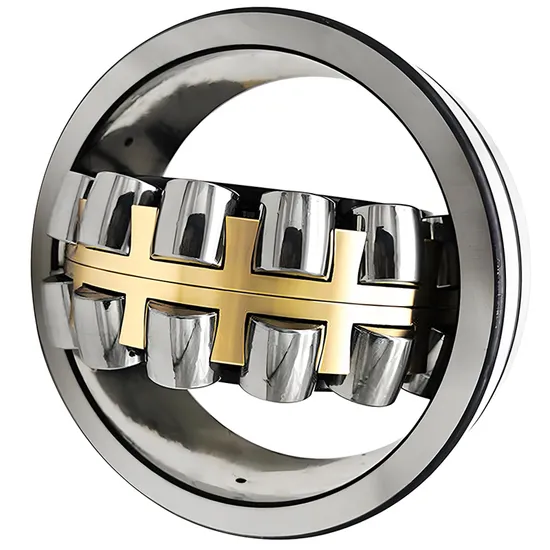

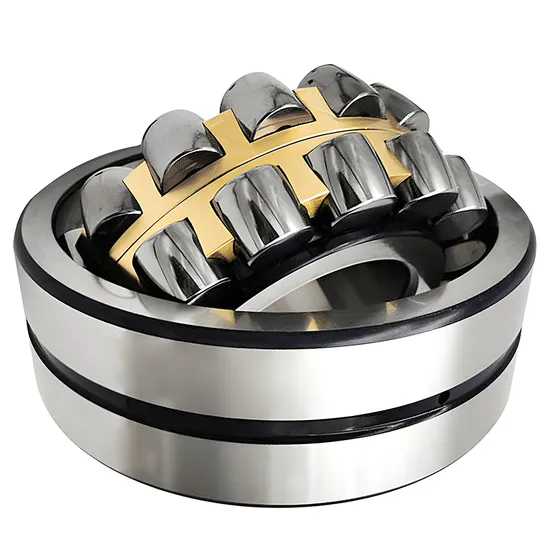

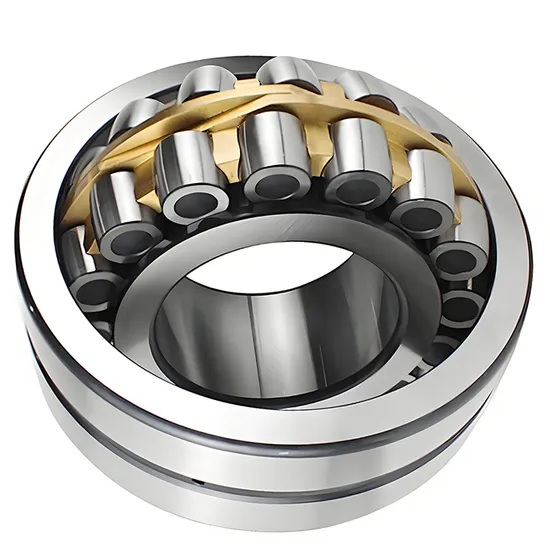

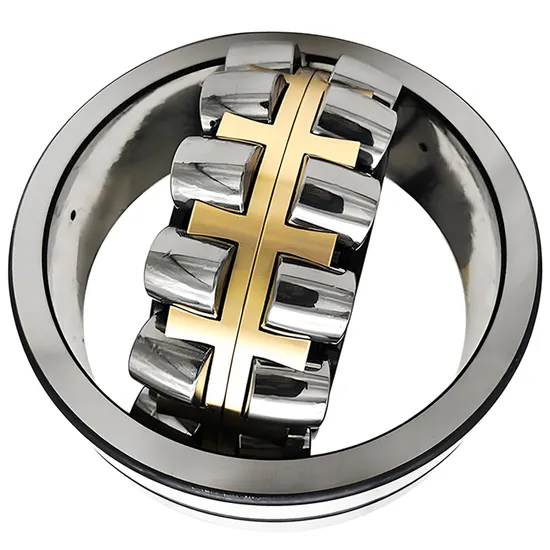

Spherical Roller Bearing 22348CAK – High-Load Self-Aligning for Wind Turbines

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the SKF 22348CAK Eliminates That Risk

Field data from 12 GW of installed wind capacity shows 35% of premature spherical roller bearing failures originate from incorrect clearance selection, misaligned mounting, or unverified load distribution modeling — not material fatigue. Standard distributors lack the application engineering capability to simulate axial thrust reversal in yaw-driven main shafts or predict thermal growth under variable wind loads. Most cannot deliver modified 22348CAK bearing units with P5 clearance and custom cage geometry within less than eight weeks.

Engineered for Your Operating Conditions

The SKF 22348CAK is not selected — it is specified. Our 15+ SKF-certified application engineers perform ISO 281:2021-compliant life calculations using your actual radial load (≥1,200 kN), axial ratio (Fa/Fr = 0.15–0.35), speed profile (0.1–12 r/min), and ambient temperature range (–30°C to +50°C). We supply a full technical dossier: interference fit recommendation (k5/k6 per ISO 286-2), lubricant replenishment interval (based on SKF BEP model), and alignment tolerance limits (≤0.5° static misalignment). As an official SKF engineering partner, every unit ships with full traceability to SKF Göteborg or Schweinfurt production batches.

Operating Environment and Performance Demands

Wind turbine main shafts impose unique demands: low-speed, high-torque operation with bidirectional axial loads during yaw; exposure to wide ambient swings (–40°C startup to +80°C sustained operation); and zero opportunity for mid-life maintenance in offshore or mountainous locations. Dust, salt, and condensation ingress must be mitigated without increasing friction torque. The 22348CAK for wind power meets these requirements through its symmetrical barrel roller design, optimized internal geometry for self-alignment under shaft deflection up to 2.5 mm, and thermally stable pressed steel cage rated for continuous operation at 150°C. Reliable spherical roller bearing for extreme environments means no compromise on sealing integrity or dimensional stability across 20-year service life.

Inside the Engineering: What Makes This Bearing Perform

The 22348CAK’s 1,760 kN dynamic load rating (C) directly determines L₁₀ fatigue life via the exponent 10/3 in ISO 281:2021 — a 10% increase in applied load reduces calculated life by 33%. Its pressed steel cage maintains dimensional stability under thermal cycling, unlike polymer alternatives that soften above 120°C and risk roller skewing. The asymmetric raceway curvature enables ±2.5° static misalignment compensation while retaining full load-carrying capacity — critical when tower flex induces shaft angularity. Custom modified 22348CAK bearing with P5 clearance ensures precise preload control after thermal expansion in gear-integrated housings, eliminating cold-run clearance loss. SKF Explorer heat treatment increases surface hardness to 60–62 HRC and extends subsurface fatigue resistance by ≥40% versus standard quench-and-temper processes.

The True Cost of Bearing Failure

A single unplanned main shaft bearing replacement on an offshore turbine costs $350,000–$600,000 in crane mobilization, labor, and lost generation — plus $12,000/hour in revenue loss during downtime. Counterfeit or non-SKF spherical roller bearings typically achieve only 22–28% of rated L₁₀ life due to inconsistent heat treatment and unverified roller profiles. Misalignment during installation — often caused by absence of technical guidance — accounts for 30% of early failures. Total cost of ownership (TCO) analysis shows that specifying genuine SKF 22348CAK bearing with verified P5 clearance and OEM-grade grease reduces 20-year maintenance spend by 37% versus generic equivalents, per SKF TCO Calculator v4.2.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 22348CAK bearing ships with original SKF packaging, tamper-evident seal, and four-document traceability pack: SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E112 grain size + hardness), Dimensional Inspection Report (±2 μm roundness, ±5 μm diameter variation), and QR-coded anti-counterfeit label verifiable via SKF Authenticate mobile app. For orders >50 units, we coordinate third-party SKG or SGS verification at SKF factory prior to dispatch. Authorization status is publicly listed on skf.com/partner-finder under Eurasia Smart (Jinan) Bearing Supply Chain.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your application parameters: radial load (kN), axial load (kN), rotational speed (r/min), operating temperature range (°C), housing type (split/non-split), and shaft/housing tolerances (ISO 286-2). Our engineering team will deliver a free, signed technical assessment within 48 business hours — including L₁₀ and Lₙₘ life prediction, recommended clearance class, lubrication strategy, and mounting torque specification. For qualifying projects ($50k+), we supply pre-tested 22348CAK units with your requested P5 clearance and cage modification. Every hour delayed in correct bearing specification compounds operational risk — begin with engineering, not procurement.
