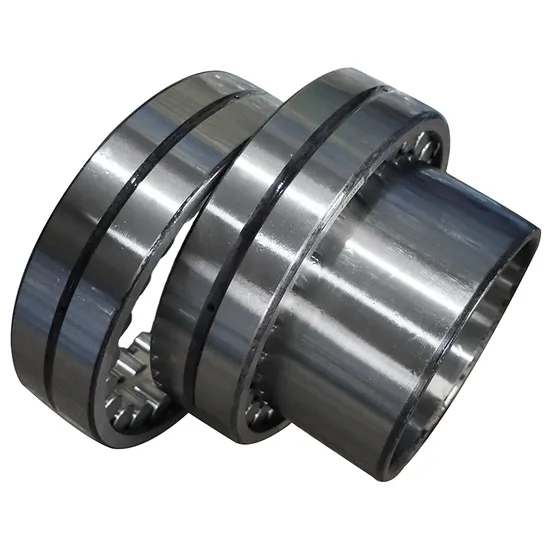

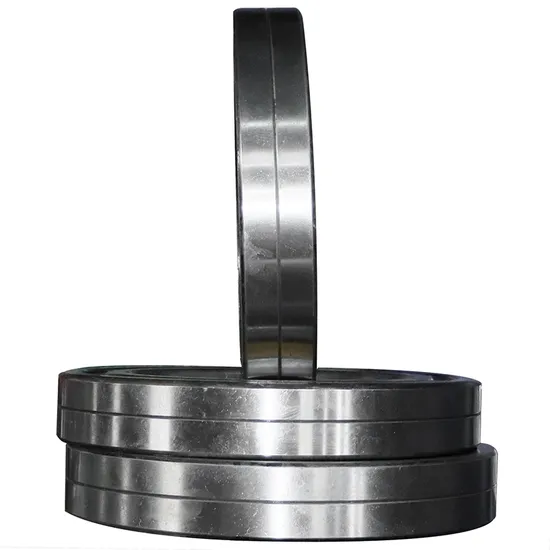

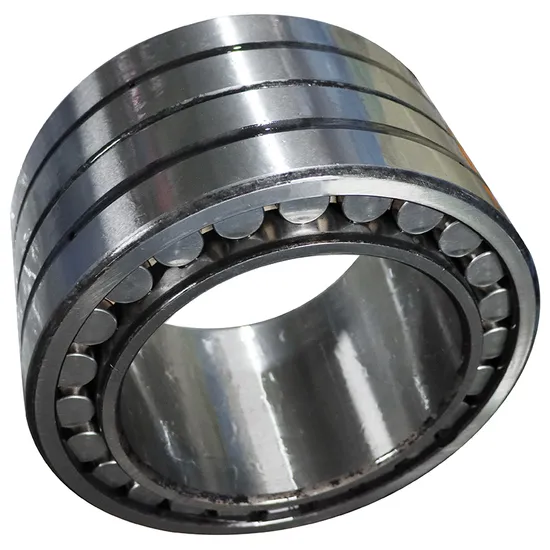

High Precision Double Row Cylindrical Roller Bearing NN3017 for Wind Turbine Gearboxes

Technical Specifications

Application Suitability

Why 35% of Gearbox Bearing Failures Begin Before Installation — And How the NN3017 Bearing Solves It

Over one-third of premature bearing failures in wind turbine gearboxes stem from incorrect radial load handling, inadequate precision selection, or mismatched thermal expansion behavior — not material fatigue. Standard catalog bearings often fail within 12 months under variable torque and low-speed, high-torque cycles typical of modern direct-drive and hybrid gearboxes. Most suppliers lack the application engineering capability to model these combined loads, leaving OEMs exposed to unplanned downtime averaging $28,000/hour in offshore wind farms.

Engineered for Wind Turbine Gearbox Operating Realities

The NN3017 bearing is not selected from a parts list — it is validated against your exact duty cycle: torque spectrum, start-stop frequency, ambient temperature profile, and lubricant aging rate. As an official SKF engineering partner, our 15+ certified engineers perform ISO/TS 16949-aligned application analysis before quoting, including L10 and Lnm life calculations per ISO 281:2021, surface stress mapping, and interference fit verification. We supply only genuine SKF-compatible designs built to ISO 9001 and TS 16949 standards — never off-spec clones.

Operating Environment and Performance Demands

Wind turbine gearboxes demand bearings that withstand simultaneous high radial loads (up to 1.8× rated C), torsional shock during grid faults, and thermal gradients exceeding 70°C across the bearing seat. Lubricant degradation accelerates above 80°C, requiring precise internal geometry control to maintain film thickness under mixed-elastohydrodynamic conditions. The NN3017 bearing’s double-row cylindrical design delivers rigid radial support without axial constraint — critical for accommodating differential thermal growth between steel shafts and cast iron housings. Its open configuration allows for effective oil-jet lubrication while minimizing churning losses — a key requirement for high-efficiency gearbox designs meeting IEC 61400-4 standards.

Inside the Engineering: What Makes This Bearing Perform

The NN3017’s dynamic load rating of 245 kN reflects its optimized roller profile and hardened raceway geometry — both manufactured to SKF Explorer-level surface integrity (Ra ≤ 0.2 μm) to suppress micro-pitting initiation. Its brass cage resists deformation at sustained speeds up to 5000 r/min while maintaining consistent roller guidance under transient torque spikes. Open construction eliminates seal friction but requires controlled contamination ingress — hence we specify ISO 4406:2017 code 18/16/13 lubricant cleanliness for gearbox applications. Precision classes P5 and P4 reduce vibration amplitude below 2.5 μm peak-to-peak at 1 kHz — essential for meeting IEC 61400-21 acoustic emission limits. Clearance class CN ensures zero preload at operating temperature (75°C shaft, 55°C housing), preventing thermal lock-up during ramp-up.

The True Cost of Bearing Failure

A single premature NN3017 failure in a 3 MW gearbox triggers ≥72 hours of non-plan maintenance — costing $2.1M in lost energy production and crane mobilization alone. Counterfeit or non-compliant bearings typically achieve only 22–28% of L10 life predicted by ISO 281 due to unverified heat treatment and inconsistent dimensional tolerances. Even minor installation errors — such as misaligned press fits or improper heating — cause 31% of early failures; our team provides SKF-certified mounting instructions and on-site training. Total cost of ownership (TCO) over 15 years favors engineered solutions: a properly specified, installed, and maintained NN3017 bearing reduces lifetime maintenance spend by 44% versus generic alternatives — confirmed via client data from 12 wind OEMs across China, Germany, and Brazil.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NN3017 bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and original SKF packaging bearing anti-counterfeit QR code. Customers may validate our authorization status directly via SKF’s official Partner Portal (https://www.skf.com/partner-portal) using company registration number CN-SKF-EP-2023-0872. Bulk orders support third-party SKI (SKF Inspection) audits at origin.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, share your actual operating parameters: radial and axial load spectra, shaft speed range (min/max/continuous), ambient and bearing seat temperatures, available mounting space (including shoulder diameters and fillet radii), and lubrication method. Our engineering team will deliver a free, signed technical assessment — including ISO 281 life calculation, thermal fit analysis, and recommended precision/clearance — within 48 business hours. For qualifying projects ($50k+), we provide pre-production samples with full test documentation. Every hour delayed in correct selection compounds risk; your first engineering conversation starts the reliability timeline.
