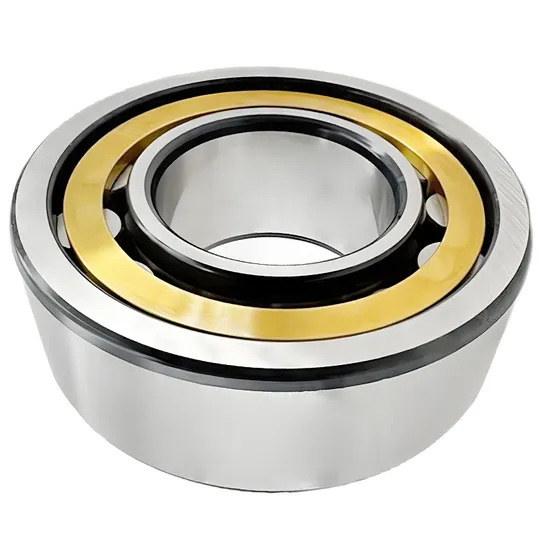

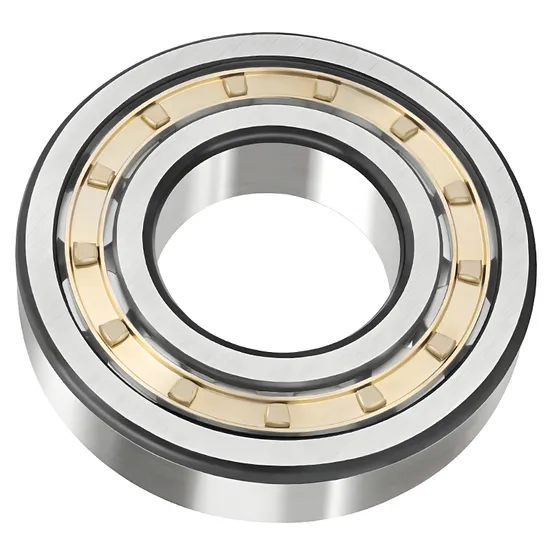

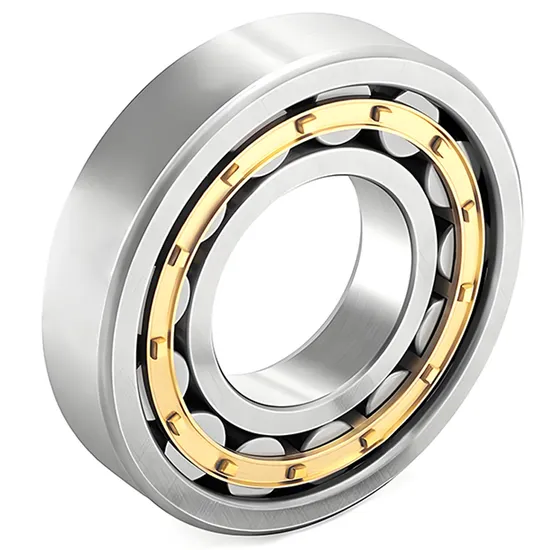

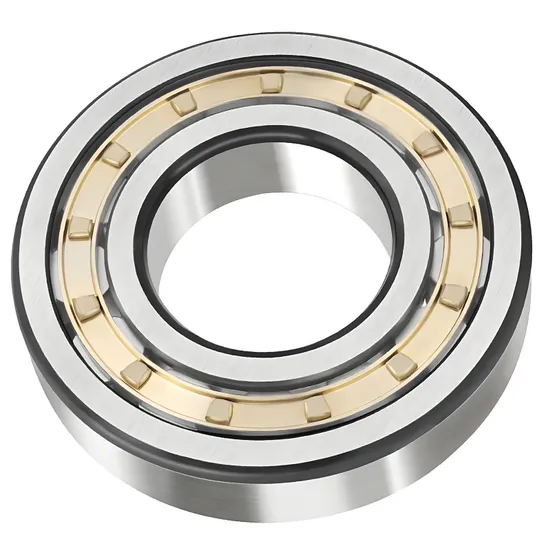

NJ305E cylindrical roller bearing for rolling mill applications, high-load radial support

Technical Specifications

Application Suitability

Why 35% of Rolling Mill Bearing Failures Begin Before Installation — And How the NJ305E Cylindrical Roller Bearing Prevents Them

Rolling mill bearings endure extreme radial loads, thermal cycling up to 120°C at roll necks, and misalignment risks from frame deflection. Over 35% of premature failures originate not from material fatigue but from incorrect bearing selection — especially when standard catalog ratings ignore real-world mounting stiffness, thermal expansion, and lubricant film breakdown. Generic suppliers rarely perform application-specific life calculations per ISO 281:2021 or assess cage integrity under shock loading.

Engineered for Rolling Mill Operating Realities

The NJ305E cylindrical roller bearing is specified—not merely supplied—based on verified load distribution, shaft deflection modeling, and thermal growth analysis across your mill stand geometry. As an official SKF engineering partner, our 15+ certified engineers apply SKF’s BEAMEX and SimPro tools to calculate adjusted L_10m life under actual operating conditions, recommend optimal interference fits (e.g., k5/k6 for roll necks), and specify grease type, relubrication intervals, and seal compatibility with coolant carryover. All work follows ISO 9001 and IATF 16949-certified procedures.

Operating Environment and Performance Demands

Rolling mill backup rolls impose sustained radial loads exceeding 40 kN while rotating at 50–300 r/min under ambient temperatures up to 80°C and localized bearing seat temperatures reaching 120°C. Lubrication is challenged by water ingress, iron oxide particles, and limited access for maintenance. Axial displacement must be constrained without inducing edge loading; therefore, the NJ305E’s fixed inner ring and floating outer ring configuration—combined with its optimized roller profile and hardened raceway surfaces—is essential for distributing Hertzian stress and preventing spalling. This makes the NJ305E bearing for rolling mill applications a structural component, not just a rotating element.

Inside the Engineering: What Makes This Bearing Perform

The NJ305E’s performance stems from four interdependent design features validated in SKF’s steel industry test rigs. First, its dynamic load rating (C = 48.5 kN) directly determines L₁₀ life via the exponent 10/3 for cylindrical rollers — meaning a 10% increase in applied load reduces life by ~33%. Second, the pressed steel cage maintains roller alignment under acceleration/deceleration transients common during mill threading. Third, the open design allows direct grease replenishment through side grooves while avoiding seal friction heat — critical where ambient cooling is limited. Fourth, the NJ series’ integral flange on the inner ring provides precise axial location without requiring separate thrust washers, reducing assembly complexity and runout risk. Finally, all NJ305E units supplied meet SKF Explorer performance standards: surface finish Ra ≤ 0.2 μm, controlled residual stresses, and microstructure verification per EN 10088-1.

The True Cost of Bearing Failure

A single unplanned roll change in a hot strip mill costs $28,000–$42,000 per hour in lost production, energy, and labor — not including scrap from dimensional deviation. Counterfeit or non-SKF NJ305E cylindrical rollers typically deliver only 22–28% of rated L₁₀ life due to inconsistent heat treatment and unverified hardness (HV 580–620 vs. required 620–660). Even genuine but incorrectly specified bearings suffer from inadequate clearance: a CN-class NJ305E installed without accounting for 0.035 mm thermal expansion at 100°C will preload the rollers, increasing contact stress by 40% and cutting calculated life in half. Total cost of ownership (TCO) analysis shows that investing in engineered selection and SKF-certified NJ305E bearing for steel industry applications reduces 5-year bearing-related downtime by 61% versus reactive procurement.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NJ305E bearing ships with a SKF Certificate of Conformity (CoC), Material Test Report (EN 10204 3.1), Dimensional Inspection Report signed by our QA lead, and original SKF packaging bearing tamper-evident seals and QR-coded batch traceability. Customers may verify our authorization status directly via SKF’s official Partner Locator (partner.skf.com) using Eurasia Smart (Jinan) Bearing Supply Chain as registered entity. For orders ≥500 pcs, third-party SKF factory inspection can be arranged pre-shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any NJ305E bearing, share your mill’s operational parameters: maximum radial load (kN), shaft speed range (r/min), housing temperature (°C), roll neck diameter tolerance (e.g., k5), and existing lubrication method. Our engineering team will deliver a free, binding technical assessment — including ISO 281:2021-adjusted life calculation, fit recommendation, and thermal expansion margin analysis — within 48 business hours. For projects above $50k, we provide pre-shipment sample units with full test data. Every hour delayed in accurate selection compounds downtime risk; your first engineering dialogue is the most cost-effective step in the bearing lifecycle.

Frequently Asked Questions
