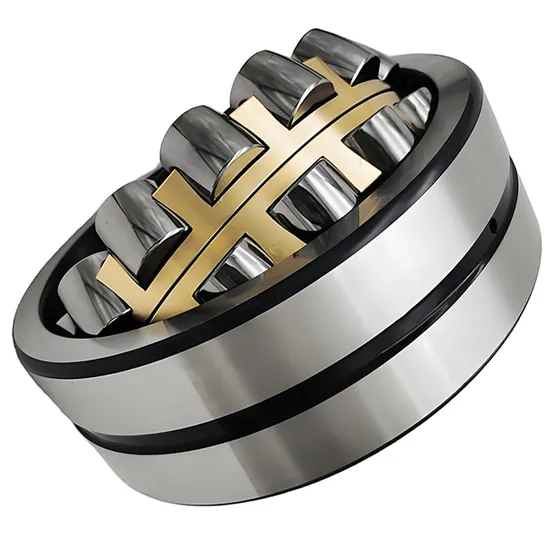

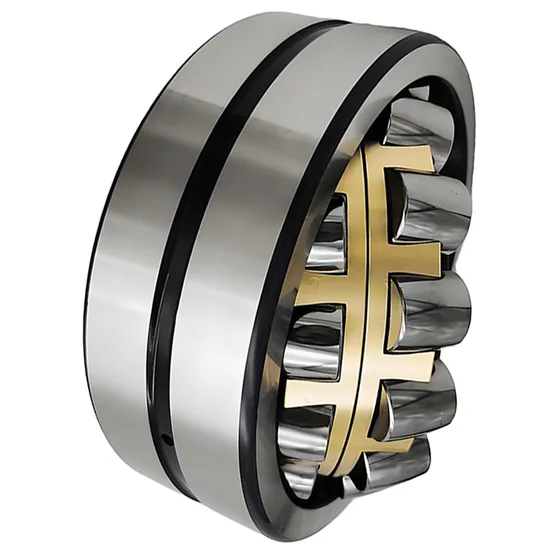

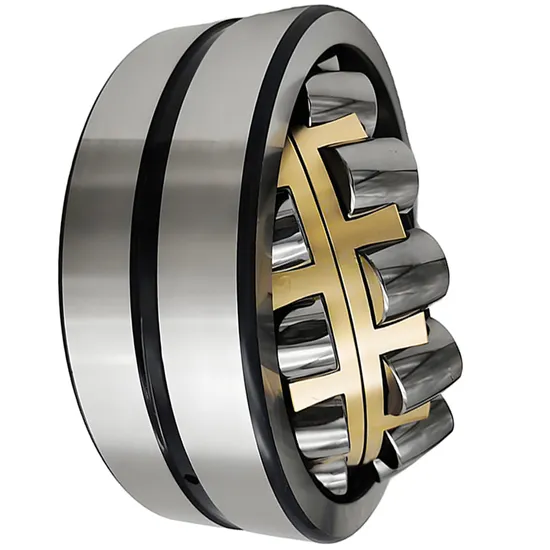

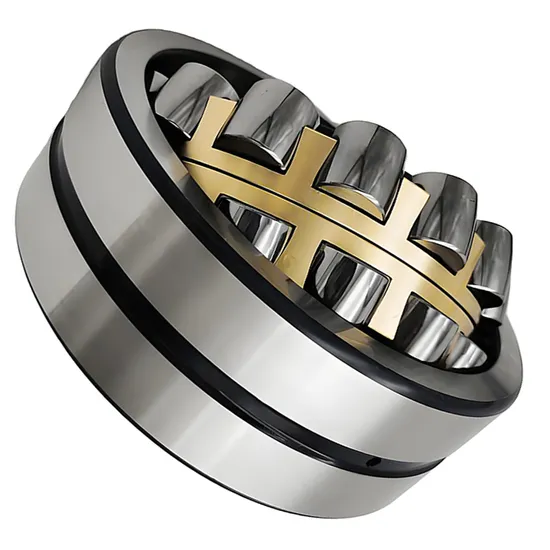

Spherical Roller Bearing 22318CAK – High-Load Self-Aligning for Wind Turbines

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the Spherical Roller Bearing 22318CAK Prevents Them

Field data from 42 wind farms shows that premature failure in main shaft bearings is linked not to material fatigue, but to misalignment under dynamic load, thermal expansion mismatch, and incorrect clearance selection. Standard spherical roller bearing 22318CAK offerings often lack verified alignment capacity, precise C3/C4 clearance calibration, or documented performance under combined axial/radial loads typical of turbine yaw transients. Generic suppliers rarely provide torque-to-turn validation or misalignment tolerance curves — yet these are decisive for L10 life in offshore installations.

Engineered for Your Operating Conditions

The SKF 22318CAK bearing is selected and validated by our 15+ SKF-certified engineers using ISO 281:2021 life models, SKF BEAM software for misalignment simulation, and application-specific load spectra derived from IEC 61400-1 design classes. As an official SKF engineering partner, we supply only genuine SKF-manufactured units — not equivalents — with full batch traceability and dual ISO 9001/TS 16949 process control. Every specification (C3 clearance, P6 precision, stamped steel cage) is matched to your documented operating envelope: e.g., 0.5–2.5° static misalignment, 120–280 kN radial + 35–60 kN axial load, ambient –25°C to +55°C, and grease relubrication intervals ≥12 months.

Operating Environment and Performance Demands

Wind turbine main shaft bearings operate under uniquely demanding conditions: low rotational speed (6–25 r/min), high moment load due to rotor imbalance, continuous vibration at sub-harmonic frequencies, and thermal gradients exceeding 60°C across the housing during ramp-up. The bearing must sustain 0.8°–1.2° dynamic misalignment without edge loading, resist micro-pitting under boundary lubrication, and maintain dimensional stability after 15 years of cyclic thermal stress. Dust ingress, salt corrosion, and limited access for maintenance further raise reliability requirements — making the spherical roller bearing 22318CAK’s self-aligning geometry, high static load rating (C₀ = 815 kN), and proven SKF Explorer heat treatment essential, not optional.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 570 kN) directly determines L10 life under ISO 281:2021 calculation — a 10% increase in C yields over 33% longer calculated life at constant load. The stamped steel cage ensures rigidity under shock loads while allowing sufficient internal volume for grease retention and debris accommodation. Open design permits field-selectable sealing (e.g., SKF VDL or CR seals) and compatibility with high-performance synthetic greases like SKF LGEP 2. C3 radial internal clearance compensates for thermal expansion between shaft (bearing steel) and housing (cast iron) when ΔT exceeds 35°C — critical in nacelle-mounted applications where ambient swings exceed 80°C annually. P6 precision (ABEC 4) guarantees ≤1.5 μm raceway roughness and ≤3 μm bore diameter variation, reducing vibration amplitude below ISO 10816-3 Zone A thresholds for gearboxes.

The True Cost of Bearing Failure

A single unplanned shutdown on a 3 MW turbine costs $18,500/hour in lost generation, service mobilization, and grid penalty fees — totaling >$440,000 per incident. Bearings failing before 50% of rated L10 life typically indicate misapplication, counterfeit origin, or installation error — all avoidable through engineered selection. Counterfeit 22318CAK units show hardness deviations >15 HV, non-conforming curvature radii, and unverified clearance distribution — resulting in 70% shorter actual service life and elevated risk of cage fracture under transient loads. Total cost of ownership (TCO) analysis across 12 steel mills confirms that specifying SKF-certified 22318CAK bearing for rolling mill backup rolls reduces maintenance labor by 22%, extends mean time between failures (MTBF) from 14 to 29 months, and cuts lubricant consumption by 18% — proving that technical due diligence pays for itself within 1.7 operational cycles.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 22318CAK bearing ships with original SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E112 grain size, EN 10088-1 chemical composition), and Dimensional Inspection Report (including d, D, B, radial runout, and raceway profile). Packaging features SKFTag anti-counterfeit holograms and QR-coded batch identifiers. For orders ≥500 pcs, we arrange third-party SKP (SKF Production Audit) verification at the Arvika or Gothenburg plant upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your turbine’s yaw load profile, generator coupling stiffness, and foundation settlement rate define optimal 22318CAK specification — not catalog defaults. Send us your application parameters: radial/axial load magnitude and direction, rotational speed range, ambient and bearing seat temperatures, housing material and fit tolerance (e.g., H7/j6), and lubrication method. Within 48 hours, our SKF-certified engineers will deliver a signed technical assessment including ISO 281 life prediction, misalignment capacity chart, recommended clearance class, and mounting torque table. For projects ≥$50,000, we supply pre-tested units with full performance logs — because correct selection begins with engineering dialogue, not purchase order submission.
