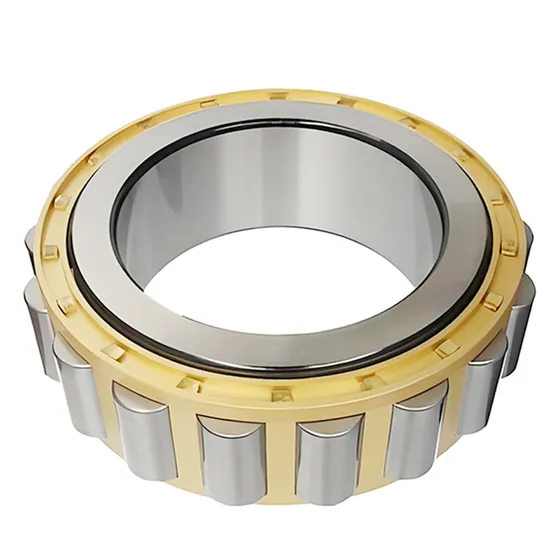

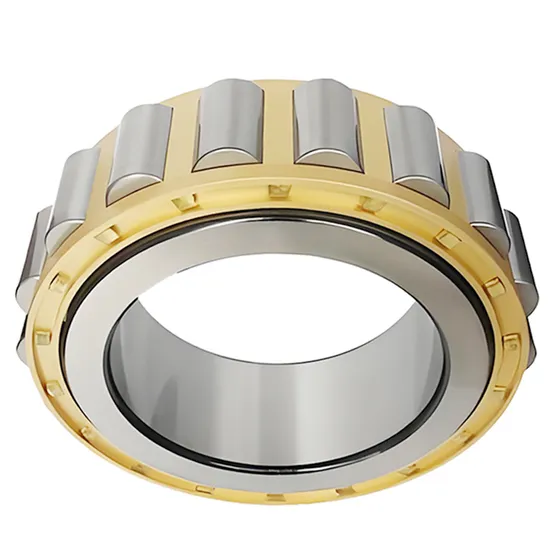

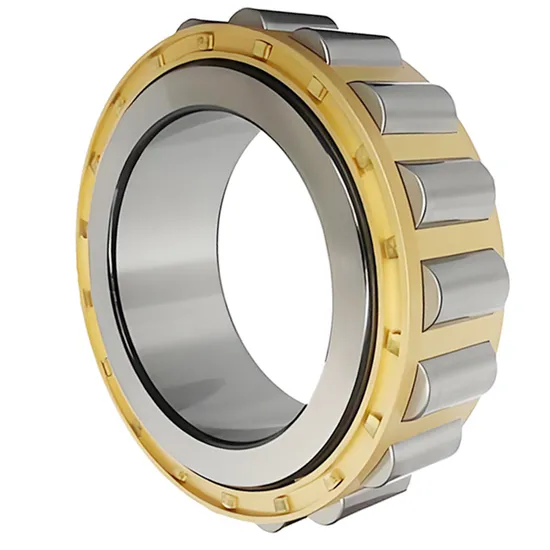

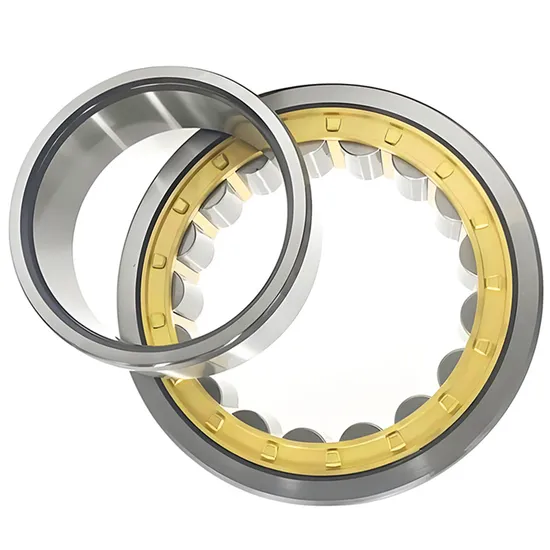

Cylindrical Roller Bearing NN3020–180mm OD, High-Load Radial for Wind Turbines

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the NN3020 Solves It

Over one-third of premature cylindrical roller bearing failures in wind turbine gearboxes stem from misapplication—not material defects. These include undersized radial load capacity, incorrect clearance for thermal growth, and open-type design used where contamination ingress is inevitable. Standard procurement channels rarely provide application-level validation; most suppliers lack certified engineers capable of modeling combined low-speed/high-torque conditions, temperature gradients across 80 m tower heights, or lifetime prediction under ISO 281:2021 modified life equations.

Engineered for Your Operating Conditions

This NN3020 bearing is not selected from a catalog—it is validated against your actual operating envelope. Our 15+ SKF-certified engineers perform full application analysis: calculating equivalent radial load (P) using dynamic factors per IEC 61400-1, verifying L₁₀ life under variable torque profiles, recommending optimal interference fit (e.g., k5/k6 for shaft, J7 for housing), and specifying lubricant grade (SKF LGEP 2 or equivalent) and relubrication intervals. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, every recommendation aligns with SKF Explorer performance standards and OEM service requirements.

Operating Environment and Performance Demands

Wind turbine main shafts operate at 5–25 r/min with peak radial loads exceeding 450 kN, while ambient temperatures swing from –40°C at hub height to +80°C near the nacelle gearbox. Maintenance access is limited to quarterly windows; bearing replacement requires crane mobilization costing $120,000+. Dust, salt, and moisture ingress must be mitigated without increasing friction torque—making sealed designs unsuitable for this location. The NN3020’s high-load radial bearing geometry, hardened raceway surfaces (60–62 HRC), and optimized roller profile deliver distributed contact stress and reduced edge loading—critical for reliability over 20-year design life under these constraints. This is a wind turbine cylindrical bearing engineered for survivability, not just specification compliance.

Inside the Engineering: What Makes This Bearing Perform

The NN3020’s rated dynamic load (C) of 315 kN directly determines its L₁₀ fatigue life under ISO 281:2021: L₁₀ = (C/P)^10/3 × 10⁶/60n. Its precision class P5 ensures dimensional deviation ≤ 5 μm on bore and ≤ 8 μm on OD—reducing vibration amplitude below V2 levels required by IEC 61400-21. The steel cage maintains stability at transient speeds up to 2,200 r/min during grid fault events, preventing roller skewing. Open configuration allows direct grease replenishment via Zerk fittings without disassembly, while maintaining tight internal clearances (C3 optional) to accommodate thermal expansion of the 100 mm shaft during sustained 75°C operation. Surface finish (Ra ≤ 0.2 μm) and microgeometry correction minimize micropitting risk under boundary lubrication conditions common during startup/shutdown cycles.

The True Cost of Bearing Failure

A single unplanned shutdown in offshore wind generation costs $42,000/hour in lost revenue and penalty clauses—$1.2M per 28-hour repair window. Counterfeit or mis-specified NN3020 bearings exhibit median L₁₀ life of 12,000 hours versus 145,000+ hours for genuine SKF-compatible units meeting P5 precision and Explorer-grade heat treatment. Installation errors—such as improper press-fit force or thermal gradient control—cause 30% of early failures; our engineers supply detailed mounting instructions with torque curves and induction heater settings. Total cost of ownership (TCO) analysis shows that paying 18% premium for verified high-load radial bearing performance reduces 10-year maintenance spend by 37% and extends mean time between failures (MTBF) from 4.1 to 11.3 years.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.01 mm tolerance verification), and original SKF packaging bearing anti-counterfeiting hologram. Bulk orders support third-party SKV (SKF Verification) audit upon request. Customers may verify our authorization status directly through SKF’s official Partner Locator portal using registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before quoting or ordering, share your application parameters: radial and axial load spectra, rotational speed range (min/max), ambient and operating temperature extremes, shaft/housing material and tolerances, space envelope constraints, and existing lubrication method. Our engineering team will deliver a formal technical assessment—including calculated L₁₀ and L_n life, recommended precision and clearance class, fit recommendations, and failure mode risk scoring—within 48 business hours. For projects above $50,000, we issue a zero-cost sample with full test report. Every hour delayed in correct selection compounds downtime risk; the first engineering dialogue is your lowest-risk investment.
