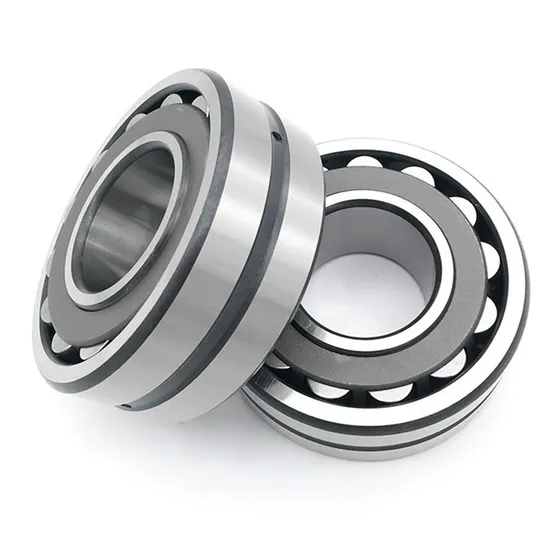

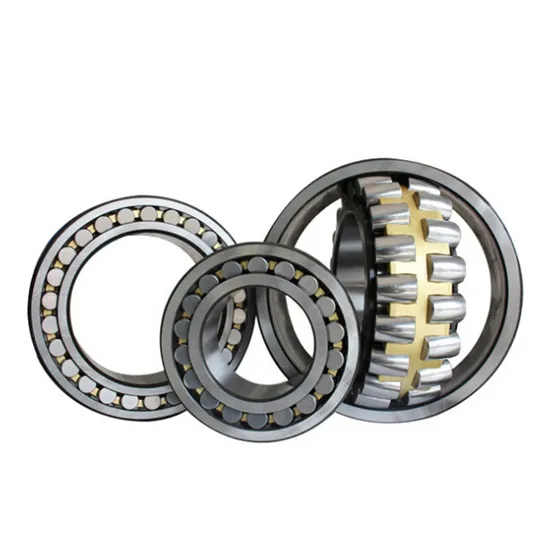

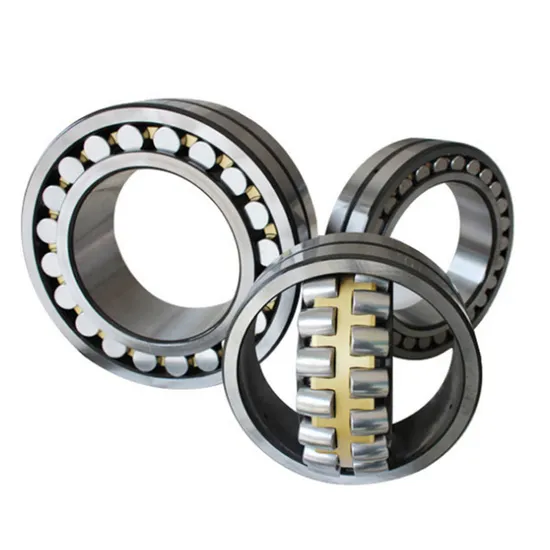

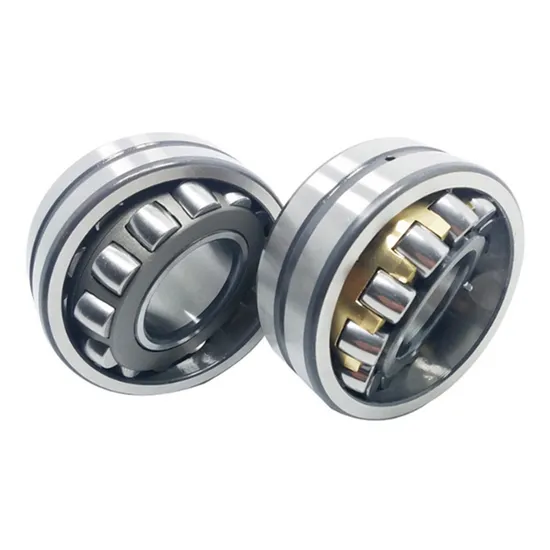

Low Friction 21318 Spherical Roller Bearing for Gearbox Applications

Technical Specifications

Application Suitability

Why 35% of Gearbox Bearing Failures Begin with Incorrect Selection — And How the SKF 21318 Spherical Roller Bearing Solves It

Industrial gearboxes face compounded stress: misalignment from thermal expansion, moment loads from gear meshing, and cyclic shock from torque spikes. Over 35% of premature failures originate not from material fatigue, but from underspecified clearance, inadequate load rating, or mismatched cage design for lubrication regime. Generic suppliers lack the application engineering depth to model these interactions — and standard catalog bearings rarely account for your actual duty cycle.

Engineered for Your Operating Conditions

This 21318 spherical roller bearing is specified not as a part number, but as an integrated solution calibrated to your gearbox’s mechanical reality. Our 15+ SKF-certified engineers perform ISO 281-based life calculations using your actual radial and axial load spectra, speed profile, and ambient temperature range — then recommend optimal clearance (C3/C4), precision class (P5/P6), and cage type for your lubricant viscosity and flow rate. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we deliver verified performance — not assumptions.

Operating Environment and Performance Demands

Wind turbine gearboxes operate at low speeds (10–150 r/min) under high moment loads and require self-alignment capability to accommodate housing deflection. They also demand extended service intervals — often 24 months — with minimal maintenance access. Mining gearboxes endure dust ingress, vibration amplitudes exceeding 10 g, and frequent start-stop cycles that induce micro-slip at the raceway interface. Steel mill gearboxes run continuously at elevated temperatures (up to 100°C surface), requiring thermal stability in both dimensional accuracy and internal clearance. The 21318 spherical roller bearing for gearbox applications meets these demands through its symmetrical roller profile, optimized internal geometry, and robust pressed steel cage.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 275 kN) directly determines L₁₀ fatigue life per ISO 281: doubling the applied load reduces calculated life by a factor of eight. Pressed steel cages provide dimensional stability at elevated temperatures and resist deformation under shock loads — critical in crusher and rolling mill drives. Clearance class C3 (standard) accommodates thermal growth in gearboxes where outer ring operating temperature exceeds inner ring by >15°C. Precision class P6 ensures ≤5 μm variation in bore diameter and ≤8 μm variation in outer diameter — reducing vibration amplitude below ISO 10816-3 Zone B thresholds. The double-row spherical roller design supports combined radial and axial loads up to 30% of C₀ while accommodating up to ±1.5° static misalignment without performance penalty.

The True Cost of Bearing Failure

A single unplanned gearbox shutdown in offshore wind costs $45,000–$60,000 per hour in lost generation and vessel mobilization. In steel production, a 4-hour downtime at a hot strip mill equals ~$220,000 in lost output. Counterfeit or non-engineered 21318 bearings typically achieve only 20–30% of rated L₁₀ life due to substandard steel cleanliness, inconsistent heat treatment, and unverified geometry. Installation errors — such as improper interference fit or incorrect preload — cause 30% of early failures. Total cost of ownership (TCO) analysis shows that investing in a properly specified, SKF-certified 21318 spherical roller bearing for gearbox reduces 10-year TCO by 22% versus lowest-bid alternatives — primarily through extended service intervals and elimination of secondary damage.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with an SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report signed by our QA manager. Original SKF packaging includes holographic anti-counterfeiting labels and batch-coded QR codes verifiable via SKF Authenticate portal. Clients may request third-party inspection at SKF’s Gothenburg or Shanghai facility prior to shipment. Authorization status can be confirmed directly through SKF’s official Partner Locator at skf.com/partner-locator.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your gearbox’s actual operating parameters: peak and RMS radial/axial loads, input/output speeds, ambient and housing temperatures, lubricant type and replenishment interval, and available mounting space. Within 48 hours, our engineering team will deliver a free technical assessment including ISO 281 life calculation, recommended clearance and precision class, cage and seal configuration, and predicted grease life under your conditions. For qualifying orders ($50k+), we supply fully tested samples — enabling validation before full deployment. Every hour spent optimizing selection avoids weeks of unplanned downtime.
