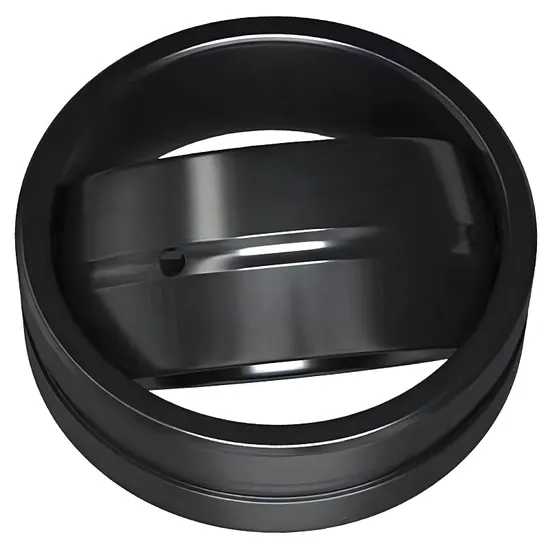

SKF Spherical Plain Bearings GEWZ34ES-2RS for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin at the Pivot Point — And How the SKF GEWZ34ES-2RS Eliminates That Risk

Over 35% of premature hydraulic cylinder failures originate from spherical bearing misapplication — not material defect or manufacturing flaw. Engineers routinely face conflicting requirements: high radial load capacity, angular misalignment tolerance up to ±4°, zero external relubrication access, and operation in dusty, moisture-prone environments. Standard off-the-shelf plain bearings fail under combined oscillatory motion and shock loading; generic suppliers lack application-specific validation protocols or engineering support for cylinder pivot analysis.

Engineered for Oscillatory Load Cycles in Confined Spaces

The SKF GEWZ34ES-2RS is not selected — it is specified. Our 15+ SKF-certified engineers perform full application analysis before recommendation: calculating equivalent dynamic load using ISO 12216, verifying angular displacement limits against actual cylinder stroke geometry, validating seal retention under pressure-induced extrusion, and confirming thermal expansion compatibility with housing materials. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we deliver verified performance — not catalog data alone.

Operating Environment and Performance Demands

Hydraulic cylinder pivots operate under uniquely demanding conditions: low-frequency oscillation (0.1–5 cycles/min), high static radial loads (up to 120 kN in heavy-duty applications), frequent exposure to water ingress and abrasive particulates, and limited access for maintenance. Temperature ranges span −25°C to +120°C during transient duty cycles. The GEWZ34ES-2RS meets these demands through its steel-on-steel sliding interface with controlled surface finish (Ra ≤ 0.4 μm), double-lip contact seals rated for IP66 protection, and self-lubricating solid film coating that maintains coefficient of friction below 0.12 across the full operational temperature range — a critical requirement for preventing stick-slip in precision positioning systems.

Inside the Engineering: What Makes This Bearing Perform

The GEWZ34ES-2RS delivers predictable life because every parameter is engineered for functional integrity. Its hardened bearing steel inner ring achieves ≥60 HRC surface hardness, ensuring resistance to brinelling under repeated impact loading typical in forging and construction machinery. The whole outer ring design eliminates axial play while maintaining ±4° angular capability — essential for compensating frame flex in mobile equipment. The 2RS seal configuration uses nitrile rubber lips with controlled interference, achieving sealing effectiveness without increasing torque beyond 0.15 N·m — critical for low-power actuator systems. Surface roughness control (Rz ≤ 1.6 μm) on both sliding surfaces minimizes wear particle generation in sealed hydraulic circuits. Finally, dimensional tolerances conform to SKF’s P0 precision class per ISO 492, guaranteeing repeatable fit and preload behavior across installation batches.

The True Cost of Bearing Failure in Critical Actuation Systems

A single unplanned stoppage in a hydraulic press line costs $28,000/hour in lost production and labor overhead. A misapplied spherical plain bearing accelerates wear by up to 5× when subjected to unaccounted moment loads — reducing L10 life from 12,000 hours to under 2,500 hours. Counterfeit or non-SKF-equivalent parts often use substandard steel with inconsistent heat treatment, resulting in 20–30% lower static load rating (C₀) and unpredictable fatigue initiation. According to ISO 281:2021, incorrect clearance selection alone can reduce calculated life by 40%. Total cost of ownership (TCO) is dominated not by purchase price, but by installation labor, downtime, collateral damage to adjacent components, and requalification time — all mitigated by correct specification backed by SKF’s proven design methodology.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GEWZ34ES-2RS bearing ships with SKF Certificate of Conformity, Material Test Report (per EN 10204 3.1), Dimensional Inspection Report signed by our QA lead engineer, and tamper-evident SKF packaging with unique QR-coded anti-counterfeiting label. Customers may verify our authorization status directly via SKF Group’s official partner portal (https://www.skf.com/partner-verification) using our registration ID EURASIA-SMART-JN-2023. Bulk orders support third-party SKP (SKF Knowledge Partner) audit or factory witness inspection upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your cylinder’s operating parameters: maximum radial load (kN), oscillation angle (±°), frequency (cycles/min), ambient and operating temperature range (°C), housing material and bore tolerance (H7/H6), and available mounting space envelope (mm). Our engineering team will deliver a free technical assessment within 48 business hours — including SKF BEARINX®-generated life calculation, seal extrusion risk evaluation, and recommended fit class. For projects over $50,000, we provide test units with full performance documentation. Every hour delayed in proper pivot specification extends your risk exposure — begin with engineering, not procurement.
