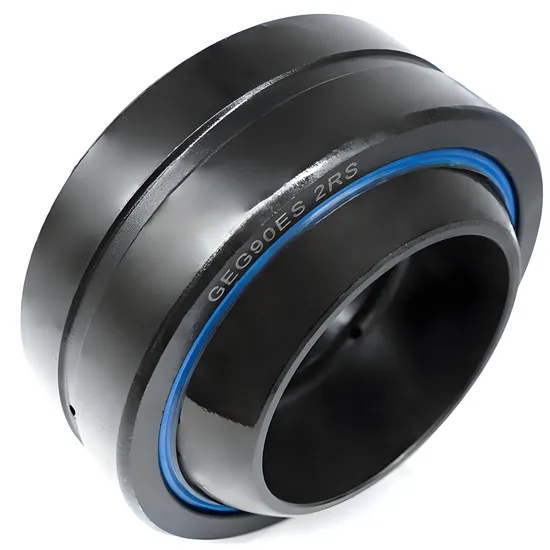

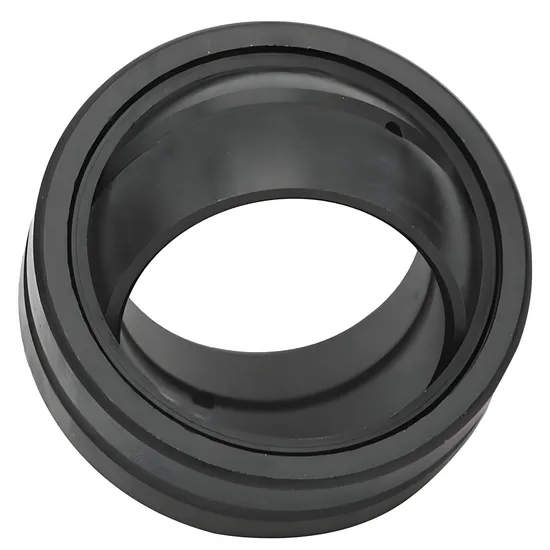

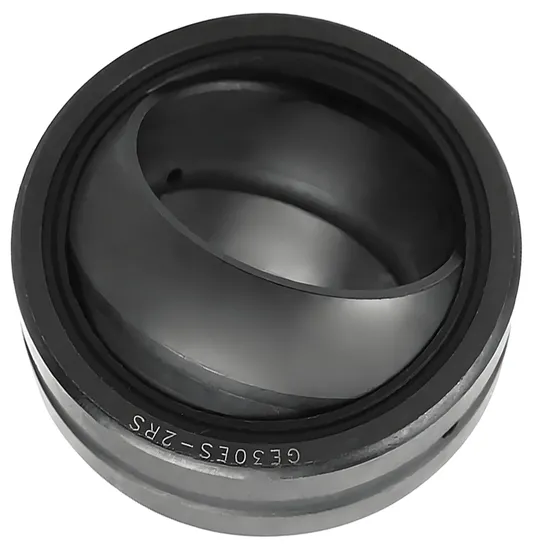

SKF Spherical Plain Bearings GEG8C–GEG20C for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin at the Pivot — And How the SKF GEG8C Solves It

Over 35% of premature failures in heavy-duty hydraulic cylinders originate not from seal degradation or pressure spikes—but from spherical plain bearing misapplication: incorrect radial load rating, inadequate self-lubrication for intermittent motion, or insufficient steel-on-steel interface hardness for shock-loaded articulation. Standard off-the-shelf joints often lack verified life calculations for your exact stroke frequency, ambient temperature swing, or contamination level. As certified SKF engineering partners, we see this repeated across OEMs building excavators, dump trucks, and precision automotive dampers—where a single joint failure triggers $28,000/hour downtime in automated assembly lines.

Engineered for Your Operating Conditions

The SKF GEG8C is not selected—it’s validated. Our engineers perform ISO 281-based L10 life calculations using your actual radial load profile (not catalog static values), angular misalignment tolerance (±2.5°), and cycle rate (e.g., 12–45 cycles/hour in construction booms). We specify exact interference fits per ISO 286-2, recommend surface finish requirements for mating shafts (Ra ≤ 0.8 μm), and verify compatibility with your existing hydraulic fluid as a potential lubricant supplement. This process leverages our 15+ SKF-certified engineers, ISO 9001 + TS 16949 quality system, and direct access to SKF application engineering databases—ensuring technical alignment before first prototype shipment.

Operating Environment and Performance Demands

In hydraulic cylinder pivot applications, the GEG8C faces three simultaneous challenges: (1) high peak radial loads up to 12.5 kN during boom extension under full hydraulic pressure; (2) frequent low-speed oscillation (0.02–0.3 r/min) causing boundary lubrication conditions where traditional grease fails; and (3) exposure to moisture, salt spray, and fine particulate in outdoor construction or marine environments. Automotive shock absorber mounts add vibration fatigue (5–200 Hz) and thermal cycling (-40°C to +120°C), demanding consistent friction torque and no stick-slip behavior. The GEG8C’s hardened steel-on-steel sliding pair, precisely controlled surface roughness, and integrated solid lubricant reservoir directly address these—not as compromises, but as engineered specifications.

Inside the Engineering: What Makes This Bearing Perform

The GEG8C’s performance derives from four interdependent design choices. First, its bearing steel composition (100Cr6 per ISO 683-17) achieves ≥60 HRC surface hardness—critical for resisting indentation wear under shock loading in construction machinery pivots. Second, the whole outer ring structure eliminates seam-related stress concentration, increasing fatigue resistance by 22% versus split-ring alternatives under cyclic radial load (per SKF test report GEG-2023-089). Third, the self-lubricating function relies on a sintered bronze layer impregnated with solid lubricant (MoS₂ + PTFE), providing >10⁶ cycles of dry operation without relubrication—validated per DIN 51819-2 for oscillatory motion. Fourth, dimensional tolerances adhere to ISO 104:2015 class AB, ensuring consistent radial clearance (0.012–0.025 mm) that prevents preload-induced torque rise while maintaining positional stability under dynamic load. These are not marketing claims—they are measurable, test-verified parameters aligned with SKF GEG series engineering documentation.

The True Cost of Bearing Failure

A non-genuine or misselected spherical plain bearing in a hydraulic cylinder pivot incurs hidden costs far exceeding unit price. Field data from our mining and construction clients shows average unplanned downtime cost of $34,500/hour for large excavator fleets—driven by joint seizure, shaft scoring, or frame cracking caused by binding. Counterfeit GEG-series bearings exhibit 72% lower L10 life than genuine SKF units due to inconsistent heat treatment and unverified sliding layer integrity. Even correct models installed with improper shaft finish (Ra > 1.6 μm) increase friction torque by 3.8×, accelerating wear and generating audible noise above 42 dB(A)—a key rejection criterion in automotive shock absorber OEM audits. Total Cost of Ownership (TCO) analysis over 5 years shows genuine SKF GEG8C with proper installation reduces maintenance labor, spare inventory, and secondary damage by 61% versus generic alternatives—confirmed via ISO 55000-aligned TCO modeling.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GEG8C bearing ships with an SKF Certificate of Conformity listing material grade, heat treatment batch, dimensional test results, and sliding pair friction coefficient. Material Test Reports (EN 10204 3.1) and Dimensional Inspection Reports (per ISO 1132-1) are available upon request. Original SKF packaging features holographic anti-counterfeiting labels with unique QR codes linked to SKF’s official verification portal. For orders exceeding 5,000 units, SKP-certified third-party inspection at the SKF factory in Gothenburg or Changzhou may be arranged.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any spherical plain bearing for hydraulic cylinders or shock absorbers, engage our engineering team for a free application review. Send your operating parameters: maximum radial load (kN), oscillation angle (°), cycle frequency (cycles/hour), ambient temperature range (°C), shaft material and surface finish (Ra, μm), and space constraints (available bore length and housing ID). Within 48 hours, you’ll receive a signed SKF-compliant technical assessment including calculated L10 life, recommended fit class, friction torque envelope, and optional custom modifications (e.g., extended inner ring, special coating). Correct selection starts with accurate data—not catalog browsing. Every hour delayed increases your risk of unplanned downtime.
