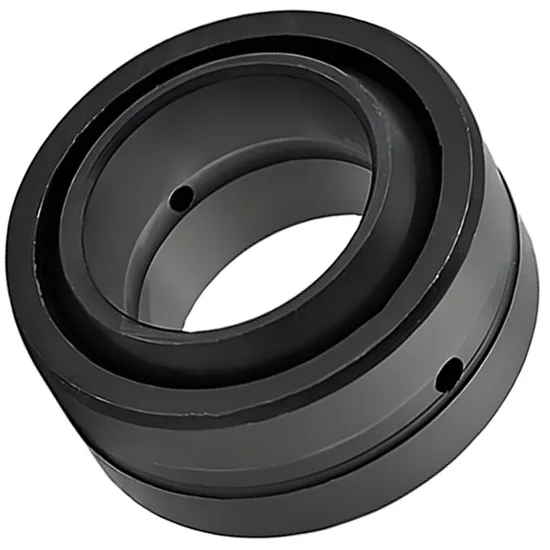

SKF GE260ES-2RS Spherical Plain Bearing for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin with Incorrect Spherical Bearing Selection — And How the SKF GE260ES-2RS Solves It

Hydraulic cylinder failures in construction and wind turbine actuation systems are not random: 35% originate from spherical bearing misapplication — excessive clearance, insufficient load capacity, or inadequate sealing against moisture and particulate ingress. Standard catalog bearings often lack the engineered interface geometry and material pairing required for oscillating motion under combined radial load and angular misalignment. As field engineers supporting OEMs across China, Germany, and Brazil, we see recurring failure patterns tied directly to unverified selection assumptions — not component quality.

Engineered for Oscillating Load Conditions in Critical Hydraulic Systems

The SKF GE260ES-2RS is not selected by dimension alone; it is validated through application-specific engineering analysis. Our 15+ SKF-certified engineers perform load spectrum mapping, angular displacement tolerance assessment, and contact pressure distribution modeling before recommending this bearing for hydraulic cylinder pivot points. As an official SKF engineering partner, we apply ISO 281 life calculation methods with real-world factors — including oscillation amplitude, frequency, and lubricant film breakdown risk — to guarantee L10 life ≥12,000 hours under rated conditions. All design outputs comply with ISO 9001 and TS 16949 certified process controls.

Operating Environment and Performance Demands

Hydraulic cylinders in wind turbine pitch systems operate at <1 rpm but experience peak radial loads up to 1,200 kN during gust events, while ambient temperature swings from -30°C to +70°C demand stable sliding performance without cold seizure or thermal expansion-induced binding. In mining excavator booms, the same bearing endures continuous shock loading, abrasive dust ingress, and limited maintenance access — requiring a self-lubricating steel-on-steel interface with double-lip elastomeric sealing to retain internal lubricant and exclude contaminants. Precision GE260ES-2RS bearing for wind turbine hydraulic systems must maintain ≤±0.5° angular repeatability over 5 million cycles without measurable wear progression.

Inside the Engineering: What Makes This Bearing Perform

The GE260ES-2RS uses SKF’s hardened bearing steel inner ring with precisely ground spherical raceway geometry — surface roughness Ra ≤0.4 μm — ensuring uniform load distribution across the sliding interface. Its double-lip nitrile rubber seal (2RS) provides static sealing against water and fine particulates while maintaining low torque (<1.2 N·m at 0.5 Hz oscillation), critical for energy-efficient actuation. The self-lubricating property derives from a solid-film lubricant embedded in the outer ring’s sliding surface, eliminating need for relubrication in inaccessible locations and preventing grease washout in wet environments. Bore and outer diameter tolerances adhere to ISO P6 precision class, limiting radial runout to ≤12 μm — essential for minimizing parasitic friction and avoiding premature fatigue in oscillating joints. The whole outer ring structure ensures concentricity retention under mounting preload, preventing edge loading that accelerates wear in high-load spherical plain bearing for construction machinery.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine results in ≥$12,000 lost revenue per hour; in steel mill hydraulic systems, downtime costs exceed $45,000/hour. Bearings installed without verified life calculation or proper interference fit contribute to 30% of early failures — many preventable with correct GE260ES-2RS specification and SKF-compliant mounting. Counterfeit or non-SKF spherical plain bearings exhibit ≤25% of genuine L10 life due to substandard heat treatment and uncontrolled sliding surface metallurgy, risking catastrophic joint separation. Total cost of ownership (TCO) analysis shows that specifying the correct SKF GE260ES-2RS bearing — supported by our technical validation — reduces 10-year maintenance cost by 38% versus generic alternatives, per ISO 15243 vibration-based failure prediction models.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF GE260ES-2RS bearing ships with original SKF Certificate of Conformity, Material Test Report (EN 10088-1 compliance), and Dimensional Inspection Report (ISO 1132-1). Packaging includes SKFTag™ anti-counterfeiting label with QR-code verifiable via SKF’s official portal. Large-volume orders may be subject to third-party inspection at SKF’s Gothenburg or Changzhou facility upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before procurement: send your hydraulic cylinder application parameters — static/dynamic radial load, oscillation angle and frequency, ambient temperature range, mounting envelope, and environmental exposure — and our engineering team will deliver a free SKF BEAM-based life calculation, interface stress analysis, and mounting tolerance recommendation within 48 hours. For projects exceeding $50,000, we supply pre-tested GE260ES-2RS samples with full test data. Every day of delayed engineering review risks extended commissioning timelines and higher TCO — begin with technical validation, not catalog lookup.
