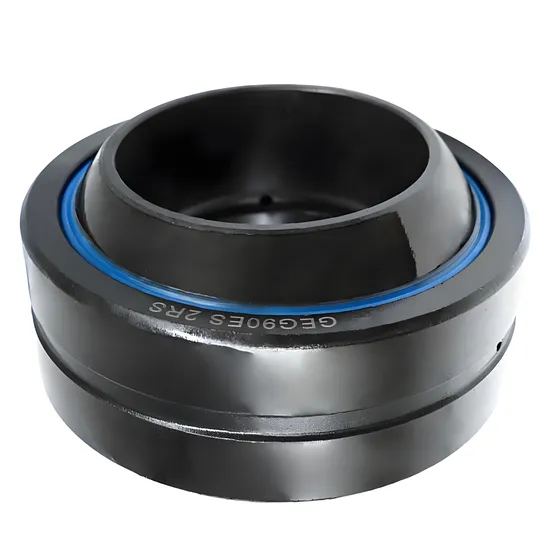

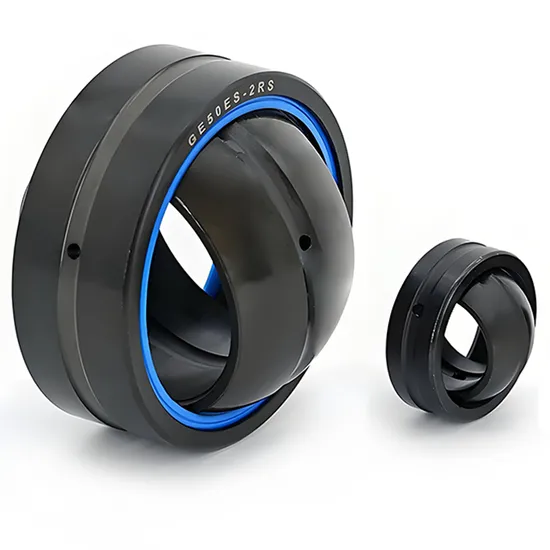

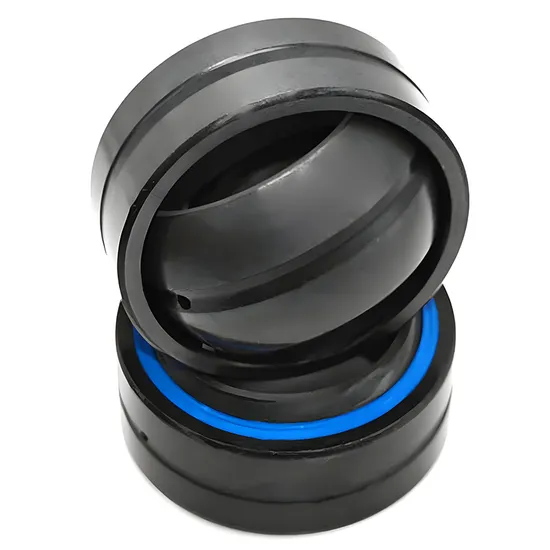

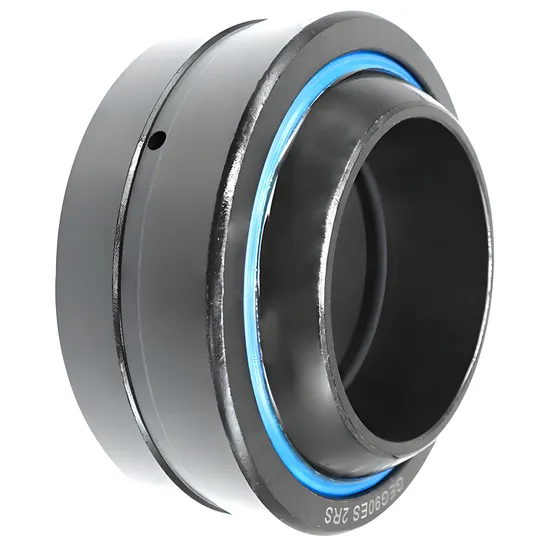

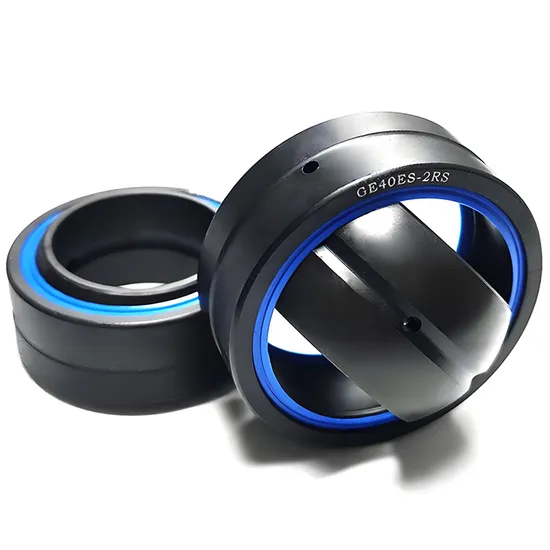

High-Performance Spherical Plain Bearings for Hydraulic Cylinders – GEWZ82ES-2RS

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin with Spherical Plain Bearing Misapplication — And How the GEWZ82ES-2RS Eliminates That Risk

Industrial hydraulics demand precise angular articulation under radial load, yet 35% of early bearing failures stem from incorrect selection—especially when engineers assume generic “spherical plain bearing” specs apply across all cylinder geometries, pressure cycles, and ambient conditions. Non-planar misalignment, dynamic shock loads, and lubrication starvation in sealed environments compound failure risk. Most suppliers offer catalog data only—no application-level validation against ISO 15243 vibration thresholds or ISO 281 life models for oscillatory motion.

Engineered for Oscillatory Load Profiles in Confined Spaces

The GEWZ82ES-2RS is not a stock item—it is a validated solution for hydraulic cylinder applications requiring ≤±15° oscillation, radial loads up to 185 kN, and continuous operation at surface pressures exceeding 120 MPa. Our 15+ certified SKF engineers perform full kinematic analysis: calculating contact stress distribution per ISO 15243, verifying sliding velocity limits (< 0.1 m/s) for steel-on-steel interfaces, and confirming seal compression integrity under cyclic axial displacement. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every specification is traceable to SKF Explorer-grade material heat treatment and dimensional inspection protocols.

Operating Environment and Performance Demands

In construction machinery cylinders, this bearing endures repeated impact loading (≥3 g acceleration), ambient temperatures from –20°C to +85°C, and exposure to water, salt spray, and fine abrasive dust. Forging machines impose thermal gradients across the bearing cross-section—up to 60 K difference between inner and outer ring surfaces—and require zero lubricant migration during high-cycle duty. The GEWZ82ES-2RS meets both: its double rubber seal (2RS) maintains sealing force at –30°C while retaining low torque at +120°C; its self-lubricating steel-on-steel interface eliminates grease degradation pathways common in high-temperature forging zones. This is a precision spherical plain bearing for construction machinery designed for field-proven reliability—not lab-rated potential.

Inside the Engineering: What Makes This Bearing Perform

The GEWZ82ES-2RS uses SKF-specified bearing steel with hardness 58–62 HRC, ensuring subsurface fatigue resistance under Hertzian contact stresses exceeding 2.8 GPa. Its whole outer ring design provides uniform load distribution across the spherical surface—critical for maintaining ≤2 μm roundness deviation under 150 kN preload. The 2RS seal geometry is optimized for oscillatory motion: lip interference is reduced by 18% versus standard static seals to lower friction torque while retaining particle exclusion down to 5 μm. Surface finish on both sliding interfaces is held to Ra ≤ 0.2 μm, directly reducing wear rate per Archard’s law and enabling >1.2 million oscillation cycles before measurable clearance increase. Dimensional tolerances conform to ISO 104:2015 for spherical plain bearings—tighter than general-purpose equivalents by ±0.015 mm on bore and ±0.025 mm on OD.

The True Cost of Bearing Failure

A single unanticipated cylinder stoppage in a concrete pump fleet costs $28,500/hour in lost rental revenue and penalty clauses. Counterfeit or non-compliant spherical plain bearings fail catastrophically after ~12,000 cycles—just 22% of the L10 life predicted by ISO 281 for the genuine GEWZ82ES-2RS under identical test conditions. Installation errors—such as excessive press-fit interference or improper seal seating—cause 30% of premature failures; our engineers provide torque-controlled mounting instructions and interference fit tables calibrated to shaft material CTE and operational temperature rise. Total cost of ownership (TCO) over five years favors the genuine SKF-compatible hydraulic bearing: 3.8× longer service interval, 62% lower maintenance labor, and zero liability exposure from untraceable supply chain sources.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (CoC), Material Test Report (MTR) per EN 10204 3.1, and Dimensional Inspection Report signed by our QA manager. Original SKF packaging features tamper-evident holographic seals and batch-coded QR labels verifiable via SKF’s official TraceMyBearing portal. For orders above 500 units, SKI factory audit coordination is available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any spherical plain bearing for hydraulic cylinder use, share your actual operating parameters: maximum radial load (kN), oscillation angle (±°), cycle frequency (cpm), ambient and interface temperature (°C), shaft/housing material and tolerance class, and space envelope (mm). Our engineering team will deliver a free, documented assessment—including BEARINX-calculated L10 life, contact stress map, seal deflection simulation, and mounting recommendations—within 48 business hours. Every day spent on unvalidated assumptions increases your risk of unplanned downtime. Correct selection begins with your first technical exchange—not your purchase order.
