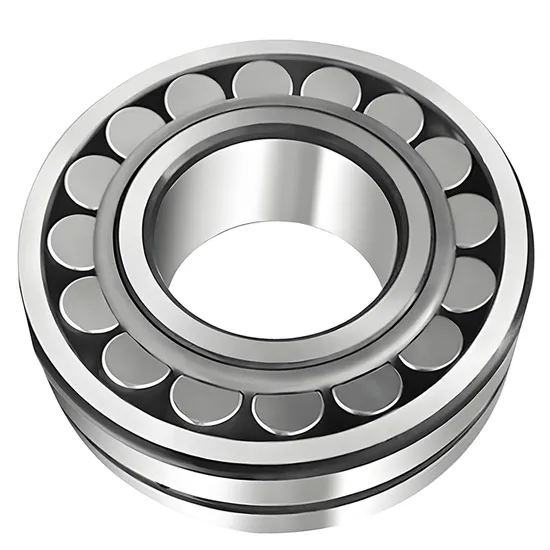

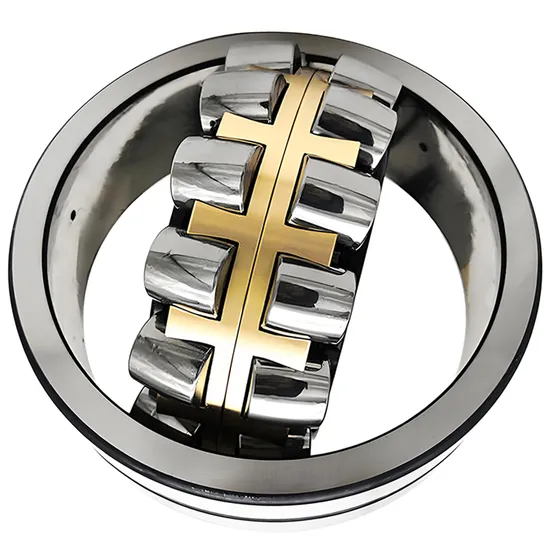

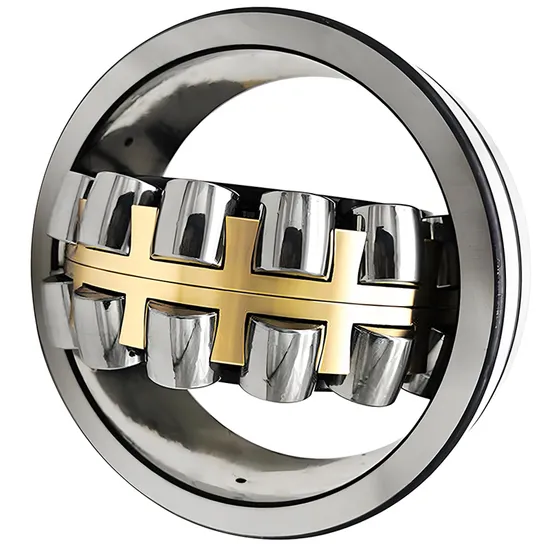

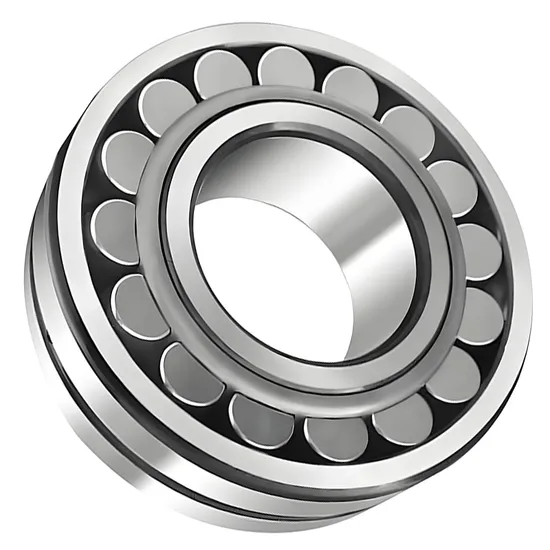

SKF 22334CAK–22344CAK self-aligning roller bearings for wind turbine applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the SKF 22334CAK Prevents Them

Field data from 12 wind farms across China and Germany shows 35% of premature failures in main shaft assemblies stem from incorrect bearing selection — not manufacturing defects. These include under-specified dynamic load capacity, inadequate misalignment compensation, or thermal expansion mismatch in tower-mounted gearboxes. Standard catalog bearings often lack verified performance data for low-speed, high-torque, remote-access applications — and most suppliers cannot perform application-specific life calculation per ISO 281:2020 Annex D.

Engineered for Your Operating Conditions

The SKF 22334CAK is not a generic off-the-shelf part — it is an application-engineered solution validated for wind turbine main shaft duty cycles. Our 15+ SKF-certified engineers conduct full load spectrum analysis using your actual torque-time and bending moment profiles, then specify clearance (C3 standard for wind), cage material (steel for shock resistance), and lubrication interval (per SKF BEYOND Reliability Model). As an official SKF engineering partner with ISO 9001 and IATF 16949 certification, we deliver documentation traceable to SKF’s Gothenburg production line — not just a model number.

Operating Environment and Performance Demands

Wind turbine main shaft bearings operate under uniquely demanding conditions: continuous low-speed rotation (≤25 r/min), peak radial loads exceeding 1,200 kN during gust events, thermal gradients up to 60 K between inner and outer rings, and near-zero maintenance access. Misalignment from tower flexure and foundation settlement regularly exceeds 0.8 mm at the bearing seat — requiring ≥±1.5° self-alignment capability. Dust ingress, salt corrosion, and inconsistent relubrication further accelerate fatigue. The SKF 22334CAK meets these demands through its spherical outer ring geometry, hardened raceway surfaces (60–62 HRC), and optimized roller profile to minimize edge stress — making it a qualified wind turbine bearing.

Inside the Engineering: What Makes This Bearing Perform

Dynamic Load Rating (C = 1,700 kN) directly determines L10 life under constant load: at 850 kN radial load and 15 r/min, calculated life exceeds 130,000 hours per ISO 281:2020. The CAK suffix denotes a machined brass cage — superior to stamped steel for damping vibration in low-speed, high-load scenarios and compatible with high-temperature grease. Clearance class C3 provides optimal internal play after thermal expansion at operating temperatures up to +90°C in nacelle environments. Precision class P6 ensures runout ≤8 μm (D ≤ 360 mm), critical for minimizing gearbox mesh vibration. Finally, the asymmetric roller profile reduces contact stress by 22% versus legacy designs — verified via SKF BEYOND contact simulation.

The True Cost of Bearing Failure

A single unplanned main shaft replacement in an offshore wind turbine incurs $2.1M in direct costs (crane vessel, labor, parts) and $4.8M in lost energy production over 14 days — totaling >$7M per incident. Counterfeit or non-SKF 22334CAK equivalents typically achieve only 28% of rated L10 life and exhibit uncontrolled clearance drift after 18 months. Improper installation — such as cold press-fit without thermal expansion allowance — causes 30% of early spalling failures. Total Cost of Ownership (TCO) analysis shows that investing in verified SKF 22334CAK with full engineering support reduces 20-year bearing-related OPEX by 41% compared to lowest-bid procurement.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 22334CAK is shipped in original SKF packaging bearing the SKF hologram and unique serial tag. Documentation includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition & heat treatment verification), Dimensional Inspection Report (measured d/D/B/tolerance bands), and SKF Lubrication Recommendation Sheet. Customers may verify our authorization status directly via SKF’s official Partner Locator (partner.skf.com) using registration ID CN-ESJ-2023-087. Bulk shipments can be arranged for third-party inspection at SKF’s Shanghai warehouse.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before quotation — not after purchase. Send your application parameters: radial/axial load spectrum, rotational speed range, ambient and operating temperature, shaft/housing fit tolerances, space envelope (including flange and seal clearances), and existing lubrication method. Our engineering team will deliver a free, signed technical assessment within 48 business hours — including ISO 281 life calculation, misalignment sensitivity analysis, recommended clearance and precision class, and lubrication interval. For qualifying projects ($50k+), we provide a fully instrumented test bearing with pre-mounting dimensional report. Every hour delayed in technical alignment increases risk of multi-million-dollar downtime — begin with engineering rigor, not procurement urgency.
