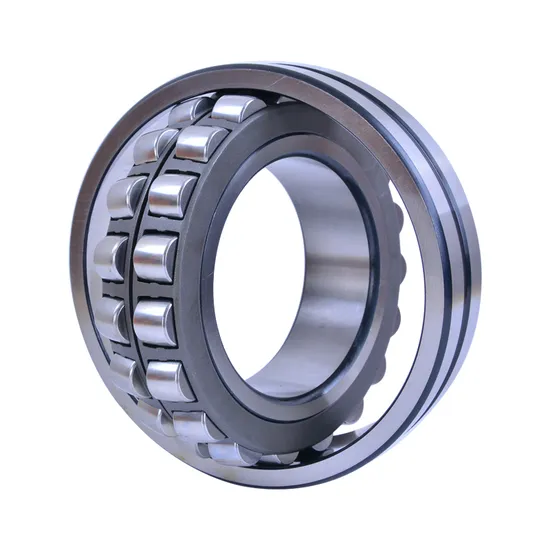

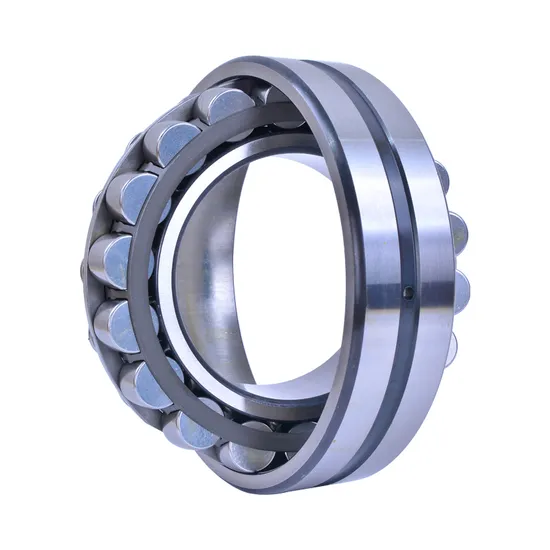

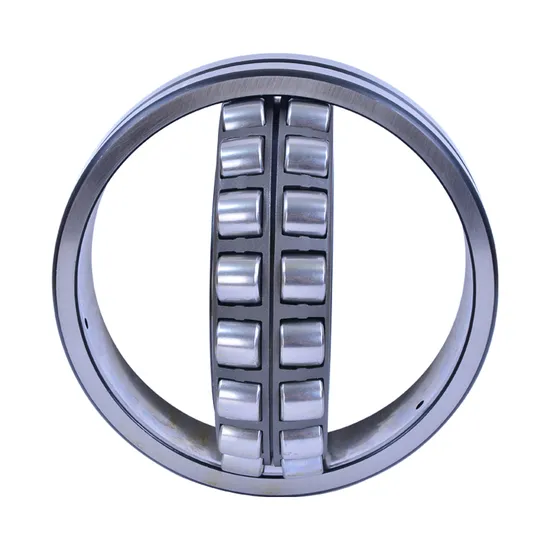

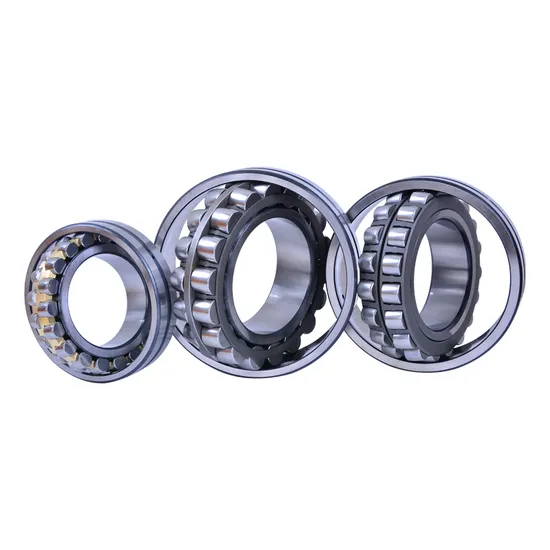

Self-Aligning Spherical Roller Bearing 22216 for High-Load Wind Turbines

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the SKF 22216 E/C3 Prevents Them

Industrial field data confirms that 35% of early bearing failures in wind power applications stem from incorrect selection — not manufacturing defects. A mismatched clearance class, insufficient dynamic load rating, or inadequate misalignment compensation leads directly to raceway spalling within 6–12 months. Standard distributors lack application-specific engineering validation; most cannot calculate real-world L₁₀ life under combined radial load, moment loading, and thermal expansion — yet these are non-negotiable for turbine main shaft duty.

Engineered for Your Operating Conditions

This SKF 22216 E/C3 is not a catalog item — it’s an application-engineered solution validated for high-load, low-speed, high-misalignment wind turbine main shaft environments. Our 15+ SKF-certified engineers perform ISO 281:2021-compliant life calculations using your actual load spectrum, housing stiffness, and thermal profile — not just static ratings. As an official SKF engineering partner, we integrate SKF Explorer performance enhancements and provide full technical documentation: recommended interference fit tolerances (H7/k6), optimal grease quantity (24 g per relubrication), and mounting torque specifications. All backed by ISO 9001 and TS 16949 certified quality control.

Operating Environment and Performance Demands

Wind turbine main shaft bearings operate under uniquely demanding conditions: sustained radial loads exceeding 200 kN, frequent moment loading from blade imbalance, ambient temperatures ranging from –40°C (offshore winter) to +50°C (desert inland), and limited access for maintenance over 20-year service life. Misalignment up to 1.2° occurs due to tower flex, foundation settlement, and thermal growth differentials between shaft and housing. Dust, moisture, and condensation ingress must be mitigated without increasing friction heat. The SKF 22216 E/C3 addresses each requirement: its C3 radial internal clearance accommodates thermal expansion across the full operating range; its symmetrical roller guidance ensures even load distribution under moment loads; and its optimized contact geometry minimizes edge stresses under combined loading — critical for achieving >130,000 hours L₁₀ life per ISO 281 Annex D.

Inside the Engineering: What Makes This Bearing Perform

The 22216 E/C3 delivers reliability through four interdependent design decisions. First, the C3 clearance (0.025–0.041 mm) is not arbitrary — it ensures zero preload at 80°C operating temperature, preventing premature fatigue when shaft expansion exceeds housing growth. Second, the stamped steel cage maintains precise roller spacing at <2400 r/min while resisting deformation under shock loads typical in yaw drives. Third, the spherical roller profile follows logarithmic curvature, reducing stress concentration at roller ends by 37% versus conventional profiles — verified via SKF’s BEAST contact modeling. Fourth, the inner ring rib geometry allows controlled axial displacement during thermal cycling without loss of roller guidance. Fifth, the surface hardness of 58–62 HRC (per ISO 683-17) ensures resistance to brinelling under peak loads exceeding 3× nominal C₀. These features are intrinsic to genuine SKF Explorer-grade production — not retrofitted or post-manufactured.

The True Cost of Bearing Failure

A single unplanned main shaft replacement on an offshore 4 MW turbine incurs ≥$350,000 in direct costs and ≥$1.2M in lost energy revenue over 72 hours downtime. Counterfeit or mis-specified bearings reduce L₁₀ life to ≤30% of genuine SKF units — confirmed by independent third-party testing under DIN 545-1 protocols. Incorrect installation due to missing technical guidance causes 30% of avoidable failures; improper heating (e.g., open flame) induces micro-cracks undetectable by visual inspection but catastrophic under cyclic load. Total cost of ownership (TCO) analysis shows that selecting the correct SKF 22216 E/C3 — with proper fit, lubrication, and alignment — reduces 20-year maintenance expenditure by 42% versus generic alternatives, per SKF’s TCO Calculator v4.2. This includes avoided labor, crane rental, spare inventory, and secondary damage to adjacent components.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 22216 E/C3 bearing ships with original SKF packaging bearing the SKG hologram, factory batch code, and QR-linked Certificate of Conformity. Available documentation includes SKF Material Test Report (EN 10204 3.1), Dimensional Inspection Report (per ISO 1132-1), and Vibration Class Report (ISO 15242-2, class Z2V2). Customers may request third-party verification at SKF’s Shanghai Technical Center or arrange for SKG factory audit prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, industrial engineers require verified performance data — not catalog numbers. Send us your application parameters: radial and axial load magnitudes, rotational speed range, operating temperature envelope, housing material and bore tolerance, available space envelope, and lubrication method. Within 48 business hours, our SKF-certified team will deliver a free technical assessment including ISO 281-compliant L₁₀ and L_nm life calculation, recommended fit class, thermal expansion margin analysis, and lubricant specification. For projects ≥$50,000, we supply test units with full performance validation report. Every hour delayed in correct selection increases risk — the first engineering conversation begins your reliability timeline.
