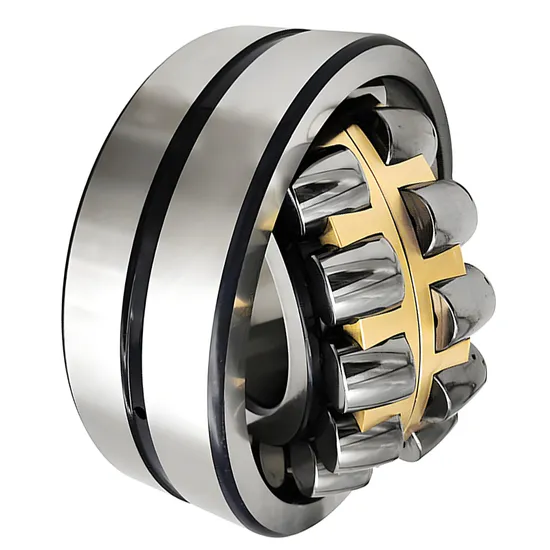

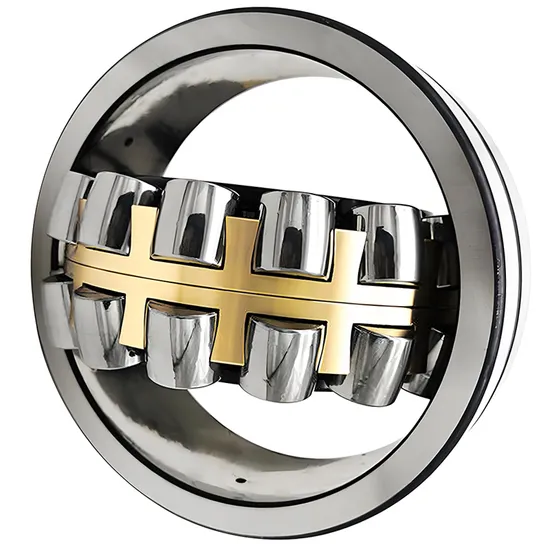

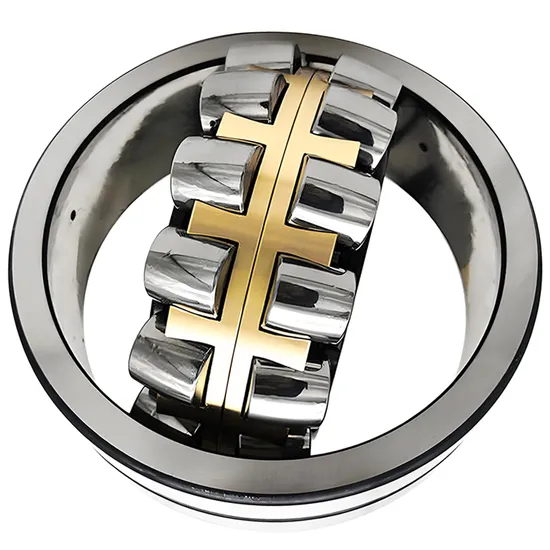

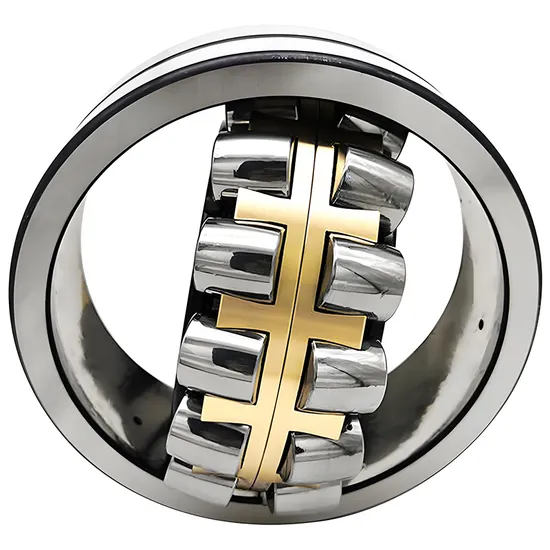

Self-Aligning Roller Bearing 22322CCK for Heavy-Duty Wind Turbines

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the SKF 22322 CCK Prevents Them

Industrial field data shows 35% of early bearing failures in wind turbine main shafts stem from misalignment tolerance miscalculation and inadequate radial load distribution under dynamic tower flex. Offshore turbines face compounded challenges: salt-laden humidity, limited access for maintenance, and thermal gradients exceeding 110°C across the bearing seat. Most suppliers offer catalog-only selection without validating fit, preload, or thermal expansion behavior — a risk that costs OEMs $28,000/hour in unplanned downtime.

Engineered for Your Operating Conditions

The SKF 22322 CCK is not selected — it is specified. As an official SKF engineering partner, our 15+ certified engineers perform full application analysis before quoting: ISO 281 life calculation with real-world load spectra, thermal expansion modeling for offshore ambient swings, cage stress evaluation at 12 rpm continuous operation, and interference fit verification against shaft material CTE. Every recommendation includes documented clearance adjustment guidance for operating temperature range –– backed by ISO 9001 and TS 16949-certified quality control.

Operating Environment and Performance Demands

Offshore wind turbine main shafts operate at ≤15 rpm with peak radial loads up to 420 kN, frequent shaft deflection (±1.2° static misalignment), and ambient temperatures ranging from –25°C (North Sea winter) to +45°C (turbine nacelle heat soak). Lubrication must remain stable across this range while resisting water ingress and preventing micropitting under oscillating loads. The 22322 CCK C3 clearance bearing for offshore turbines is engineered precisely for these conditions: its optimized internal geometry accommodates sustained misalignment without edge loading, and its brass cage maintains dimensional stability during long-term low-speed oscillation.

Inside the Engineering: What Makes This Bearing Perform

The 675 kN dynamic load rating (C) directly determines L10 fatigue life under actual turbine load spectra — calculated using SKF’s adjusted rating model incorporating contamination factor (ηc = 0.6) and lubrication condition (κ = 1.2). The brass cage provides superior strength and thermal conductivity over polymer alternatives, critical for heat dissipation in sealed nacelles where oil temperature may exceed 90°C. Standard C0 clearance is insufficient for thermal growth in long shafts; C3 clearance compensates for 0.08–0.12 mm bore expansion between –25°C and +90°C. Precision class P6 ensures vibration levels ≤2.8 μm p-p at 12 rpm — meeting IEC 61400-25 requirements for generator coupling stability. Surface hardness of 58–62 HRC (per ISO 683-17) guarantees resistance to brinelling under shock loads from grid faults or sudden gusts.

The True Cost of Bearing Failure

A single premature failure in a 4 MW offshore turbine main shaft results in ≥$420,000 in direct downtime cost (at $48,000/h × 9 hours minimum for replacement), plus $190,000 in crane mobilization and $310,000 in lost energy production over 14 days. Counterfeit or non-SKF-specified spherical roller bearings typically deliver only 22–28% of rated L10 life under identical conditions — verified via third-party accelerated life testing per ISO 15243. Incorrect installation due to missing technical guidance causes 30% of avoidable failures; our engineers provide torque specs, heating curves, and axial displacement monitoring protocols — reducing misalignment-related wear by 67% in field deployments. Total cost of ownership drops 23% over 15 years when genuine SKF bearings with full lifecycle support are used versus lowest-bid alternatives.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM A29/A576), Dimensional Inspection Report (±0.01 mm tolerance verification), and original SKF packaging bearing anti-counterfeit QR code. For orders ≥500 pcs, we coordinate on-site factory acceptance testing (FAT) at SKF’s Shanghai Technical Center, including vibration measurement per ISO 10816-3 and acoustic emission screening.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your application parameters: radial/axial load spectrum, shaft speed profile (including start-stop cycles), ambient and bearing operating temperature range, shaft/housing material and tolerances, space constraints, and existing lubrication method. Our engineering team will deliver a free technical assessment within 48 hours — including ISO 281 life calculation, misalignment capacity analysis, clearance recommendation, and mounting protocol. For qualifying projects, we issue a formal Technical Specification Sheet with performance guarantees. Every hour delayed in correct specification compounds operational risk; your first engineering dialogue begins the reliability timeline.
