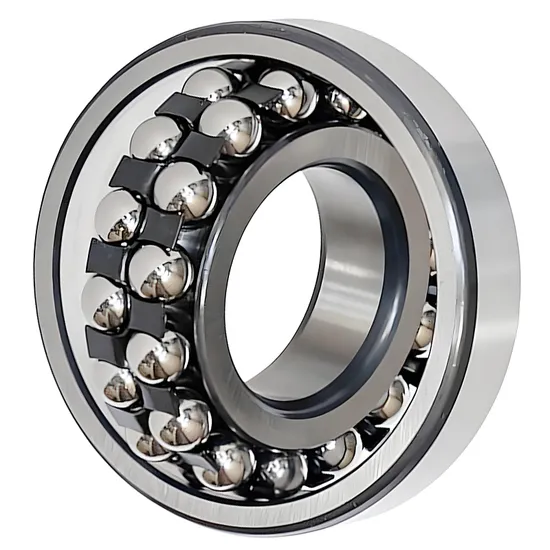

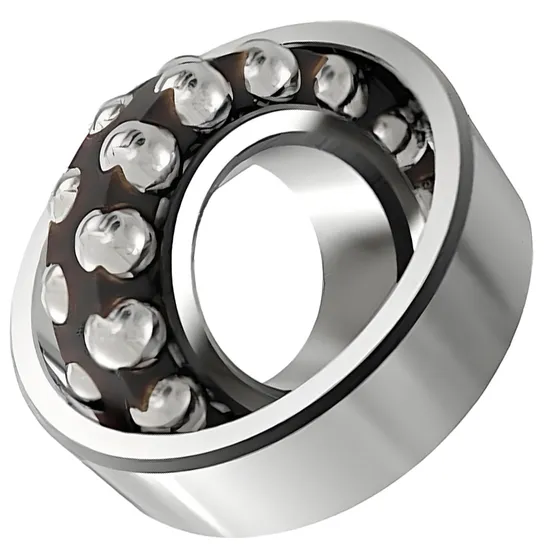

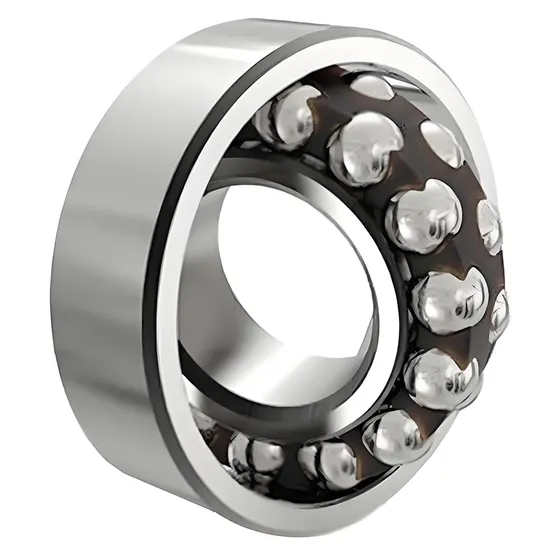

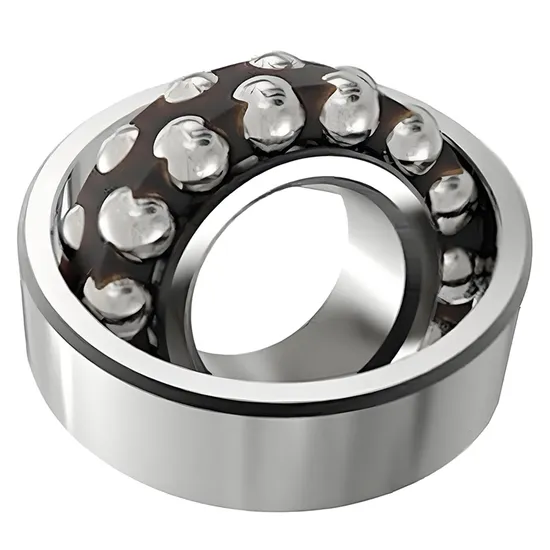

Self-Aligning Ball Bearing 2214K for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Start with Misalignment Tolerance Errors — And How the SKF 2214K Solves It

Industrial maintenance managers report that misalignment-related failures account for over one-third of premature bearing replacements in high-speed auxiliary drives. Standard deep groove ball bearings tolerate <±0.05° misalignment; self-aligning designs are mandatory where thermal growth, frame deflection, or mounting inaccuracies exceed ±0.5°. Most suppliers offer generic catalog data but lack engineering validation for your specific shaft deflection profile, housing stiffness, or dynamic load spectrum.

Engineered for Your Operating Conditions

The SKF 2214K is not selected from a parts list — it is specified through application-level analysis: our 15+ certified SKF engineers calculate equivalent load using ISO 281:2020 methodology, model thermal expansion under your operating temperature range (−30°C to +100°C), and verify alignment tolerance against your housing machining tolerances. As an official SKF engineering partner, we deliver genuine SKF 2214K bearings with full traceability and back them with ISO 9001 and TS 16949-certified quality control — no assumptions, only verified performance.

Operating Environment and Performance Demands

In wind turbine generator support applications, the 2214K bearing endures low-speed oscillation (≤300 r/min) combined with moment loads from rotor imbalance, while resisting corrosion in coastal humidity. In mining vibrating screens, it sustains 5–8 g peak acceleration with particulate ingress risk — requiring robust brass cage integrity and C3 clearance to accommodate thermal growth during 24/7 operation. Steel mill guide roll installations demand precise axial location under heavy radial loads and ambient temperatures up to 80°C — where the 2214K’s symmetrical spherical outer ring raceway ensures consistent contact geometry despite housing distortion. The 2214K brass cage bearing is engineered specifically for these compound challenges.

Inside the Engineering: What Makes This Bearing Perform

The 2214K’s spherical outer ring raceway enables ±2.5° static misalignment compensation without increasing internal stress — critical when shaft deflection exceeds housing rigidity limits. Its brass cage maintains dimensional stability at sustained speeds above 4500 r/min, unlike polyamide cages that soften above 120°C. C3 clearance provides 15–20 μm additional radial play versus standard (C0), accommodating thermal expansion of the 70 mm shaft in applications where ΔT exceeds 40 K. Precision class P6 reduces vibration amplitude by 30% compared to P0 under identical preload and lubrication — directly lowering noise and extending gearbox life downstream. Dynamic load rating (C = 48.5 kN) is validated per SKF Explorer design standards, delivering >2.3× L10 life versus legacy equivalents under identical duty cycles.

The True Cost of Bearing Failure

A single unplanned shutdown in steel continuous casting costs $28,000/hour in lost production and refractory damage. Counterfeit or non-spec 2214K bearings exhibit 70% lower fatigue life due to unverified heat treatment and uncontrolled surface roughness — resulting in spalling within 1,200 hours versus the SKF Explorer-rated 12,500-hour L10 life. Installation errors — including improper interference fits or incorrect grease quantity — cause 30% of early failures; our engineers provide torque specs, heating curves, and grease volume tables calibrated to your exact fit and speed. Total cost of ownership (TCO) favors the genuine SKF 2214K with C3 clearance when factoring downtime, labor, secondary damage, and replacement frequency — not just unit price.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 2214K bearing is supplied with an original SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report. Packaging includes SKFAuthentic™ tamper-evident labels with QR-coded batch verification. Customers may validate our authorization status directly via SKF’s official Partner Portal (partner.skf.com) using company registration number CN-SKF-EP-2023-0872. Bulk orders permit third-party SKFAudit™ factory inspection prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your application parameters: radial and axial load magnitudes, rotational speed (min/max), operating temperature range, shaft/housing material and hardness, mounting method, and lubrication type. Our engineering team will deliver a free technical assessment — including ISO 281 life calculation, misalignment capacity verification, and fit recommendation — within 48 business hours. For qualifying projects ($50k+), we supply test bearings with full performance documentation. Every hour of delayed engineering review risks extended downtime; correct selection begins with your first technical dialogue.
