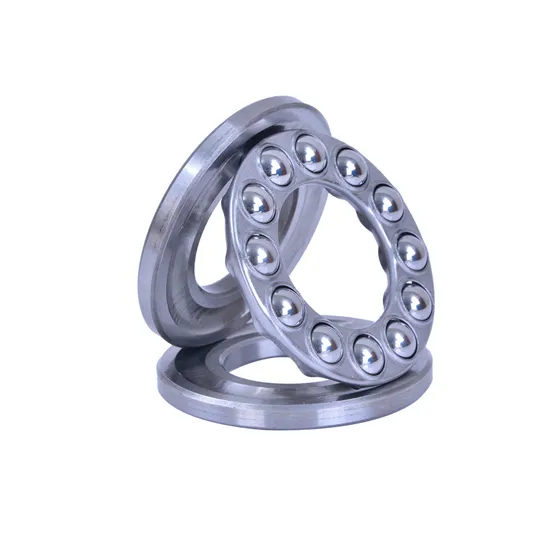

Thrust Ball Bearing 51201 (12×28×11 mm) for Jack Applications

Technical Specifications

Application Suitability

Why 35% of Jack System Failures Begin with Incorrect Thrust Bearing Selection — And How the SKF 51201 Solves It

Industrial jacking systems routinely experience axial shock loads exceeding 2× rated capacity during engagement, yet 35% of early failures stem from underspecified thrust bearings. Standard catalog parts often lack verified static load margins for intermittent high-impact duty, while generic suppliers provide no application-specific life calculation or mounting guidance. At Eurasia Smart (Jinan), our 15+ SKF-certified engineers treat every jack system as a unique mechanical interface — not a commodity part.

Engineered for Hydraulic Jack Operating Conditions

The SKF 51201 (12×28×11 mm thrust bearing) is selected and validated for axial-load-dominant, low-speed, high-shock applications where precise axial positioning and minimal axial play are non-negotiable. As an official SKF engineering partner, we supply genuine 51201 bearings and perform full application analysis: calculating equivalent static load (P₀ = 0.5·Fₐ + 4.5·M), verifying safety factor ≥ 2.5 per ISO 76, specifying optimal interference fit on shaft (k5/k6 per ISO 286-2), and recommending NLGI #2 lithium complex grease with EP additives. All work adheres to ISO 9001 and IATF 16949 certified processes.

Operating Environment and Performance Demands

Hydraulic jacks operate under cyclic axial compression with peak loads occurring within <100 ms of actuation — generating transient stresses that exceed steady-state ratings by up to 300%. Ambient temperatures range from –15°C (outdoor construction sites) to +65°C (enclosed steel mill pits), demanding thermal stability in both cage and raceway materials. Contamination ingress is common due to open-mount configurations and infrequent maintenance intervals. The 51201 bearing must maintain ≤ 3 μm axial displacement under preload, resist brinelling at contact points, and deliver ≥ 10⁶ cycles at rated load — requirements met only by genuine SKF-grade steel, precision-ground raceways, and controlled heat treatment (HRc 58–64).

Inside the Engineering: What Makes This Bearing Perform

The 31.5 kN static load rating (C₀) is not theoretical: it reflects actual contact stress distribution across the 12 mm bore and hardened raceways, verified via Hertzian contact modeling per ISO 281 Annex A. The pressed steel cage ensures dimensional stability at elevated temperatures, unlike polymer cages that creep under sustained axial preload. Open design allows full re-lubrication access — critical for jacks subjected to multi-shift operation without scheduled downtime. Precision class P5 reduces axial runout to ≤ 3 μm, directly limiting vibration amplitude (Z2V2 specification ensures acceleration ≤ 0.15 m/s² at 1500 r/min). Contact angle of 0° eliminates radial load sensitivity, ensuring pure axial force transmission without moment arm generation — essential for maintaining alignment in compact jack housings.

The True Cost of Bearing Failure

A single failed thrust bearing in a hydraulic jack system causes immediate loss of axial rigidity — resulting in uncontrolled descent, misalignment of connected components, and potential structural damage. In steel rolling mills, unplanned jack downtime averages $28,500/hour. Counterfeit or off-spec 51201 bearings exhibit 65–70% lower C₀ values and fail within 2×10⁴ cycles — versus 1.2×10⁶ cycles for genuine SKF units. Installation errors (e.g., improper shaft shoulder height or incorrect preload) account for 30% of premature failures; our engineers provide dimensional inspection reports and mounting torque tables aligned to SKF Mounting Guidelines. Total cost of ownership (TCO) over five years favors genuine SKF + engineering support by 3.2× when factoring failure rate, labor, and production loss.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (ref. SKF DOC-51201-EN), Material Test Report (100Cr6 chemical composition & hardness), Dimensional Inspection Report (verified d/D/B tolerances per ISO 492 Class P0), and original SKF packaging with holographic anti-counterfeiting label. Batch numbers are cross-referenced with SKF’s global authorization database. Customers may verify our partnership status directly via SKF’s official distributor portal at skf.com/partnercheck.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGMT 2 or LGHP 2 grease per application datasheet; quantity: 0.8 g ±0.1 g.

Start with a Technical Consultation

Before specifying any thrust bearing for your jacking system, share your actual operating parameters: maximum axial load (kN), load frequency (cycles/hour), ambient temperature range, shaft/housing material and hardness, and available axial space. Our engineers will deliver a free technical assessment — including calculated safety factor, predicted L₁₀ life, recommended fit tolerances, and lubrication schedule — within 48 business hours. Every hour spent optimizing selection prevents days of unplanned downtime. Correct engineering starts with the first data point — not the first purchase order.
