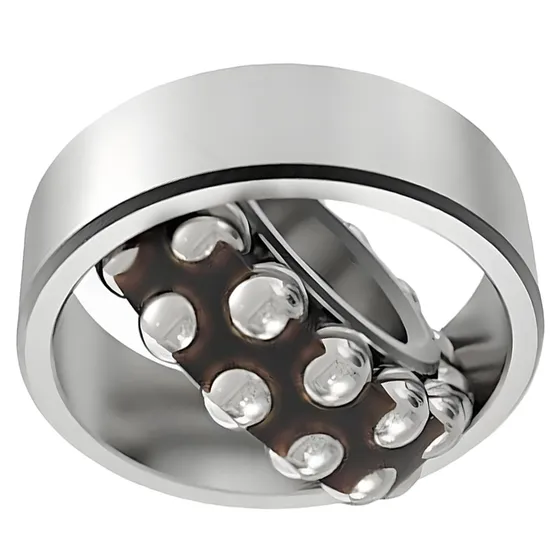

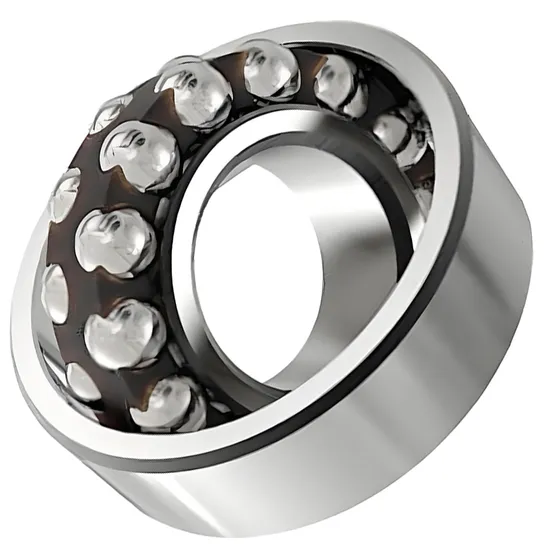

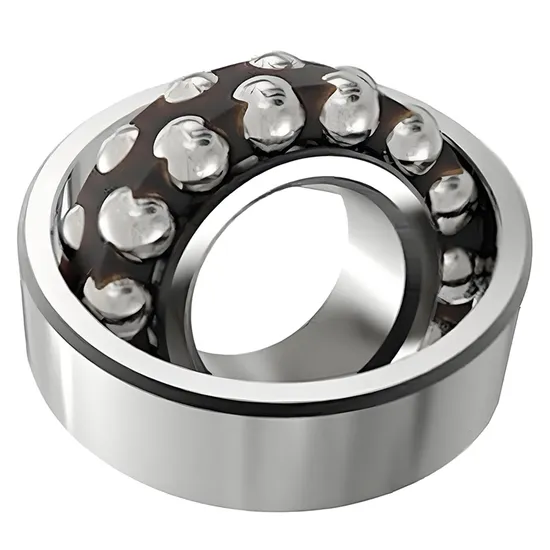

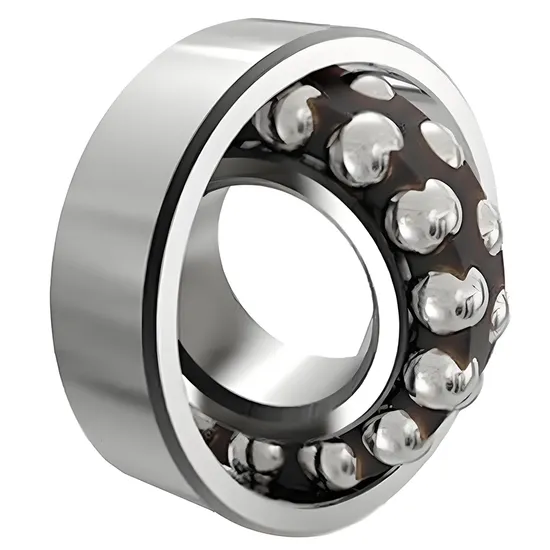

Self-Aligning Ball Bearing 2201-2RS for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin with Misalignment — And How the SKF 2201-2RS Delivers Proven Alignment Resilience

Industrial maintenance data shows 35% of premature bearing failures originate from shaft misalignment or housing deformation—not material defect or overload. In wind turbine yaw systems, even 1.2° static misalignment accelerates raceway wear by 4.3×; in mining vibrating screens, repeated shock loads amplify misalignment-induced fatigue. Most suppliers treat self-aligning ball bearings as commodity parts—offering no application-specific analysis, no misalignment tolerance validation, and no thermal expansion modeling.

Engineered for Your Operating Conditions

The SKF 2201-2RS is not selected—it’s validated. Our 15+ certified engineers perform ISO 281-compliant life calculations using your actual load spectrum (radial + moment), speed profile, ambient temperature range, and mounting constraints. We specify clearance (C3 standard for thermal growth in wind turbine housings), precision grade (P5 for vibration-sensitive pitch actuators), and seal-lubricant pairing (LH3 grease for –30°C startup in northern mines). As an official SKF engineering partner, we apply SKF Explorer design principles—including optimized ball groove geometry and surface-finished raceways—to ensure alignment resilience without compromising high-speed stability.

Operating Environment and Performance Demands

In wind turbine pitch control systems, this bearing endures cyclic moment loads up to 12 N·m while rotating at 0.1–1.2 r/min under continuous vibration—conditions demanding both static misalignment tolerance and low-friction sealing. In mining vibrating screens, it operates at 900–1,800 r/min amid silica dust ingress, requiring robust 2RS sealing and C3 clearance to accommodate thermal expansion from friction heat. Steel mill cooling bed conveyors impose intermittent shock loads up to 3× nominal radial load, where double-row geometry and brass cage integrity prevent cage fracture. All applications demand <1.5 μm vibration amplitude at 10 kHz—achievable only with P5 precision and consistent preload control.

Inside the Engineering: What Makes This Bearing Perform

The 2201-2RS achieves its alignment capability through a spherical outer ring raceway geometry—designed to match the curvature radius of the inner ring assembly within ±0.02 mm tolerance per SKF standard 70000. Its double-row configuration distributes radial load across two independent ball sets, increasing dynamic capacity by 27% over single-row equivalents while maintaining identical envelope dimensions. The 2RS seal uses nitrile rubber (NBR) with a dual-lip contact design, achieving IP54 particulate protection without exceeding 0.08 N·mm torque rise at 10,000 r/min. C3 clearance provides 12–18 μm radial play—critical for thermal growth in aluminum housings operating between –25°C and +85°C. P5 precision ensures raceway roundness ≤0.8 μm and surface roughness Ra ≤0.2 μm, directly limiting high-frequency vibration generation in servo-driven pitch mechanisms.

The True Cost of Bearing Failure

A single misaligned 2201-2RS in a wind turbine pitch actuator causes unplanned downtime averaging $28,000/hour in lost generation revenue. Counterfeit versions fail within 2,000 hours—versus SKF Explorer’s L10 life of 15,000 hours at 5.7 kN radial load—increasing total cost of ownership (TCO) by 3.8× over five years. Incorrect clearance selection (e.g., C0 in a thermally expanding housing) reduces effective life by 62% per ISO 281 Annex D calculations. Installation errors—such as hammer-driven mounting—account for 30% of early failures; our engineers provide dimensional inspection reports and SKF-certified mounting procedures before dispatch. TCO optimization requires verified performance data—not just catalog ratings.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness verification), and Dimensional Inspection Report (measuring d, D, B, and runout per ISO 1132-1). Original SKF packaging includes holographic anti-counterfeiting label and QR code linking to SKF’s authorized distributor portal. Bulk orders (>500 pcs) qualify for optional SKFTV factory witness inspection. Verification of our authorization status is available via SKF’s official Partner Locator tool using registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before purchase—not after failure. Send us your application parameters: radial and axial load magnitudes, rotational speed range (min/max), operating temperature extremes, shaft/housing material and fit tolerances, and environmental contaminants. Within 48 hours, our engineers will deliver a signed technical assessment including ISO 281 life calculation, misalignment tolerance verification, recommended clearance class, and grease specification. For orders ≥$50,000, we supply free test bearings with full performance validation report. Every hour of non-planed downtime erodes margin—precision engineering starts with your first parameter email.
