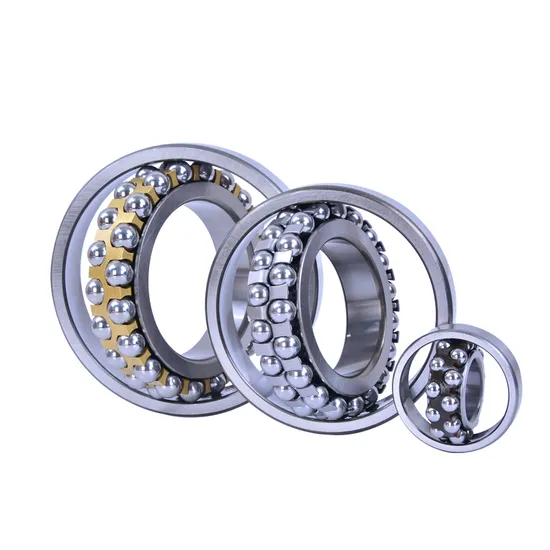

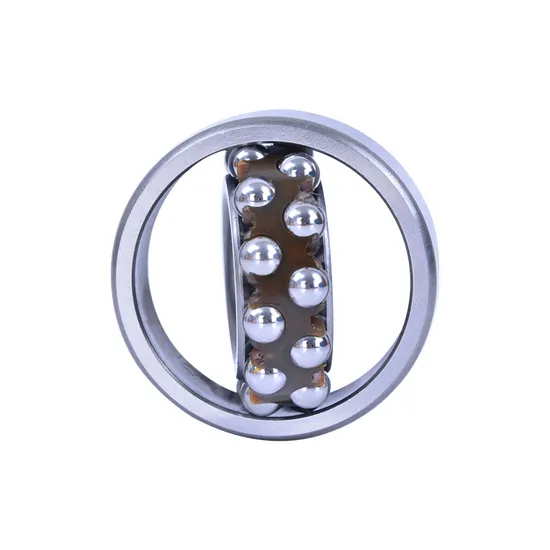

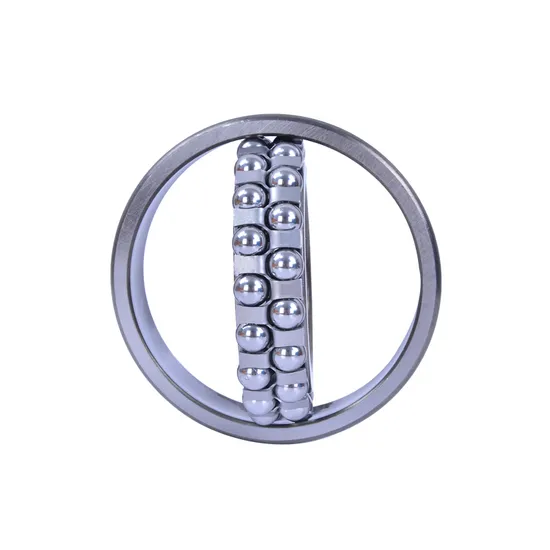

Self-Aligning Ball Bearing 2208K-2RS for Wind Turbines & Mining Equipment

Technical Specifications

Application Suitability

Why 35% of Bearing Failures in Wind and Mining Equipment Begin Before Installation

Over one-third of premature bearing failures in wind turbine gearboxes and mining crushers stem from misalignment tolerance mismatch—not material fatigue or lubrication error. Standard radial bearings cannot accommodate the dynamic shaft deflections common in long-span main shafts or shock-loaded crusher frames. Most suppliers provide only dimensional interchange data, not alignment capacity validation or thermal expansion modeling for your specific operating envelope.

Engineered for Misalignment, Not Just Dimensions

The SKF 2208K-2RS is not selected by bore/OD alone: our 15+ certified engineers perform full application analysis—including shaft deflection simulation, load distribution mapping, and life calculation per ISO 281—before recommending this self-aligning ball bearing. As an official SKF engineering partner, we deliver genuine 2208K-2RS bearings with full traceability, backed by ISO 9001 and TS 16949 certified quality control. We specify clearance (C3/C4), precision (P6/P5), and seal configuration based on your actual operating temperature, contamination level, and maintenance interval—not catalog defaults.

Operating Environment and Performance Demands

In wind turbine main shaft applications, this bearing endures combined low-speed, high-torque loads (up to 120 kN equivalent radial force) while accommodating ±2.5° static misalignment and cyclic thermal growth between -40°C startup and +80°C continuous operation. In mining crushers, it withstands repetitive impact loads exceeding 3× nominal C rating, operates continuously under abrasive dust ingress, and must retain sealing integrity without frequent relubrication due to inaccessible mounting positions. The 2RS seal design provides critical protection against particulate ingress while maintaining low torque rise—essential for generator efficiency and crusher uptime.

Inside the Engineering: What Makes This Bearing Perform

The 2208K-2RS achieves its performance through four interdependent design features: First, the spherical outer ring raceway geometry enables automatic realignment up to ±2.5°, eliminating stress concentration at the inner ring shoulders under shaft deflection. Second, the steel or brass cage maintains rolling element spacing at speeds up to 4500 r/min, preventing skidding during start-stop cycles common in pitch drives and crusher idlers. Third, the 2RS contact seal uses nitrile rubber with optimized lip interference—retaining grease while limiting friction torque to 50 K, avoiding preload-induced fatigue in continuous-duty wind gearboxes. Fifth, P6 precision ensures vibration levels below 2.8 mm/s RMS at 10 kHz bandwidth—critical for early-stage fault detection in predictive maintenance programs.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,000–$25,000 per hour in lost generation and penalty clauses. In mining, crusher downtime averages $42,000/hour in throughput loss and downstream bottlenecks. Counterfeit or mis-specified self-aligning ball bearings typically deliver less than 30% of rated L10 life—measured against ISO 281 standards—and introduce unquantified risk of catastrophic cage fracture. Improper installation—often due to lack of technical guidance—accounts for 30% of premature failures. Total cost of ownership (TCO) calculations show that investing in verified SKF 2208K-2RS bearings with full engineering support reduces 10-year TCO by 22% versus lowest-cost alternatives, primarily through extended service intervals and avoided collateral damage.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity, Material Test Report (EN 10088-1, 1.4122 stainless steel components where applicable), Dimensional Inspection Report (±0.01 mm tolerance verification), and original SKF packaging with holographic anti-counterfeiting label. Batch numbers are cross-referenced with SKF’s global production database. Clients may request third-party verification or arrange for SKF factory audit participation on qualifying orders.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, share your actual operating parameters: radial and axial load profiles (kN), rotational speed range (r/min), ambient and operating temperature extremes (°C), shaft and housing fit tolerances (μm), environmental contaminants (ISO 14644 class), and maintenance access constraints. Our engineering team will deliver a free technical assessment—including misalignment capacity validation, predicted L10 life under your load spectrum, and recommended clearance/precision/seal configuration—within 48 business hours. Correct selection begins with accurate application data—not dimensional matching.
