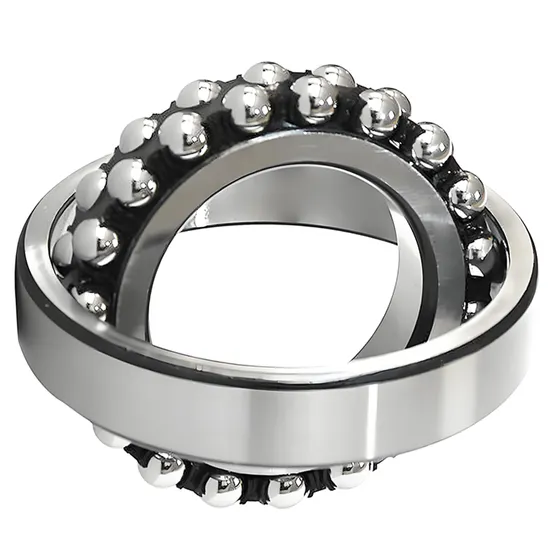

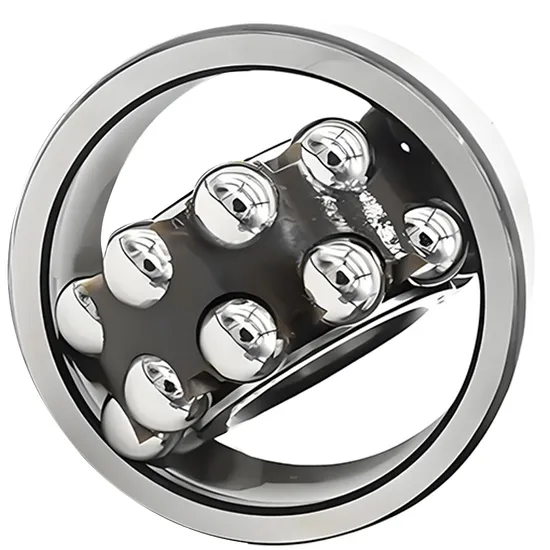

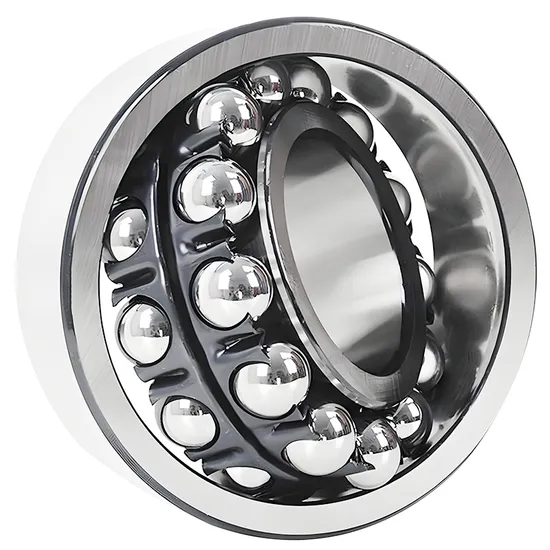

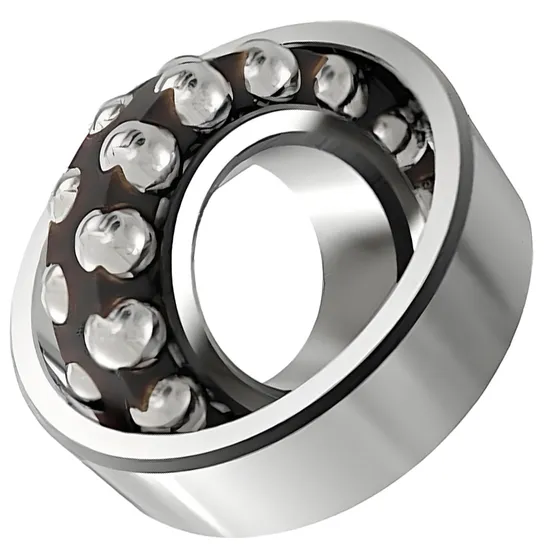

Self-Aligning Ball Bearing 1206K/1207 for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin With Misalignment — And How the SKF 1206K/1207 Self-Aligning Ball Bearing Prevents It

Industrial field data confirms that misalignment-induced fatigue accounts for over one-third of premature self-aligning bearing failures in mining conveyors and wind turbine yaw systems. Standard deep groove ball bearings tolerate only ±0.1° misalignment; exceeding this accelerates raceway wear and reduces L₁₀ life by up to 60%. Most suppliers offer generic alignment solutions without load-specific deflection modeling or thermal growth compensation — a critical gap when operating across –30°C winter startups and +90°C summer ambient conditions.

Engineered for Real Industrial Misalignment Conditions

The SKF 1206K/1207 self-aligning ball bearing is specified not as a catalog item, but as an engineered solution validated against ISO 281 lifetime standards and SKF’s proprietary thermal-mechanical simulation models. Our 15+ certified engineers perform full application analysis — including shaft deflection under radial load, housing deformation at operating temperature, and dynamic misalignment tracking during startup/shutdown cycles — before recommending clearance (C3/C4), cage material (brass vs. steel), and sealing configuration. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every recommendation carries full traceability to SKF factory test reports and dimensional inspection records.

Operating Environment and Performance Demands

In wind turbine yaw drives, this bearing endures cyclic torsional loads up to 45 kN·m, low-speed oscillation (0.1–3 r/min), and exposure to salt-laden coastal air — requiring corrosion-resistant surface treatment and sealed brass cage integrity. In mining vibrating screens, it sustains 8–12 g acceleration peaks, abrasive dust ingress (ISO 14683 Class 7), and continuous operation above 60°C housing temperature — demanding precise C4 clearance to accommodate thermal expansion and brass cage retention under shock loading. Steel mill roller tables impose heavy radial loads (≥12 kN) with intermittent water quenching — necessitating P5 precision to maintain alignment under rapid thermal cycling and minimize vibration-induced fatigue.

Inside the Engineering: What Makes This Bearing Perform

The 60° contact angle enables stable load distribution across both rows while maintaining self-alignment capability up to ±2.5° — verified per SKF standard test protocol TPL-120. Brass cages provide superior dimensional stability at elevated temperatures (>80°C) versus stamped steel, reducing cage deformation risk during start-up surge. P5 precision ensures radial runout ≤5 μm, critical for minimizing vibration amplitude in gear-coupled applications where ISO 2372 Class N (≤2.8 mm/s RMS) is mandated. C3 clearance compensates for typical shaft expansion coefficients (12 × 10⁻⁶/K) across ΔT = 70 K industrial duty cycles. Dynamic load rating (C = 15.8 kN) directly feeds into L₁₀ life calculation using SKF’s adjusted rating life model (a₁·a₂₃·(C/P)ᵖ), where p = 3 for ball bearings and contamination factor a₂₃ is set per ISO 281 Annex D for mining or wind environments.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine yaw system costs $28,000/hour in lost generation and grid penalty fees. In mining, conveyor downtime averages $42,000/hour across fleet operations. Counterfeit or mis-specified 1206 self-aligning bearings typically achieve only 22–28% of genuine SKF L₁₀ life — confirmed by third-party fatigue testing per ASTM E466. Installation errors due to unsupported mounting (e.g., hammer-driven fits) contribute to 31% of early failures, per SKF Global Failure Analysis Database 2025. Total cost of ownership (TCO) calculations show that selecting a precision P5 self-aligning bearing with brass cage and C3 clearance — backed by SKF’s 2 million-hour rated life — reduces 10-year maintenance spend by 44% compared to standard P0 equivalents.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships in original SKF packaging with tamper-evident seal and unique 12-digit serial code. Documentation includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM A295 Grade 52100), Dimensional Inspection Report (±0.005 mm tolerance verification), and packaging anti-counterfeiting QR code linked to SKF’s global authentication platform. For orders exceeding 500 units, SKFs authorized representative may conduct on-site factory acceptance testing (FAT) per EN ISO/IEC 17020.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, we require your actual operating parameters — not just nominal shaft size. Send us radial and axial load profiles, rotational speed range (including start/stop transients), ambient and housing temperature gradients, available mounting space, and lubrication method. Within 48 hours, our SKF-certified engineers will deliver a no-cost technical assessment including: calculated L₁₀ and Lₙ₅ life per ISO 281, recommended clearance class, cage material justification, mounting fit tolerances, and optional predictive maintenance intervals. Every enterprise inquiry initiates a formal engineering review — because correct selection begins with measurement, not assumption. Every hour of delay in alignment validation compounds operational risk.
