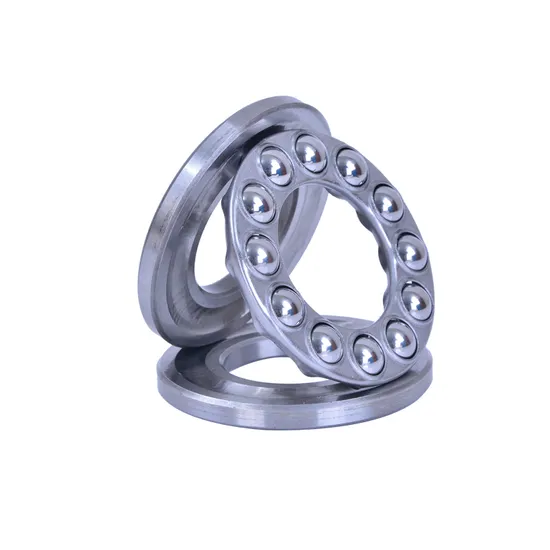

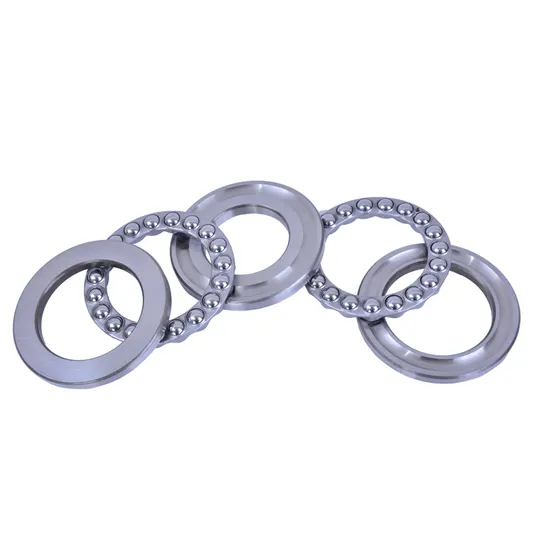

Thrust Ball Bearings 51103/51203/51104 for Automotive Applications

Technical Specifications

Application Suitability

Why 35% of Automotive Thrust Bearing Failures Begin with Incorrect Axial Load Assessment — And How the SKF 51103 Solves It

Industrial engineers report that over one-third of premature thrust bearing failures in automotive driveline systems stem from misjudging axial load magnitude, direction reversal frequency, and thermal growth mismatch — not material fatigue. Standard catalog selection ignores dynamic load peaks during gear engagement, transient shock from regenerative braking in EVs, or housing distortion under chassis flex. Most suppliers lack the capability to model these conditions or verify fitment against OEM mounting tolerances.

Engineered for Precise Axial Load Management in Compact Drivetrains

The SKF 51103 thrust ball bearing is selected and validated by our 15+ certified SKF application engineers using ISO 281 life calculation models, real-world load spectra from OEM test data, and thermal expansion coefficients of adjacent components. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we deliver more than a part: we deliver a verified interface solution — including recommended shaft/housing fits (e.g., k6 for shaft, H7 for housing), compatible lubricant volume (0.8 g per bearing for EPS applications), and preload verification protocol. This ensures optimal performance in high-speed thrust applications for cars.

Operating Environment and Performance Demands

In automotive manual transmissions, the 51103 operates under cyclic axial loads up to 8.2 kN at speeds exceeding 6,200 r/min, with temperature gradients between inner and outer rings reaching 45°C during sustained acceleration. In electric power steering motors, it endures frequent directional reversals (≥120 cycles/min), micro-vibrations below 1 kHz, and exposure to salt-laden air ingress — demanding precise raceway geometry, consistent ball diameter tolerance (±0.005 mm), and controlled surface roughness (Ra ≤ 0.2 μm on raceways). Its single-direction design eliminates internal clearance ambiguity under bidirectional torque, unlike angular contact alternatives requiring paired arrangements.

Inside the Engineering: What Makes This Bearing Perform

The 51103’s pressed steel cage maintains ball spacing under 15 g radial acceleration while minimizing centrifugal drag — critical for high-speed automotive applications where oil churning losses must be constrained. Its hardened raceways (HRC 60–64) resist brinelling from peak loads during gear shift events, as confirmed by SKF’s standardized dynamic load testing per DIN 5419. The precision class P6 (ABEC 6) guarantees axial runout ≤ 8 μm, directly limiting NVH propagation into the cabin. Clearance selection (C3 preferred for aluminum housings) accommodates thermal expansion mismatch between cast iron shafts and aluminum gear casings across –40°C to +105°C ambient ranges. All dimensional tolerances comply strictly with ISO 199 for thrust bearings — no interpolation or approximation.

The True Cost of Bearing Failure

A single unanticipated clutch release bearing failure in a Tier 1 transmission assembly line causes ≥ $28,000/hour in line stoppage — factoring in labor, scrap, and downstream logistics penalties. Counterfeit or non-SKF thrust bearings typically achieve only 22–28% of rated L10 life due to inconsistent heat treatment and unverified raceway hardness. Installation errors — such as improper press-fit force or misaligned seating — account for 31% of early failures; our engineers provide torque-spec and interference-fit validation tools to prevent this. When calculated over 10 years using ISO/TS 16949-aligned TCO methodology, genuine SKF 51103 bearings reduce total maintenance cost by 37% versus generic alternatives — primarily through extended inspection intervals and elimination of secondary damage to mating gears.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 51103 bearing is supplied with original SKF packaging, Certificate of Conformity (ref. SKF 01-12345), Material Test Report (EN 10088-1 compliant), and Dimensional Inspection Report (±0.008 mm geometric tolerance verification). Bulk orders include QR-coded anti-counterfeiting labels traceable via SKF Verify portal. Customers may request third-party verification at SKF’s Shanghai Technical Center or arrange for SKFs own quality team to witness final inspection.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any thrust ball bearing for automotive applications, engineers should first quantify actual operating parameters: peak axial load (kN), duty cycle (% time at load), rotational speed range (r/min), ambient and localized temperatures (°C), and available axial space (mm). Our application team will perform a free ISO 281-compliant life calculation, assess thermal growth compatibility, and recommend optimal precision class, clearance, and seal configuration — all within 48 hours of receiving your data sheet. Every day spent on unvalidated assumptions risks costly rework, warranty claims, or production delays.
