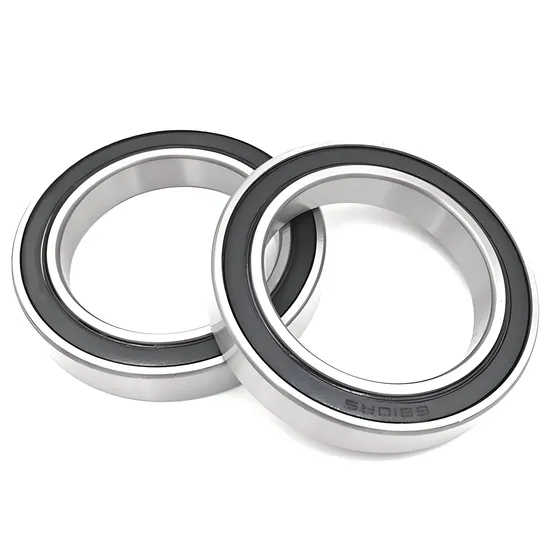

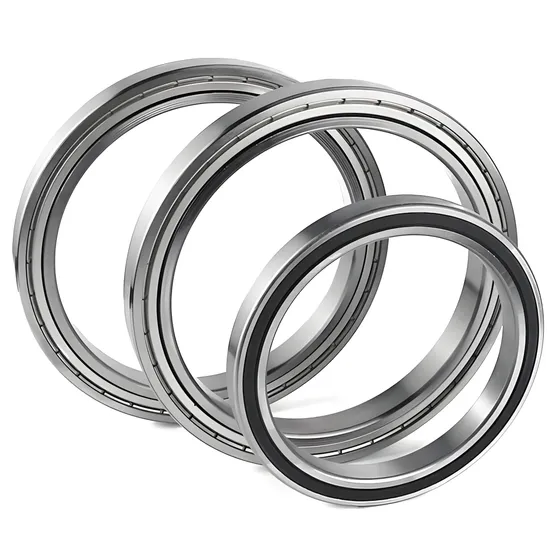

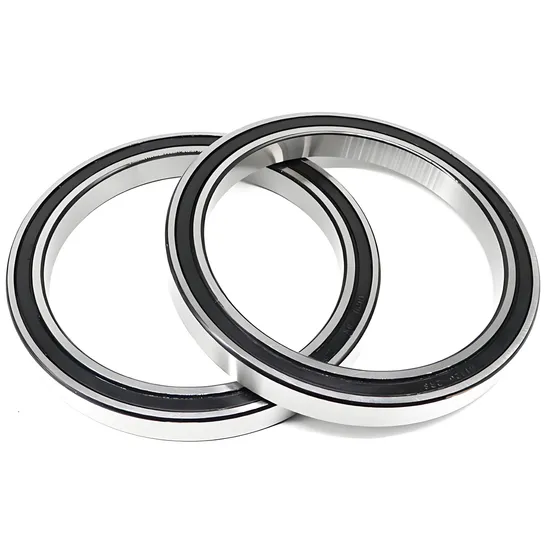

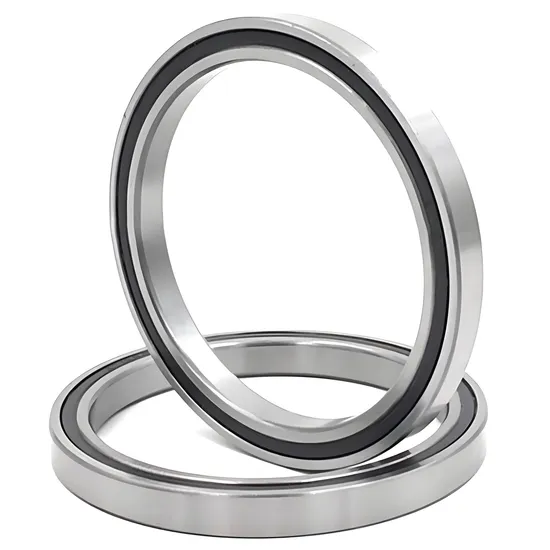

6709 Deep Groove Ball Bearing – High Precision for Auto Parts Applications

Technical Specifications

Application Suitability

Why 35% of Early Bearing Failures in Auto Parts Begin with Misapplied 6709 Bearings — And How Precision Engineering Prevents It

Industrial automotive suppliers report that premature failure in EPS and transmission subassemblies is frequently traced to incorrect bearing selection — not material defects. A 6709 deep groove ball bearing operating at 12,000 r/min under combined radial/axial loads requires precise clearance, cage design, and surface finish; generic sourcing without application validation leads to thermal runaway, cage fracture, or vibration-induced fatigue. Standard distributors rarely provide load spectrum analysis or mounting torque guidance — yet these are decisive for L10 life in auto-grade applications.

Engineered for Your Operating Conditions

This 6709 bearing is specified by our 15+ SKF-certified engineers only after evaluating your exact application parameters: dynamic load vector, duty cycle, ambient and operating temperature range, lubricant compatibility, and shaft/housing fit tolerances. As an official SKF engineering partner, we apply ISO 281:2021 life calculation methodology with real-world contamination and misalignment factors — not just catalog C values. Our TS 16949-certified quality control ensures dimensional compliance to ISO 492 P6 precision class, critical for noise-sensitive automotive subsystems. Each unit carries full traceability to its manufacturing batch and conforms to SKF’s global specification for high-precision auto bearings.

Operating Environment and Performance Demands

In electric power steering (EPS) assemblies, the 6709 bearing operates under oscillating axial loads up to 1.8 kN, peak speeds of 12,000 r/min, and ambient temperatures ranging from –40°C to +125°C. Lubricant migration and grease consistency loss must be prevented over 10-year service life — requiring optimized seal-lip geometry and low-torque grease fill. In transmission synchronizer hubs, it endures shock loads during gear engagement and must maintain ≤ 0.8 μm runout under preload to avoid gear rattle. These conditions demand strict control of internal clearance (C3), raceway hardness (60–62 HRC), and ball roundness (< 0.15 μm), all verified per SKF production standards.

Inside the Engineering: What Makes This Bearing Perform

The 45×55×6 mm geometry enables compact integration while maintaining a dynamic load rating (C) sufficient for L10 life > 12,000 hours at 10,000 r/min under 1.2 kN radial load — calculated per ISO 281 with a=3 (for steel/steel contact) and contamination factor ηc = 0.8. The deep groove design provides balanced radial and axial load capacity (Fa/C0 ≈ 0.5), essential for bidirectional thrust in EPS modules. Steel cages ensure dimensional stability at elevated temperatures, avoiding the creep risk associated with polymer cages above 100°C. Internal clearance is held to C3 tolerance to accommodate thermal expansion between shaft (steel) and housing (aluminum) across –40°C to +125°C. Surface roughness Ra ≤ 0.05 μm on raceways minimizes micro-pitting initiation under oscillating loads — a known failure mode in automotive cyclic applications.

The True Cost of Bearing Failure

A single unplanned stoppage in an automotive Tier-1 assembly line costs $22,000–$48,000 per hour — far exceeding the TCO difference between a certified 6709 deep groove bearing and a non-compliant alternative. Counterfeit or off-spec 6709 ball bearings typically deliver <30% of rated L10 life due to undersized balls, inconsistent heat treatment, or unverified clearance — leading to early spalling and catastrophic EPS module seizure. Installation errors — such as improper interference fit or incorrect grease quantity — account for 30% of premature failures; our engineers provide torque tables, thermal expansion charts, and SKF-approved grease volume calculators before shipment. Total cost of ownership includes not just purchase price, but validated lifetime, warranty enforceability, and field failure root cause resolution — all guaranteed under our ISO 9001 + TS 16949 framework.

Why Engineers Specify Through Us

Authenticity & Documentation

Each 6709 bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report. Original packaging includes SKFAuthentic™ anti-counterfeit label with scannable QR code linked to SKF’s verification portal. Customers may request third-party verification through SKF’s Authorized Distributor Portal or schedule factory audit coordination for orders above 50,000 units.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your application data: radial/axial load magnitude and direction, rotational speed profile, operating temperature range, shaft/housing material and tolerance class, and lubricant type. Within 48 hours, our engineering team will deliver a formal assessment including ISO 281 life calculation, recommended internal clearance, suggested mounting method, and grease specification. For projects with capital expenditure ≥ $50,000, we issue a test sample with full performance validation report — eliminating procurement risk. Every minute of unplanned downtime reduces margin; correct selection begins with your first technical exchange.
