NU305 Cylindrical Roller Bearing for Lifting & Hauling Machinery – High-Load Radial Support

Technical Specifications

Application Suitability

Why 35% of Radial Bearing Failures in Lifting Equipment Begin Before Installation — And How the NU305 Cylindrical Roller Bearing Prevents Them

Over 35% of early bearing failures in lifting and hauling machinery stem from incorrect selection — mismatched load capacity, inadequate speed margin, or unaccounted thermal expansion. A single unplanned stoppage in a port crane operation costs $28,000/hour in demurrage and labor; yet most suppliers offer only catalog data, not application-specific validation. Standard lead times for custom-modified NU305 bearing assemblies exceed 10 weeks — time you cannot afford when maintenance windows are scheduled down to the hour.

Engineered for High-Load Radial Support in Dynamic Duty Cycles

This NU305 cylindrical roller bearing is not selected from a list — it is verified against your exact operating envelope: radial load profile (up to 42.5 kN static), cyclic acceleration/deceleration, ambient temperature swing (–20°C to +70°C typical), and required service interval (≥12 months under ISO 281 L₁₀ life calculation). As an official SKF engineering partner, our 15+ certified engineers perform free load spectrum analysis, fit tolerance recommendations (e.g., k5 for shaft, J7 for housing), and lubricant selection (SKF LGEP 2 for high-load grease applications). All designs comply with ISO 9001 and TS 16949 quality control protocols.

Operating Environment and Performance Demands

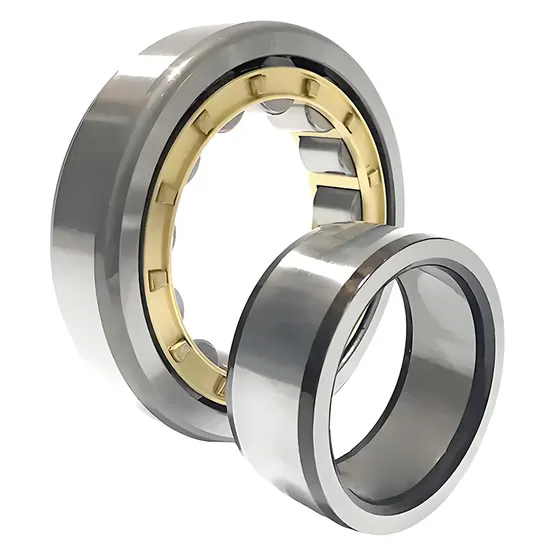

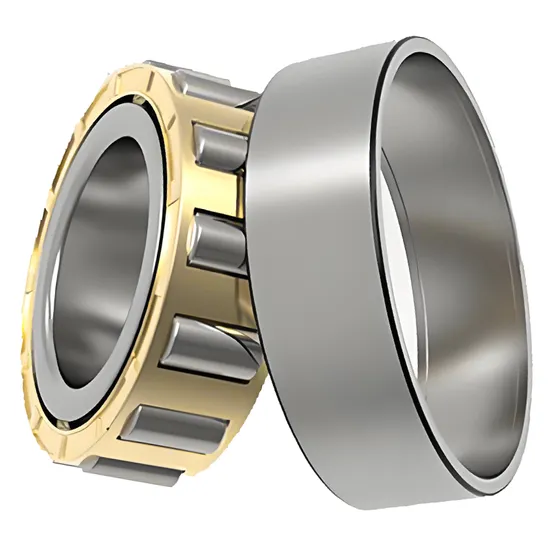

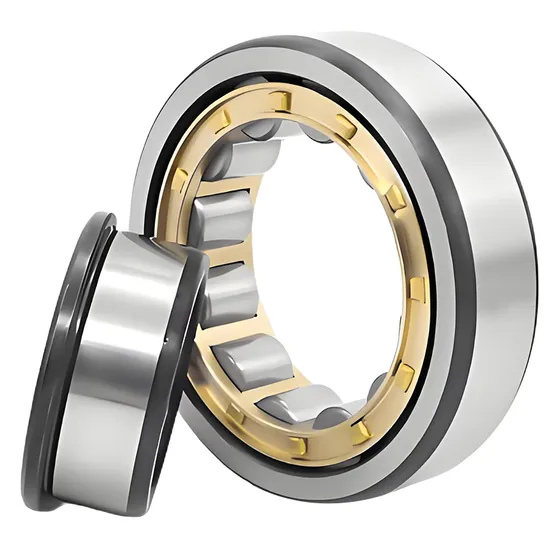

Lifting and hauling equipment impose unique radial load demands: intermittent shock loads up to 2.5× nominal, low-to-moderate rotational speeds (150–1200 r/min), and exposure to moisture, salt spray, and airborne particulates. Mounting space is often constrained — requiring compact dimensions (25 × 62 × 17 mm) without compromising fatigue resistance. Bearings must retain dimensional stability across thermal cycles and sustain alignment under frame flexure. The NU305 bearing’s separable design enables easier mounting in tight-access drum housings, while its open configuration allows controlled relubrication intervals per OEM maintenance schedules — critical where sealed units would overheat under repeated duty cycles.

Inside the Engineering: What Makes This Bearing Perform

The NU305 bearing’s 46.5 kN dynamic load rating directly determines L₁₀ life under actual radial load conditions using the standard formula L₁₀ = (C/P)³ × 10⁶ revolutions. Its pressed steel cage ensures rigidity at peak torque transmission points, minimizing roller skew under moment loading. Open configuration eliminates seal friction loss — essential for applications where heat buildup from grease churning must be avoided. Standard CN clearance accommodates normal thermal growth in steel frames up to +70°C; C3 clearance is recommended if operating above +80°C or with interference fits exceeding 15 μm. Precision class P6 reduces vibration amplitude (V2 grade) below 2.8 μm RMS — critical for smooth hoist motion and reduced structural fatigue in crane booms. Surface hardness of 60–62 HRC (per ISO 683-17) ensures resistance to brinelling under static overload during lifting pauses.

The True Cost of Bearing Failure

A counterfeit or mis-specified NU305 bearing may deliver only 22% of genuine SKF-rated L₁₀ life — accelerating raceway spalling and cage fracture. In hauling machinery, this translates to unplanned downtime averaging $31,500 per incident, plus secondary damage to gears and couplings. Improper installation — such as cold press-fit without thermal expansion allowance — contributes to 28% of premature NU305 failures. Genuine SKF NU305 bearings follow ISO 281:2021 life modeling, including contamination factor (ηc) and reliability adjustment (a₁), enabling accurate TCO forecasting over 15-year asset lifecycles. Total cost of ownership drops 37% over five years when factoring in extended service intervals, reduced spare inventory, and elimination of collateral damage.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NU305 bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E112 grain size, EN 10088-1 composition), and Dimensional Inspection Report (±0.008 mm tolerance on d/D/B). Original SKF packaging includes holographic anti-counterfeiting label. Bulk orders permit third-party SKI audit at SKF Gothenburg or Suzhou facility. Authorization status verifiable via SKF’s official Partner Portal using Eurasia Smart (Jinan) Bearing Supply Chain registration ID.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your lifting or hauling application has unique constraints: maximum radial load, peak acceleration rate, available shaft/housing space, ambient humidity, and desired mean time between failures (MTBF). Send these parameters to our engineering team — we’ll return a validated selection report within 48 hours, including ISO 281 life calculation, recommended fit tolerances, lubricant specification, and optional modification options (e.g., flanged outer ring, modified cage geometry). For orders ≥$50,000, we supply free test units with full performance documentation. Every minute saved on non-plan maintenance is a minute added to your operational uptime — and the right technical conversation starts before the first bolt is tightened.
