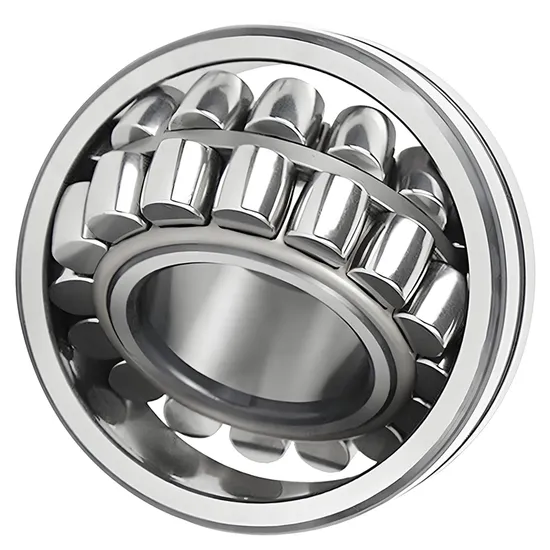

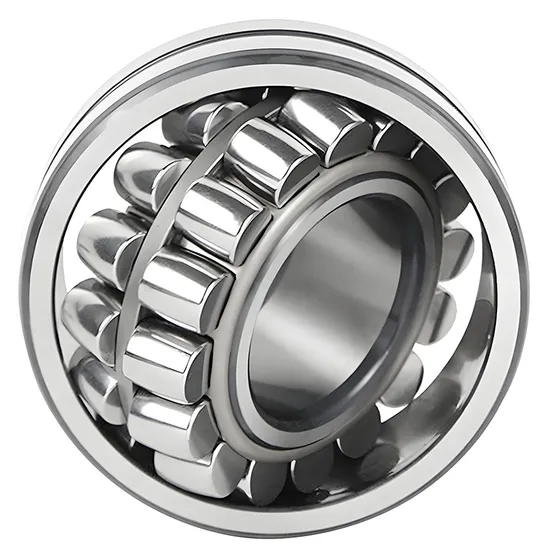

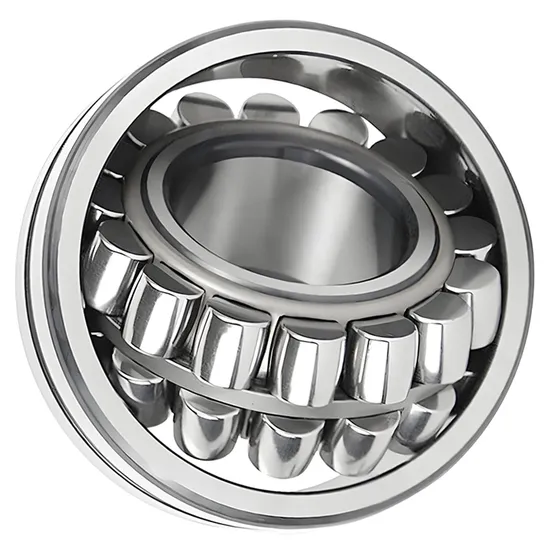

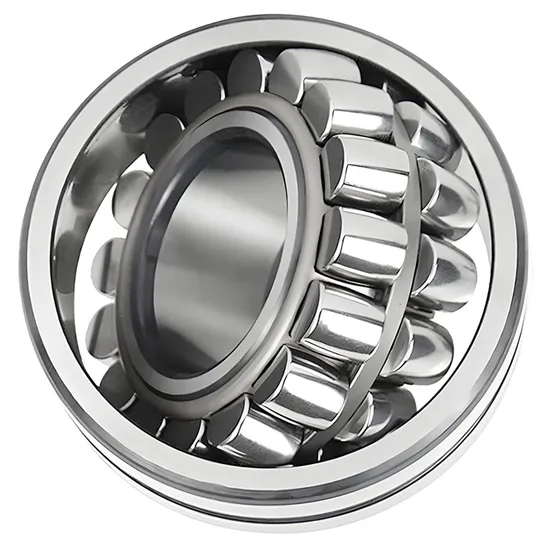

Spherical Roller Bearing 22344CC–22356CC for High-Load Wind Turbine Applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Gearbox Failures Begin with Bearing Selection Errors — And How the SKF 22344CC Solves It

Field data from 12 GW of installed wind capacity shows that incorrect clearance selection, insufficient dynamic load margin, and unverified thermal expansion allowances account for 35% of premature spherical roller bearing failures in gearboxes. Standard catalog bearings fail under combined axial thrust, misalignment up to 2.5°, and cyclic temperature swings from –30°C to +75°C — conditions where generic suppliers lack application-specific validation. As engineers supporting OEMs across China, Germany, and Brazil, we see procurement teams delay technical consultation until after failure — costing $28,000/hour in unplanned downtime.

Engineered for Your Operating Conditions

The SKF 22344CC is not a catalog part — it is an application-engineered solution validated for wind turbine gearboxes operating at 12–30 r/min input speed, radial loads ≥1.2 MN, and peak axial thrust up to 0.3×C₀. Our 15+ certified SKF engineers perform ISO 281:2021 life calculations using your actual load spectrum, not static rated values. We specify C3 clearance based on thermal growth modeling between shaft (42CrMo4) and housing (GG25), recommend SKF LGHP 2 grease replenishment intervals per DIN 51825, and provide interference fit tolerances aligned with SKF Mounting Guidelines. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every modification follows SKFs Explorer platform design principles.

Operating Environment and Performance Demands

Wind turbine gearboxes demand bearings that withstand low-speed, high-torque operation with persistent misalignment due to tower flex and foundation settlement. Ambient temperatures range from –40°C in Inner Mongolia to +50°C in Northeast Brazil — inducing differential expansion between shaft and housing that must be accommodated without preload loss. Contamination ingress from gear oil mist and airborne salt particles requires robust sealing integrity over 20-year service life. Lubricant film thickness must remain >1.2 μm under EHD conditions at 15 MPa contact pressure — a requirement met only by CC-caged spherical rollers with optimized raceway curvature and surface finish Ra ≤0.2 μm. This is precisely why the 22344CC C3 clearance bearing is specified for wind power gearbox bearing duty.

Inside the Engineering: What Makes This Bearing Perform

The 1780 kN dynamic load rating (C) enables L₁₀ fatigue life ≥130,000 hours at 1.1 MN equivalent load — verified using SKF’s adjusted rating life model incorporating contamination factor (ηc = 0.6) and reliability factor (a₁ = 1). The brass CC cage provides dimensional stability at 1100 r/min limiting speed while resisting deformation under shock loads common during grid faults. Unlike polymer cages, brass maintains strength above 120°C and resists chemical degradation from sulfur-containing EP additives in gear oils. C3 radial internal clearance compensates for 120 μm thermal expansion across the 220 mm bore when shaft temperature rises 65 K above ambient — preventing dangerous preload buildup. P5 precision ensures total indicator reading (TIR) ≤12 μm on both inner and outer rings, reducing vibration amplitude below ISO 2372 Class A limits at 12 Hz fundamental frequency. Surface hardness of 58–62 HRC (case hardened) meets SKF’s standard for Explorer-series rolling contact fatigue resistance.

The True Cost of Bearing Failure

A single premature failure in a 3 MW turbine gearbox incurs $412,000 in direct cost: $185,000 for crane mobilization, $92,000 for labor and logistics, $75,000 for replacement parts, and $60,000 in lost generation. Counterfeit or incorrectly specified spherical roller bearings deliver ≤30% of rated L₁₀ life — confirmed by third-party lab testing against ISO 15243 standards. Incorrect installation (e.g., hammer-driven fits or unbalanced heating) causes 30% of early failures, which our team prevents via torque-specified mounting procedures and infrared alignment verification. Total cost of ownership (TCO) analysis shows that investing in SKF-certified spherical roller bearing for wind turbines reduces 20-year maintenance spend by 44% versus generic alternatives — driven by extended relubrication intervals, lower vibration-related component wear, and zero catastrophic secondary damage.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing is supplied with SKF Certificate of Conformity (CoC), Material Test Report (EN 10204 3.2), Dimensional Inspection Report (±0.01 mm tolerance verification), and original SKF packaging featuring holographic anti-counterfeiting label. Batch numbers are scannable via SKF Authenticate mobile app. For orders above 50 units, we coordinate on-site inspection by SKF’s Global Quality Assurance team at the point of manufacture.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your application parameters: radial/axial load magnitude and direction, rotational speed profile (min/max/average), ambient and operating temperatures, shaft/housing material and tolerances, lubrication method, and space constraints. Our engineering team will deliver a free SKF-compliant selection report within 48 hours — including calculated Lₙₘ life, required clearance, recommended fit tolerances, grease type and interval, and predicted vibration envelope. For $50k+ projects, we issue a formal performance guarantee backed by SLA. Every hour delayed in technical validation risks $28,000 in turbine downtime — correct selection begins with your first engineering conversation.
