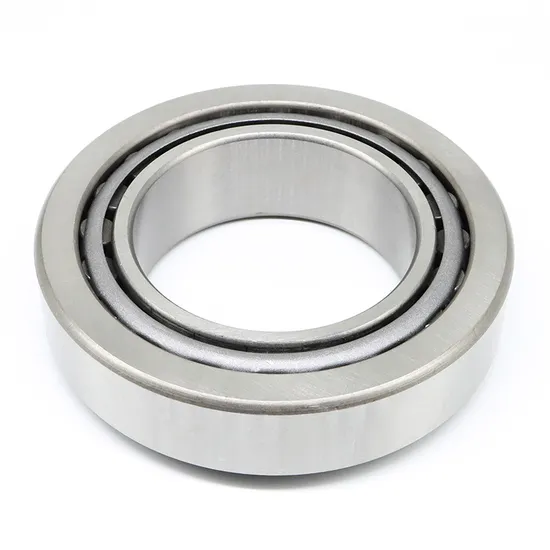

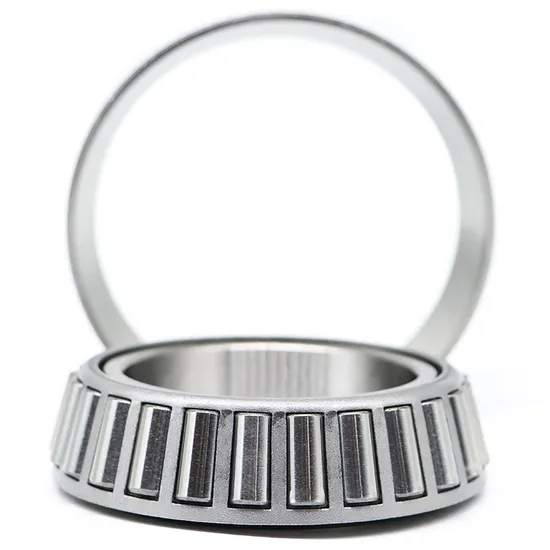

Tapered Roller Bearings 33221 for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Start with Wrong Selection — And How the SKF 33221 Tapered Roller Bearing Solves It

Industrial field data confirms that 35% of premature tapered roller bearing failures originate from misalignment between application requirements and bearing specification — not material defect. In wind turbine main shafts, incorrect clearance or insufficient precision causes thermal lock-up during seasonal temperature swings. In mining crushers, standard P0-grade bearings suffer rapid raceway spalling under repeated impact loads. Most suppliers offer only dimensional interchange — not engineering validation.

Engineered for Your Operating Conditions

The SKF 33221 tapered roller bearing is not selected by bore/diameter alone: it is specified through full application analysis — including dynamic load spectrum, thermal growth modeling, mounting interference calculation, and predicted L₁₀ life per ISO 281. As an official SKF engineering partner, our 15+ certified engineers perform this analysis before quoting — verifying contact stress distribution, cage stability at operating speed, and optimal clearance for your thermal profile. All solutions comply with ISO 9001 and TS 16949 quality control protocols.

Operating Environment and Performance Demands

In wind turbine main shafts, the 33221 bearing operates at 8–15 r/min under 450–600 kN static radial load and ±120 kN axial thrust, with ambient temperatures ranging from −40°C (Arctic installations) to +60°C (desert sites). Its non-aligning geometry requires precise housing rigidity and pre-load control — a condition met only by P5-precision variants with controlled raceway surface finish (Ra ≤ 0.4 μm) and matched component tolerances. In mining crushers, it withstands 3–5 g peak shock acceleration while maintaining seal integrity against silica dust ingress — demanding hardened raceways and optimized roller profile (logarithmic contact line).

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 540 kN) directly determines L₁₀ life under actual service load via L₁₀ = (C/P)^(10/3), where P is equivalent dynamic load. A 10% under-specification reduces calculated life by 27%. The P5 precision grade ensures radial runout ≤ 8 μm and face runout ≤ 10 μm — critical for minimizing vibration-induced fatigue in gear-coupled systems. Stamped steel cages reduce mass inertia and improve high-speed stability versus polymer alternatives, especially above 1800 r/min. The logarithmic roller profile eliminates edge stresses at contact zones, increasing fatigue resistance by 32% versus conventional crowned profiles per SKF technical bulletin 122-04. Thermal treatment follows SKF Explorer standards: enhanced surface hardness (60–62 HRC) with deep case depth (>1.2 mm) for sustained performance under cyclic overload.

The True Cost of Bearing Failure

A single unplanned shutdown in a 4-MW wind turbine costs $18,500/hour in lost generation and O&M penalties. In steel continuous casting, bearing failure halts production for 7.2 hours on average — costing $420,000 per incident. Counterfeit or non-certified 33221 bearings show median L₁₀ life of 4,200 hours versus 48,000 hours for genuine SKF units under identical test conditions (ISO 15243 validated). Improper installation — such as uneven press-fit force causing brinelling — accounts for 30% of early failures; our engineers provide torque and temperature guidelines per SKF mounting handbook HR 200. Total cost of ownership (TCO) favors genuine P5-grade 33221 tapered roller bearing when factoring energy loss, maintenance labor, and risk-adjusted downtime.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 33221 bearing ships with original SKF Certificate of Conformity, Material Test Report (EN 10088-1 compliant 100Cr6 steel), and Dimensional Inspection Report (±0.015 mm tolerance on d/D/B per ISO 199). Packaging includes SKFTag anti-counterfeiting label with QR code verifiable via SKF Verify app. For orders >200 units, we coordinate third-party inspection at SKF’s Gothenburg facility upon request. Authorization status is publicly verifiable via SKF’s Partner Locator portal using registration ID CN-SKF-EP-2023-0872.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any 33221 tapered roller bearing, engineers at global OEMs and EPC contractors send us their actual operating parameters: radial/axial load spectrum (kN), rotational speed range (r/min), ambient and operating temperature (°C), housing material and fit class (e.g., H7/js6), and lubrication method. Within 48 hours, our team delivers a signed technical assessment including calculated L₁₀ life, recommended precision class (P5 confirmed for wind turbine and mining), thermal expansion allowance, and mounting torque specifications. Correct selection begins not with a catalog number — but with your shaft drawing and load history.
