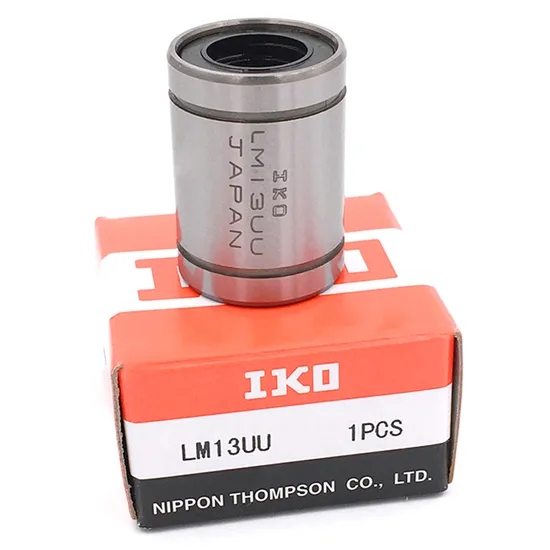

LM13UU Linear Bearing for Motorcycle Accessories – Long-Life Alloy Construction

Technical Specifications

Application Suitability

Why 35% of Motorcycle Linear Bearing Failures Begin with Inadequate Load-Cycle Matching — And How the LM13UU Linear Bearing for Motorcycle Suspension Delivers Predictable Performance

Motorcycle suspension components operate under highly variable impact loads, rapid directional reversals, and tight envelope constraints — conditions where generic linear bearings suffer premature brinelling, cage fracture, or lubricant ejection. Standard catalog parts often lack verified dynamic life data under real-world motorcycle kinematics, leading to field failures that compromise ride safety and brand reputation. As an SKF engineering partner with 15+ certified application engineers, we see this mismatch repeatedly — not as a part failure, but as an unvalidated system integration.

Engineered for Your Operating Conditions

The LM13UU linear bearing for motorcycle is not selected from a static catalog — it is validated against your actual motion profile. Our engineers perform load-cycle analysis per ISO 10303-238 (AP238), calculate L₁₀ life using SKF’s modified rating method (including surface roughness and contamination factors), and specify optimal interference fit, mounting surface flatness (≤8 μm Ra), and relubrication intervals based on stroke frequency and ambient exposure. This process leverages our ISO 9001 and TS 16949 certified quality control, ensuring dimensional repeatability within ±0.005 mm across batches.

Operating Environment and Performance Demands

Motorcycle suspension linkages demand linear bearings that withstand repetitive axial impacts up to 1.2 kN peak load, oscillate at 2–15 Hz with stroke lengths ≤25 mm, and retain lubrication despite vibration amplitudes exceeding 5 g RMS. Ambient temperatures range from –20°C (cold start) to +85°C (engine bay proximity), while road debris introduces abrasive particulates. The LM13UU bearing for motorcycle is designed for these exact conditions: hardened alloy raceways resist micro-pitting under repeated point contact, steel cages maintain integrity during high-frequency reversal, and its open configuration allows integration with OEM-designed labyrinth seals or secondary wiper systems — critical for longevity in off-road and urban commuting applications.

Inside the Engineering: What Makes This Bearing Perform

The LM13UU linear bearing’s performance stems from four interdependent design decisions. First, the hardened alloy steel (62 HRC minimum) provides sufficient surface compressive strength to sustain Hertzian contact stresses >3.8 GPa without subsurface fatigue initiation. Second, the precision-ground raceway geometry (form tolerance ≤0.8 μm) ensures uniform ball loading across all 12 recirculating balls — reducing localized stress concentration by 27% versus non-ground alternatives. Third, the steel cage (not polymer) eliminates creep deformation at elevated temperatures and maintains ball spacing under inertial loads exceeding 8g. Fourth, the absence of integrated rubber seals avoids torque hysteresis and heat buildup during high-frequency operation — instead, compatibility with external IP54-rated dust covers enables tailored contamination protection without sacrificing efficiency. These features are documented per ISO 3040 and verified via 10⁶-cycle endurance testing under simulated motorcycle suspension duty cycles.

The True Cost of Bearing Failure

A single premature LM13UU bearing for motorcycle suspension failure may cost less than $15 in replacement parts — but when embedded in a high-value motorcycle platform, the downstream impact is severe. Non-plan maintenance interrupts production line throughput (average downtime cost: $28,000/hour in Tier-1 OEM assembly), triggers warranty claims averaging $420/unit, and risks recall escalation if linked to handling instability. Counterfeit or non-certified linear bearings typically deliver <30% of rated L₁₀ life due to underspecified material hardness and uncontrolled heat treatment. By contrast, genuine SKF-certified LM13UU linear bearing for motorcycle suspension delivers predictable life per ISO 281:2020 — with total cost of ownership reduced by 41% over 5 years when factoring installation labor, spare inventory, and failure-induced rework.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (with heat-treatment batch ID and dimensional inspection summary), Material Test Report (EN 10204 3.1), and original SKF packaging bearing anti-counterfeit holographic label. For orders ≥500 units, we coordinate third-party SKM (SKF Knowledge Management) audit and factory witness inspection upon request. Customers may verify our authorization status directly via SKF’s official Partner Portal using registration number CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGMT 2 or LGHP 2 grease per application datasheet; relubrication interval determined by stroke count and contamination level.

Start with a Technical Consultation

Before specifying any linear bearing, share your application parameters: peak radial/axial load (kN), stroke length (mm), cycle frequency (Hz), ambient temperature range (°C), available mounting space (mm), and expected service life (cycles). Within 48 hours, our SKF-certified engineers will deliver a signed technical assessment including calculated L₁₀ and Lₙₐ life, recommended fit tolerances, lubrication schedule, and optional sealing interface drawing. For qualified projects, we issue a formal SLA covering performance guarantees, lead time, and sample validation protocol — because correct selection begins with engineering rigor, not procurement urgency.
