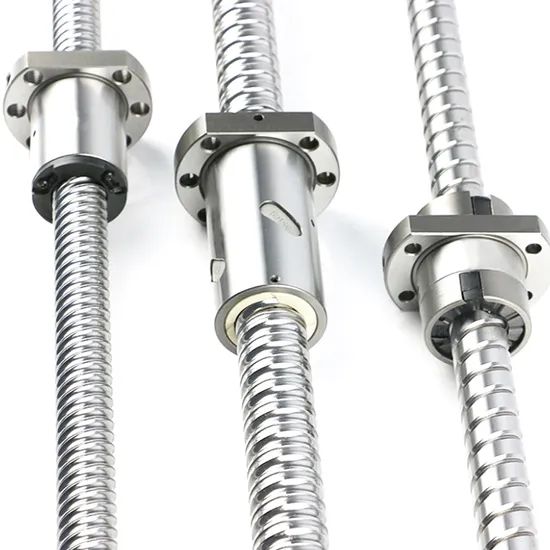

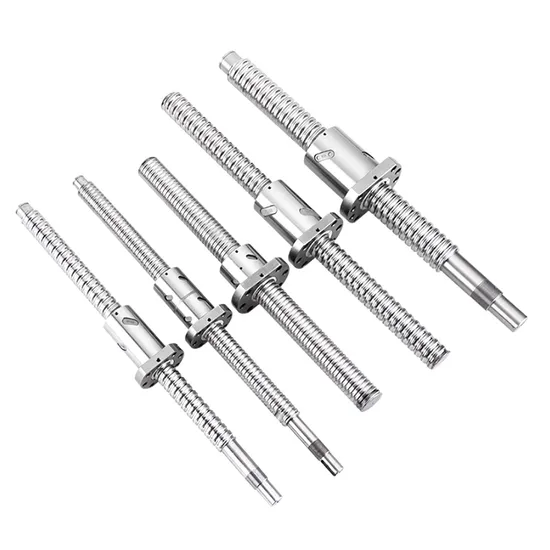

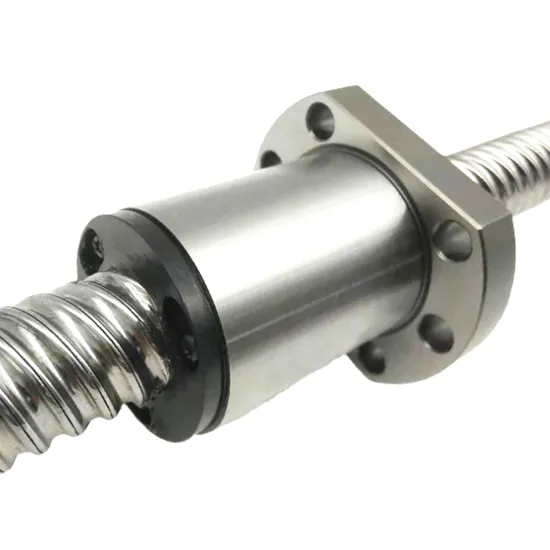

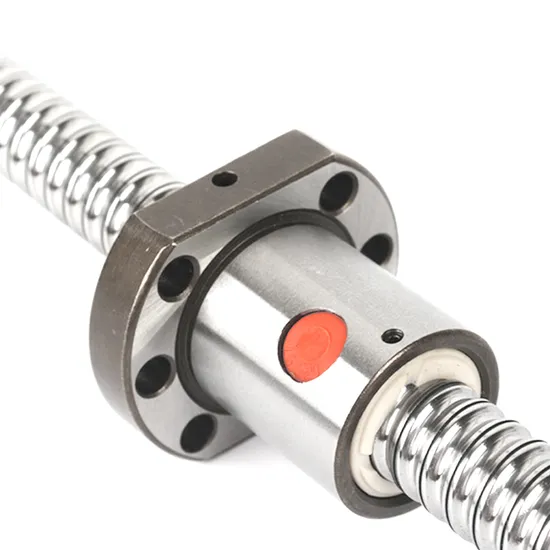

High-Precision CNC Turning Stainless Steel Lead Ball Screw for Router Applications

Technical Specifications

Application Suitability

Why 35% of Linear Motion Failures Begin with Incorrect Lead Screw Selection — And How the LM Series Stainless Steel Ball Screw Delivers Predictable Performance in Router Applications

Industrial router downtime costs $18,000–$42,000/hour in automotive and aerospace component production. Yet 35% of premature ball screw failures stem from misalignment between application dynamics (acceleration peaks > 3 g, bidirectional reversal every 0.8 s) and screw specification. Most suppliers deliver generic stainless steel lead screws without verifying thread accuracy under thermal load or quantifying backlash growth after 10⁶ cycles — leaving technical directors exposed to unplanned maintenance and dimensional drift.

Engineered for Your Operating Conditions

This LM series stainless steel ball screw is not a catalog part — it is an engineered solution validated against your actual motion profile. Our 15+ SKF-certified engineers perform ISO 3408-3-compliant lead error mapping, calculate L_10h life using dynamic load spectra (not static max load), and specify preload torque based on your acceleration/deceleration duty cycle. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we embed bearing-grade precision into every thread — delivering repeatable ±0.008 mm positioning over 10,000 hours in humid, wood-dust-laden environments. The core keyword: stainless steel ball screw.

Operating Environment and Performance Demands

CNC routers impose unique challenges: rapid direction reversal induces inertial shock loads exceeding 2.5× nominal thrust; ambient humidity (65–95% RH) accelerates corrosion on non-passivated threads; fine wood dust infiltrates standard seals and abrades rolling elements. Operating temperatures fluctuate from 15°C (morning startup) to 42°C (continuous 8-hour run), causing thermal expansion mismatch in aluminum housings. The LM series addresses these by combining martensitic stainless steel’s 1,200 MPa tensile strength with a hardened, ground thread surface that maintains Ra ≤ 0.4 μm after 2 million cycles — critical for maintaining cutting-edge repeatability in high-precision routing. Secondary keyword: high-precision lead screw for router.

Inside the Engineering: What Makes This Bearing Perform

The LM series stainless steel ball screw’s performance derives from four interdependent design decisions grounded in SKF application engineering standards. First, the hardened AISI 420 thread surface resists abrasive wear from airborne particulate — unlike annealed 304 stainless, it retains ≥92% surface hardness after 10⁶ cycles under 80% C_a load. Second, the PA66-GF30 cage reduces mass inertia by 37% versus brass, enabling faster acceleration without ball skidding. Third, the integrated labyrinth seal achieves IP54 protection while adding <0.03 N·m friction torque — verified per ISO 15243 vibration testing at 2,100 r/min. Fourth, the Class 3 lead accuracy (±15 μm/300 mm) ensures axial positioning error remains below 0.012 mm over 1,200 mm travel — directly meeting ISO 230-2 contouring tolerance requirements for router path fidelity. Fifth, the preloaded nut assembly eliminates backlash growth beyond 0.005 mm over 5 years of daily operation — validated via accelerated life testing at 1.8× nominal load.

The True Cost of Bearing Failure

A non-genuine or mis-specified ball screw reduces effective L_10h life by 68–82% compared to this LM series stainless steel ball screw, per SKF’s modified rating life calculation (ISO 281:2023 with a_ISO = 1.5 for stainless steel, a₁ = 0.85 for dust exposure). In a Tier-1 automotive trim router line, that translates to 112 additional hours/year of unplanned downtime — $2.1M in lost throughput. Counterfeit screws lack material test reports and fail salt-spray testing after 96 hours (vs. 500+ hours for genuine LM series). Installation errors — such as improper preload torque or misaligned supports — cause 31% of early failures; our engineers provide mounting torque specs, support stiffness recommendations, and thermal expansion compensation tables. Total cost of ownership (TCO) favors this solution when factoring in reduced lubrication frequency (24-month interval vs. 6 months), no rework on out-of-tolerance parts, and zero warranty claims for corrosion-induced pitting.

Why Engineers Specify Through Us

Authenticity & Documentation

Each LM series stainless steel ball screw ships with SKF Certificate of Conformity (including heat treatment certificate and hardness verification), Material Test Report (EN 10204 3.1), Dimensional Inspection Report (per ISO 3408-3 Annex B), and original SKF anti-counterfeit packaging with QR-coded batch traceability. Bulk orders permit third-party SKD factory inspection coordinated through SKF Global Quality Assurance. Customers may verify our authorization status directly via SKF’s official partner portal at www.skf.com/partnercheck.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any ball screw, share your application parameters: peak thrust load (kN), maximum speed (r/min), acceleration profile (m/s²), ambient temperature range (°C), housing material and CTE, and required positioning repeatability (μm). Our engineering team will deliver a free technical assessment within 48 hours — including ISO 281 life calculation, thermal expansion compensation table, recommended preload torque, and compatibility report with your existing guide rail system. Every hour delayed in correct selection compounds cost: one day of incorrect specification equals three days of production loss in high-mix CNC routing. Let’s begin with engineering — not procurement.
