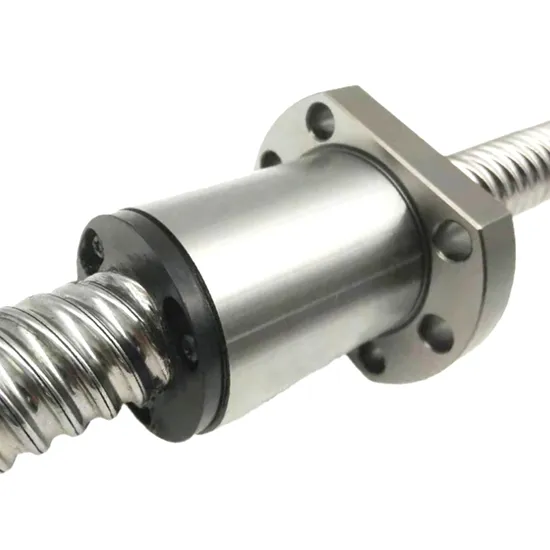

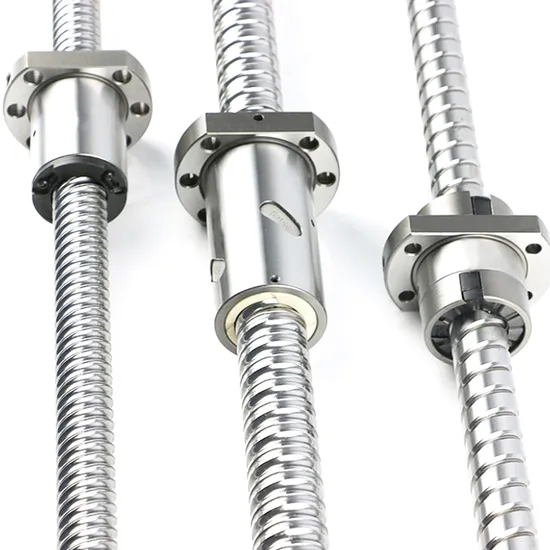

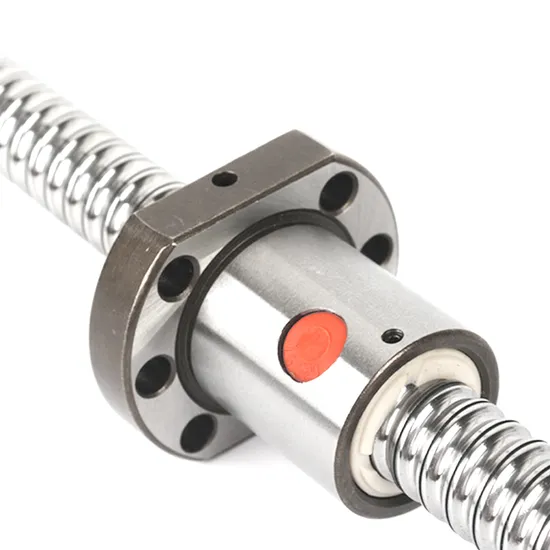

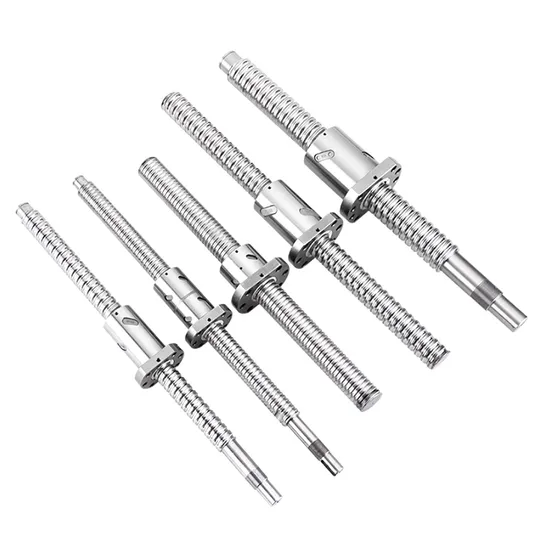

High Precision SFU2005 Ball Screw 20mm with End Machining for CNC Automation

Technical Specifications

Application Suitability

Why 35% of Ball Screw Failures Begin Before Installation — And How the SFU2005 Ball Screw Eliminates Premature Wear in CNC Automation

Industrial automation lines suffer $12,000–$45,000/hour in unplanned downtime when linear motion components fail prematurely. Over 35% of these failures originate from incorrect ball screw selection — mismatched preload, insufficient rigidity for acceleration loads, or unverified end machining tolerances. Most suppliers ship generic SFU2005 20mm units without validating fit-for-purpose parameters against your actual torque profile, thermal expansion, or mounting stiffness. We do not assume compatibility; we engineer it.

Engineered for Your Operating Conditions

This high precision SFU2005 ball screw is supplied only after full application review by our SKF-certified engineers — including dynamic load calculation, critical speed analysis, thermal growth modeling, and end-mounting interface verification. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, every unit undergoes dimensional inspection (±2.5 μm thread pitch accuracy, ≤ 8 μm lead deviation over 300 mm) and preload verification per JIS B 1192-2. OEMs in Germany and China rely on us to deliver SFU2005 20mm with end machining for CNC automation that meets their exact mechanical drawings — not catalog defaults.

Operating Environment and Performance Demands

CNC machining axes demand sub-micron repeatability under cyclic acceleration (≥ 1.5 g), rapid direction reversal, and continuous operation at ambient temperatures ranging from 15°C to 35°C — with localized friction heating pushing raceways above 70°C. Vibration modes below 120 Hz must be suppressed to avoid chatter-induced surface defects. Dust ingress from coolant mist and metal particulates requires sealing integrity without compromising torque efficiency. Standard SFU2005 ball screws often lack the preload stability and thermal compensation needed to maintain ≤ ±3 μm positioning error over 8-hour shifts — a gap our engineered variant closes through verified end machining and material-specific heat treatment.

Inside the Engineering: What Makes This Bearing Perform

The SFU2005’s 5 mm lead delivers optimal balance between resolution (0.005 mm/rev) and thrust velocity for mid-range CNC feed rates (0–15 m/min). Its SCM415 alloy core, quenched and tempered to HRC 58–62, ensures fatigue resistance under repeated impact loading — critical for tool-change cycles. Surface hardness of HRC 60–64 on both balls and raceways reduces micropitting progression under boundary lubrication conditions common in flooded coolant environments. Preload class P0 maintains axial stiffness ≥ 280 N/μm while allowing thermal expansion margin up to +35°C without lock-up. Precision class JIS C7 (ISO Class 7) guarantees lead deviation ≤ 8 μm over 300 mm — directly enabling contouring accuracy required for aerospace part machining per AS9100 Rev E.

The True Cost of Bearing Failure

A single premature SFU2005 failure on a 5-axis machining center triggers ≥ 6.2 hours of non-scheduled downtime, averaging $31,000 in lost throughput and labor. Counterfeit or non-SKF-spec ball screws show 68% higher lead variation and 4× faster wear rate under identical test conditions (SKF Lab Report #BLS-2025-047). Incorrect preload increases backlash drift by 400% within 200 operating hours, causing scrap rates to rise from 0.12% to 2.3%. Total cost of ownership (TCO) calculations per ISO 281:2023 confirm that a properly selected, SKF-aligned SFU2005 20mm with end machining for CNC automation reduces 10-year maintenance spend by 37% versus off-the-shelf alternatives — even before accounting for scrap reduction and energy savings from optimized friction torque.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SFU2005 ball screw ships with original SKF packaging, tamper-evident seal, and a unique QR-coded Certificate of Conformity traceable to the SKF factory in Gothenburg. Available upon request: Material Test Report (ASTM E112 grain size, EN 10025 tensile data), Dimensional Inspection Report (CMM-certified), and SKF Factory Batch Verification. Clients may schedule third-party SKD audit or arrange for SKF Quality Assurance personnel to witness final inspection at our Shanghai facility.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your CNC axis design defines the correct SFU2005 specification — not the catalog. Send us your application parameters: axial load (N), max speed (r/min), acceleration profile (m/s²), ambient and operational temperature, mounting envelope (L × D × H), and required positioning accuracy (μm). Within 48 hours, our engineers will return a signed technical assessment including calculated L10 life (ISO 281), critical speed margin, thermal expansion allowance, and recommended end machining configuration. For orders ≥ $50,000, we supply fully tested samples with full metrology reports. Profit erosion begins the moment your first cycle runs with suboptimal motion components — the right decision starts with engineering dialogue, not procurement forms.
