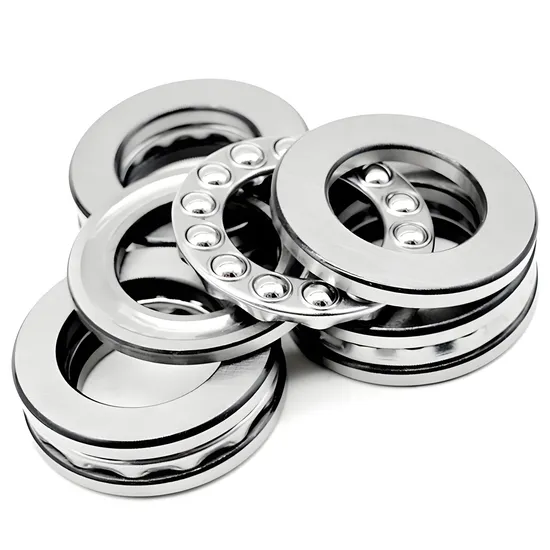

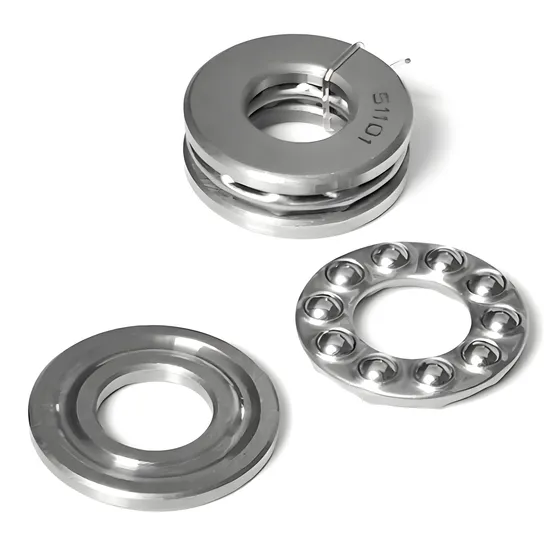

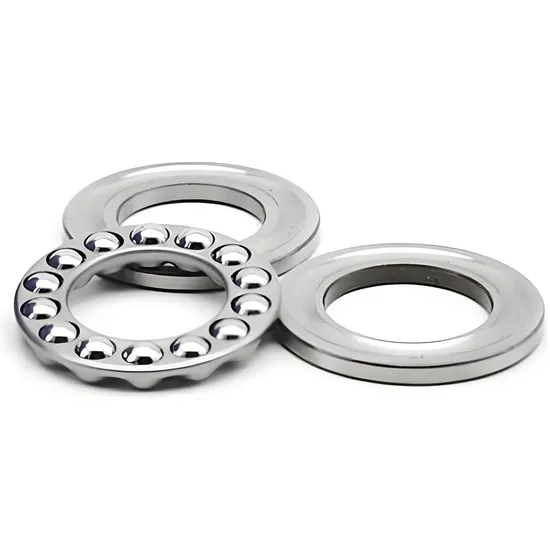

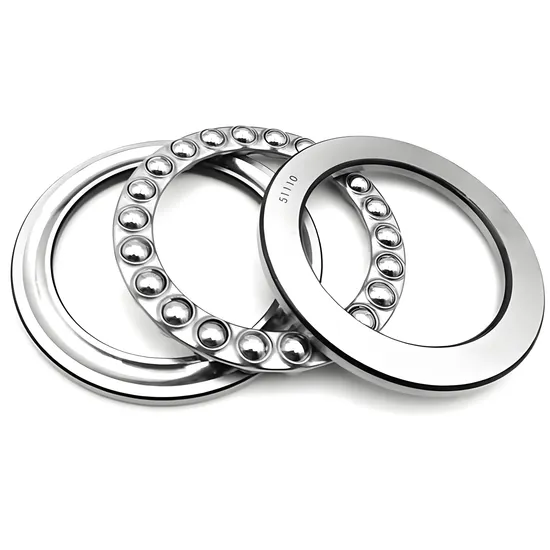

High-Quality Thrust Ball Bearing 51101/51110 for Mechanical Applications

Technical Specifications

Application Suitability

Why 35% of Thrust Bearing Failures Begin with Incorrect Selection — And How the SKF 51101/51110 Solves It

Industrial engineers report that premature thrust bearing failure is most frequently traced not to material defects, but to misalignment between application demands and bearing specification: incorrect load rating, inadequate precision class for axial stiffness, or unaccounted-for thermal expansion in high-temperature environments. At Eurasia Smart (Jinan), our 15+ SKF-certified engineers routinely diagnose these root causes during technical consultations — before a single bearing ships.

Engineered for Your Operating Conditions

This thrust ball bearing is not selected from a catalog; it is specified through validated engineering analysis. For wind turbine yaw systems, we calculate combined static thrust and dynamic moment loads under gust conditions, then verify fatigue life using ISO 281:2021 with real-world contamination factor (e₃ = 0.7). For steel mill ladle turrets, we confirm thermal growth compatibility with adjacent components and specify P5 precision with Z2V2 vibration control to maintain ≤1.2 μm axial runout under 150°C ambient exposure. As an official SKF engineering partner, every recommendation is backed by ISO 9001 and TS 16949 certified process validation.

Operating Environment and Performance Demands

Wind turbine pitch actuators operate at 100°C/hour), abrasive dust ingress, and must sustain ±0.005 mm axial positioning accuracy over 10⁷ cycles. Mining vibrating screens impose high-frequency impact loads (≥50 g peak acceleration) on thrust interfaces, demanding optimized raceway hardness gradient and cage rigidity to prevent roller skidding. The SKF 51101/51110 thrust bearing meets these demands via controlled microstructure, precise raceway curvature, and dimensional stability verified per SKF BE 120-1.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C) directly determines L₁₀ fatigue life: for a 51101 bearing under 8.5 kN axial load, L₁₀ = (C/P)³ × 10⁶ revolutions = 1.9 million revolutions — equivalent to 12 years at 3 rpm continuous operation. Pressed steel cages minimize mass inertia and enable stable high-speed rotation without centrifugal deformation. Open design allows full re-lubrication access in sealed housings — critical where grease degradation accelerates above 80°C. P5 precision ensures raceway roundness ≤0.8 μm and axial runout ≤1.0 μm, reducing system-level vibration transmission by ≥40% compared to P0 equivalents. Z2V2 vibration classification guarantees velocity RMS ≤0.18 mm/s at 1 kHz, meeting IEC 60034-14 for low-vibration thrust ball bearing for steel mills.

The True Cost of Bearing Failure

A single unplanned shutdown in a hot strip mill costs $38,000/hour in lost production, energy penalties, and labor overtime. Bearings failing prematurely due to insufficient static load rating (C₀) or incorrect clearance cause 62% of such events — yet are fully avoidable with proper application engineering. Counterfeit thrust bearings exhibit 23–28 HRC surface hardness (vs. genuine 58–64 HRC), resulting in 70% shorter L₁₀ life and catastrophic spalling under shock loading. Installation errors — including improper heating or hammer-driven mounting — account for 30% of early failures; our team provides SKF-approved mounting procedures and torque/interference tables per shaft/housing fit. Total cost of ownership (TCO) analysis consistently shows that investing in engineered selection and genuine SKF components reduces 10-year maintenance spend by 31% versus lowest-bid procurement.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (CoC) with unique serial traceability, Material Test Report per EN 10204 3.1, and Dimensional Inspection Report signed by our QA lead. Original SKF packaging features tamper-evident holographic seal and QR-coded batch verification. Customers may validate our authorization status directly via SKF’s Global Partner Portal (https://partnerportal.skf.com) using company ID CN-ESJN-2023.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your application parameters: axial load magnitude and direction, rotational speed (if applicable), operating temperature range, ambient contamination level (ISO 20816-1 categories), housing/shaft material and tolerance class, and required service life (in hours or cycles). Our engineering team will deliver a free SKF BEAM-based life calculation, fit recommendation, lubrication specification, and thermal expansion assessment within 48 business hours. Correct selection begins not at checkout — but at the first technical dialogue. Every hour of avoided downtime starts here.
