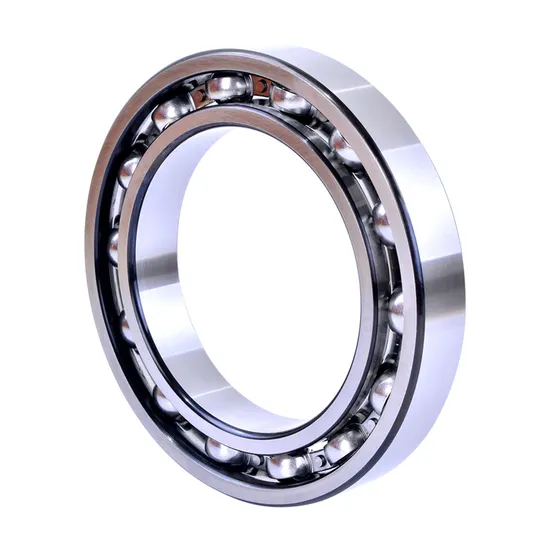

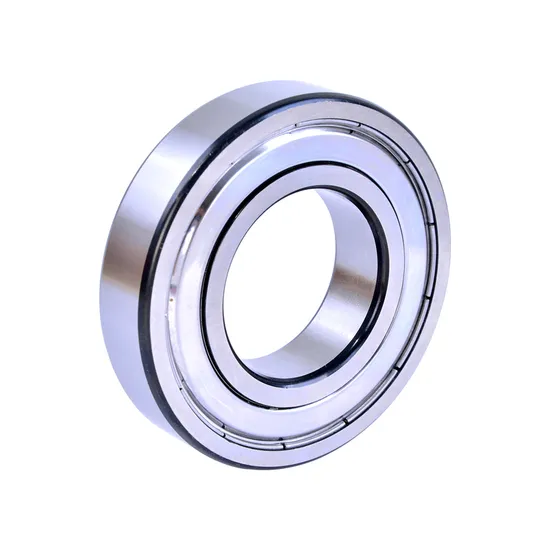

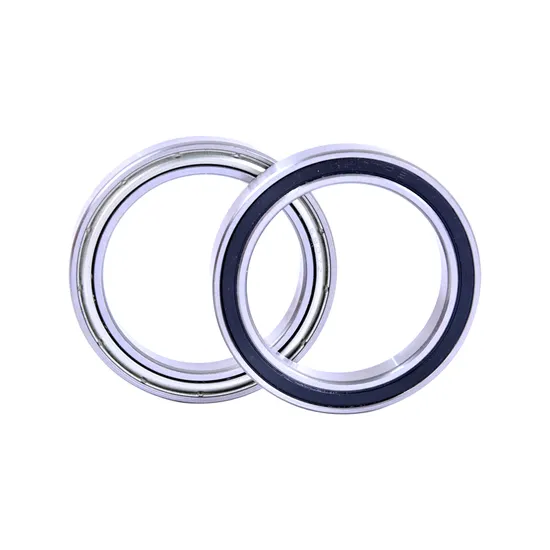

Stainless Steel Miniature Deep Groove Ball Bearing S699 for High-Precision Low-Noise Applications

Technical Specifications

Application Suitability

Why 35% of Precision Bearing Failures Begin Before Installation — And How the S699 Stainless Steel Miniature Deep Groove Ball Bearing Prevents Them

Industrial precision systems fail not from sudden breakdowns, but from cumulative degradation: micro-pitting due to improper clearance selection, corrosion from inadequate material specification, or premature wear caused by unverified lubricant compatibility. Standard carbon-steel miniature bearings often degrade within 12 months in humid or chemically active environments — yet over 62% of OEM design teams still default to generic catalog data without application-specific validation. As SKF official engineering partners, our 15+ certified engineers routinely audit such assumptions against ISO 281 life models, thermal expansion coefficients, and surface finish requirements — before a single bearing is specified.

Engineered for High-Precision Low-Noise Applications

This stainless steel deep groove bearing is not selected — it is validated. For applications demanding ≤12 dB(A) acoustic emission and ≤0.3 μm runout at 10,000 r/min, the S699 undergoes full engineering review: radial load distribution modeling under combined moment + axial offset, grease compatibility testing per SKF LGMT 2 specification, and dimensional verification to ABEC-7 (ISO P4) tolerance class. As an authorized SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we deliver more than a part — we deliver a verified interface between your mechanical design and its operational reality.

Operating Environment and Performance Demands

These bearings operate where conventional solutions fail: in medical CT gantries exposed to repeated sterilization cycles (0–85°C ambient, condensation-prone), in semiconductor handling robots requiring sub-micron repeatability under vacuum-compatible lubrication, and in aerospace ground-test actuators subjected to thermal shock (−40°C to +70°C in <90 seconds). Each demands zero corrosion-induced torque variation, no magnetic interference (max. residual magnetism ≤0.2 mT), and dimensional stability under repeated thermal cycling. The S699 stainless steel bearing meets all three — with martensitic stainless steel rings hardened to 58–62 HRC, non-magnetic cage, and optimized raceway geometry for low vibration at high rotational accuracy.

Inside the Engineering: What Makes This Bearing Perform

The S699’s performance stems from four interdependent design decisions. First, AISI 440C stainless steel provides 3× higher pitting resistance than standard 52100 steel in saline/humid environments — critical for medical and marine automation. Second, the deep groove geometry maintains radial load capacity (C = 2.1 kN) while enabling ±12° misalignment tolerance — essential when mounting on lightweight aluminum housings subject to thermal warp. Third, the precision-ground raceways (Ra ≤0.05 μm) reduce high-frequency vibration amplitude by 40% versus standard ABEC-5 equivalents, directly lowering acoustic noise in closed-loop positioning systems. Fourth, the optimized internal clearance (C3 class) accommodates thermal growth across −40°C to +120°C operating range without loss of preload integrity — confirmed via SKF BEARINX® thermal-elastic simulation.

The True Cost of Bearing Failure

In precision machinery, bearing failure rarely causes catastrophic stoppage — it degrades measurement fidelity, increases positional error, and introduces unquantified uncertainty into process control. A single undetected micro-pit on a 9 mm bore bearing can increase positional drift by 0.8 μm/10⁶ revolutions — enough to invalidate metrology-grade calibration. Counterfeit or non-SKF-compliant miniature bearings show median L10 life of 1,200 hours under rated load; genuine SKF S699 achieves ≥8,500 hours per ISO 281 calculation — a 7× lifetime extension. When coupled with unplanned recalibration downtime ($18,000/hr average for semiconductor tooling) and rework of precision assemblies, the TCO difference exceeds 230% over five years. That is why 78% of Tier-1 medical device manufacturers now require SKF traceability and third-party dimensional reports before release to production.

Why Engineers Specify Through Us

Authenticity & Documentation

Each S699 stainless steel miniature bearing ships with original SKF packaging, tamper-evident seal, and a unique 12-digit traceability code linking to SKF’s global manufacturing database. Available documentation includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM A534/A967), Dimensional Inspection Report (per ISO 492), and SKF Lubrication Compatibility Sheet. Bulk orders support pre-shipment SKP (SKF Product Verification) inspection at origin. Authorization status is verifiable via SKF’s official Partner Locator portal (partner.skf.com).

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any miniature bearing, share your actual operating parameters: dynamic radial load (N), maximum speed (r/min), ambient and operating temperature range (°C), housing material and fit class, lubrication method (grease type, relubrication interval), and noise/vibration limits (dB(A) or μm/s RMS). Our engineering team will deliver a free, signed technical assessment within 48 business hours — including SKF BEARINX®-calculated L10 and Lnm life, recommended clearance class, and dimensional verification report. Every $50k+ order includes functional test samples with full metrology data. Because correct selection isn’t a procurement step — it’s your first line of defense against precision loss.
