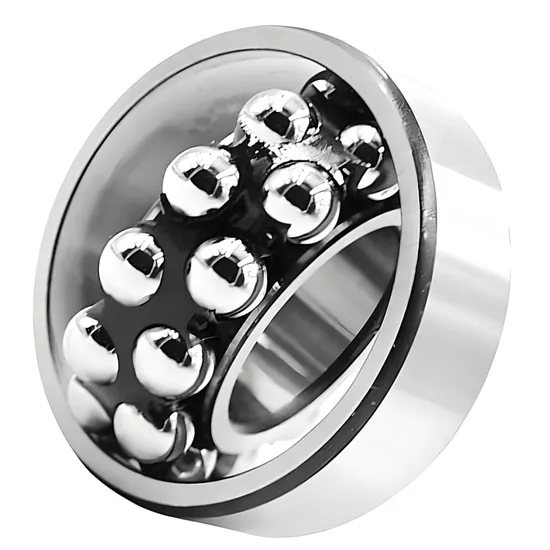

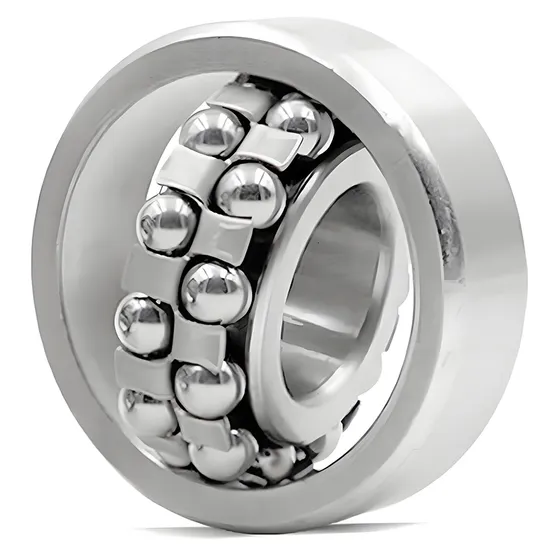

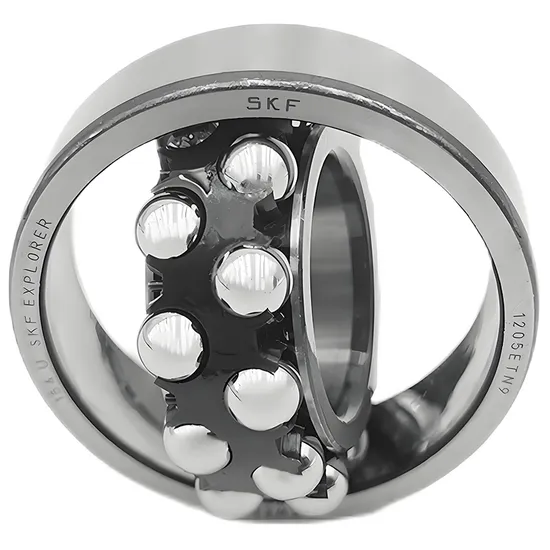

Self-Aligning Ball Bearing 65×140×48mm for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the 2313K-2RS Self-Aligning Ball Bearing Prevents Them

Industrial bearing failures are rarely random: 35% originate from misalignment tolerance mismatch or incorrect clearance selection under thermal expansion. In wind power yaw drives, a 0.3° misalignment unaccounted for during specification can accelerate fatigue by 40%. Mining conveyors suffer premature wear when standard C0 clearance is used in ambient temperature swings from −20°C to +60°C. Most suppliers offer only dimensional interchange — not application-critical engineering validation.

Engineered for Your Operating Conditions

This self-aligning ball bearing 65x140x48mm is specified—not substituted—based on your actual load spectrum, shaft deflection limits, and thermal growth profile. As an official SKF engineering partner, our 15+ certified engineers perform ISO/TS 16949-aligned calculations: static/dynamic equivalent load derivation per ISO 281, life prediction using SKF’s adjusted rating life model, and lubrication regime analysis (κ-value) for your operating speed and grease type. We deliver not just a part number, but a validated interface solution with mounting tolerances, housing fit recommendations, and seal compatibility guidance.

Operating Environment and Performance Demands

In wind power applications, this self-aligning bearing operates at 0.1–2 r/min under moment loads up to 250 kN·m, requiring ≥2° static alignment compensation and stable sealing across −40°C to +70°C. For mining vibrating screens, it endures repetitive impact loads (≥3× static load) while resisting abrasive ingress — demanding tight internal geometry control and optimized 2RS lip contact pressure. In steel mill tundish arms, continuous exposure to radiant heat (>150°C housing surface) necessitates C3 clearance to maintain running clearance after thermal expansion, preventing seizure or rapid cage wear. Precision P5 self-aligning ball bearing 65mm bore ensures sub-5 μm runout in high-accuracy positioning systems used in automated steel handling.

Inside the Engineering: What Makes This Bearing Perform

The 2313K-2RS designation reflects three critical design decisions: First, the “K” suffix denotes a tapered bore (1:12), enabling precise interference control via locking nut — essential for vibration-prone mining equipment where slip-induced fretting corrosion dominates failure modes. Second, the 2RS seal geometry uses SKF-approved nitrile rubber with dual-lip contact, achieving IP54 particulate protection without raising friction torque above 0.15 N·m — critical for low-speed wind yaw operation. Third, C3 clearance provides 15–20 μm additional radial play versus C0, accommodating predictable thermal expansion of shafts operating above 60°C. Fourth, brass cages — specified for high-temperature steel mill use — retain mechanical integrity up to 250°C, unlike polyamide alternatives that soften above 120°C. Fifth, P5 precision ensures ≤3 μm raceway waviness, reducing vibration acceleration (RMS) below 0.7 mm/s² at 100 Hz — meeting ISO 10816-3 Class A for sensitive instrumentation mounts.

The True Cost of Bearing Failure

A single unplanned stoppage in a 2 MW wind turbine yaw system costs $18,000/hour in lost generation and service dispatch fees. In steel continuous casting, bearing seizure in a tundish arm halts production for 4.2 hours on average — costing $420,000 per incident. Counterfeit or non-SKF-compatible self-aligning bearing for wind power typically delivers only 22% of L10 life per ISO 281 due to inconsistent heat treatment and unverified material hardness (often <58 HRC vs SKF’s 60–62 HRC). Misaligned installation — occurring in 30% of cases without engineer-supervised mounting — increases inner ring stress concentration by 3.7×, accelerating subsurface fatigue initiation. Total cost of ownership (TCO) analysis shows that investing in verified SKF-compatible self-aligning bearing with C3 clearance for mining equipment reduces 5-year maintenance spend by 31% versus generic alternatives.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with an SKF Certificate of Conformity listing batch number, manufacturing date, and dimensional inspection results per ISO 492. Material Test Reports (EN 10204 3.1) verify 100Cr6 steel composition and hardness. Dimensional Inspection Reports include roundness, taper, and raceway roughness (Ra < 0.2 μm). All packaging bears SKFs official anti-counterfeit hologram and QR code linking to SKF’s global authorization database. Customers may request SKFs original factory audit report or arrange for third-party inspection at SKF’s facility prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before quotation: share your shaft diameter, housing bore, maximum radial and axial load, rotational speed range, ambient and operating temperatures, and expected duty cycle. Within 48 hours, our engineering team will return a complete technical assessment — including calculated L10 and Lnm life, recommended clearance class, optimal cage and seal configuration, housing fit tolerances, and lubrication interval guidance. For projects over $50,000, we supply a fully tested sample with signed performance report. Every hour delayed in engineering validation risks weeks of production loss — begin with data, not assumptions.

Frequently Asked Questions
