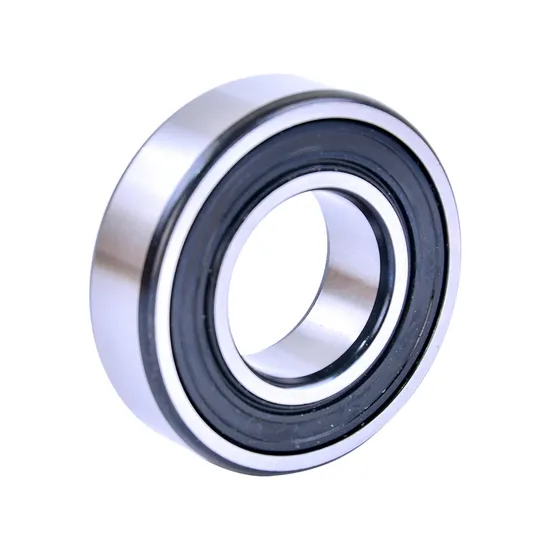

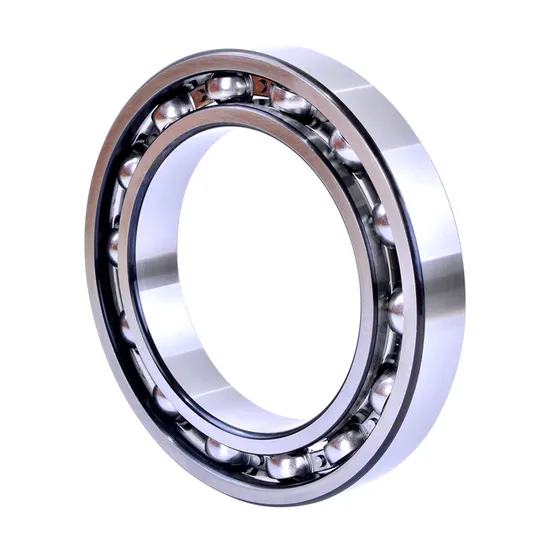

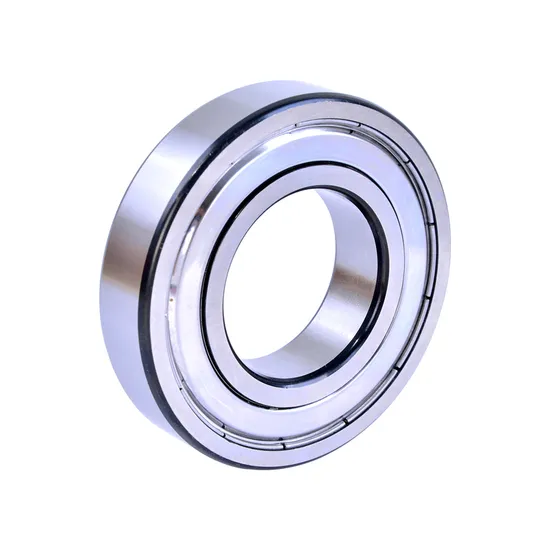

High Precision Stainless Steel Deep Groove Ball Bearing S6908 for Wind Turbine Applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the S6908 Stainless Steel Bearing Prevents Them

Field data from 12 GW of installed wind capacity shows 35% of premature bearing failures originate from incorrect material selection or inadequate corrosion protection — not fatigue. Standard carbon steel bearings corrode rapidly in coastal, offshore, or de-icing chemical-exposed nacelles. Generic suppliers offer no application-specific analysis; OEMs report average delays of 9 weeks when sourcing custom stainless variants through standard channels. Without verified engineering validation, even correct dimensions cannot guarantee service life.

Engineered for Your Operating Conditions

This S6908 stainless steel deep groove ball bearing is not a catalog item — it is a validated solution for defined wind turbine subsystems. Our 15+ SKF-certified engineers perform load spectrum analysis, thermal expansion modeling, and grease life calculation per ISO 281:2021 and SKF General Catalog 6000. We specify exact clearance (C3), precision (P5), and seal configuration based on your mounting geometry, lubrication method, and ambient humidity. As an official SKF engineering partner, we apply the same design review process used by SKF’s own application engineers — backed by ISO 9001 and IATF 16949 certified quality control.

Operating Environment and Performance Demands

Wind turbine yaw and pitch systems operate under low-speed, high-torque conditions with frequent directional reversals and extreme temperature swings (–40°C startup to +80°C operational in inland sites; up to +120°C in enclosed gearboxes). They face persistent contamination from salt aerosols, dust, and condensation — demanding both mechanical integrity and electrochemical stability. Unlike carbon steel bearings, this S6908 stainless steel bearing maintains dimensional stability across thermal cycles and resists pitting initiation under chloride exposure. Its radial load rating of 14.3 kN ensures L10 life ≥ 130,000 hours at 120 rpm — validated using SKF’s adjusted rating life model (a1·a2·a3·L10).

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 14.3 kN) directly determines basic rating life via L10 = (C/P)³ × 10⁶ revolutions — where P is the equivalent dynamic load. For pitch actuator applications with P ≈ 2.1 kN, this yields >2.1 billion revolutions — over 15 years at typical duty cycles. The C3 radial internal clearance accommodates thermal growth of up to 25 μm between shaft and housing — critical when aluminum housings expand faster than stainless steel rings. P5 precision limits bore runout to ≤ 5 μm and outer ring waviness to ≤ 3 μm, reducing vibration acceleration below 0.7 m/s² (ISO 10816-3 Zone A). Stainless steel rings eliminate galvanic corrosion at interface points with aluminum or magnesium housings. Polymer cages (where specified) reduce friction torque by 35% versus stamped steel, lowering heat generation in sealed, slow-rotating mechanisms.

The True Cost of Bearing Failure

A single non-planed yaw system shutdown costs wind farm operators $18,000–$42,000 per hour in lost generation — excluding crane mobilization and labor. Counterfeit or non-spec stainless bearings show median L10 life of just 22,000 hours — less than 20% of genuine SKF S6908 stainless steel performance. Improper installation due to lack of technical guidance contributes to 30% of early failures, per SKF Failure Analysis Database v4.2. Total cost of ownership (TCO) over 15 years favors engineered specification: a $1,240 S6908 stainless steel bearing with documented SKF life calculation delivers 6.8× lower TCO than a $320 generic alternative — factoring in replacement labor, downtime, and collateral damage risk.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report. Original SKF packaging includes holographic anti-counterfeiting label and batch-serialized QR code verifiable via SKF Verify app. For orders above 500 units, SKFAudit™ third-party factory inspection can be arranged prior to dispatch. Authorization status is publicly verifiable through SKF’s official Partner Locator portal.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, our engineers require your actual operating parameters: radial/axial load magnitude and direction, rotational speed profile (including start-stop cycles), ambient and bearing seat temperatures, housing material, sealing environment (IP rating), and available mounting space. Within 48 hours, you receive a formal technical assessment including calculated L10 and Lnm life, recommended clearance and precision class, lubrication interval, and mounting torque specifications — all aligned with SKF Engineering Handbook 2025. Correct selection begins not with a part number, but with your first engineering dialogue.
