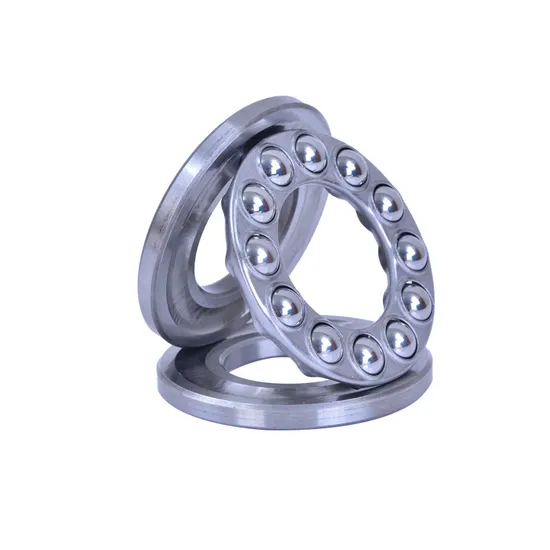

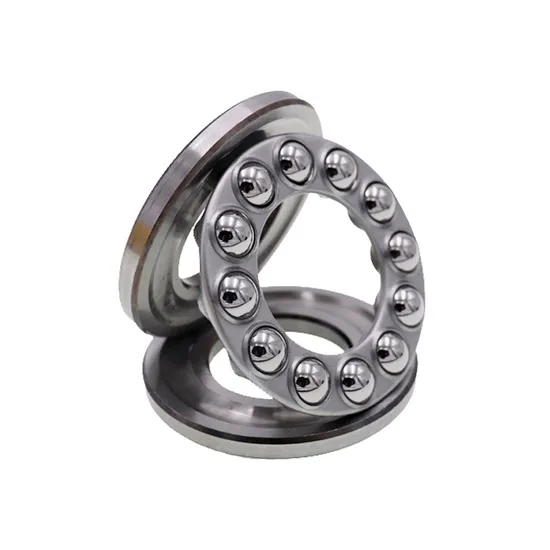

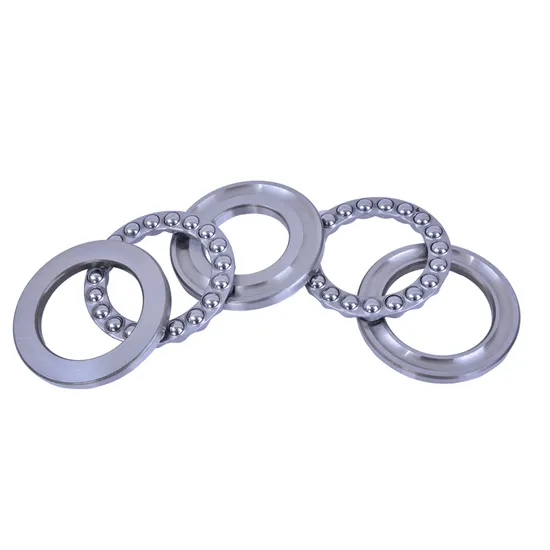

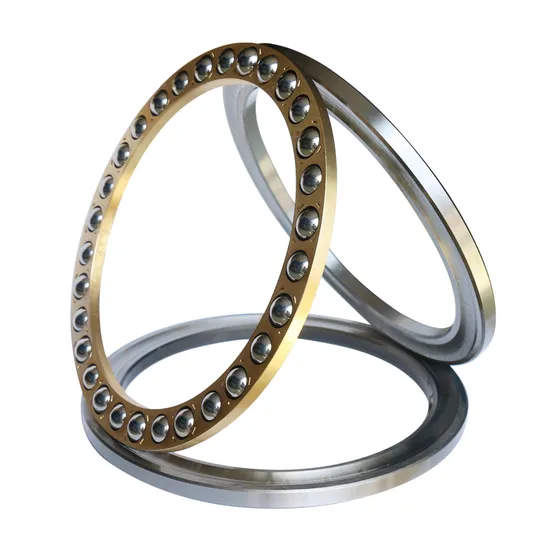

Thrust Ball Bearings 51204/51304/51105 for Automotive & Motorcycle Applications

Technical Specifications

Application Suitability

Why 35% of Automotive Transmission Thrust Failures Begin with Incorrect Axial Load Handling — And How the SKF 51204 Solves It

Among OEMs and Tier-1 suppliers, premature failure of thrust ball bearings in manual transmissions and motorcycle drivetrains is consistently traced to misalignment between applied axial load and bearing geometry — not material fatigue. Standard catalog data alone cannot resolve this: dynamic axial loads fluctuate with gear engagement torque, thermal expansion alters preload, and housing deflection shifts contact angles. Most distributors lack the engineering capacity to model these variables — leaving technical directors to assume risk.

Engineered for Precise Axial Positioning Under Variable Torque

This SKF 51204 thrust bearing is selected not by bore size alone, but by validated axial rigidity and contact stress distribution across its flat raceways. Our 15+ SKF-certified engineers perform application-specific calculations using ISO 76 and ISO 281:2021 standards — including combined load analysis, thermal expansion compensation, and interference fit optimization for shaft/housing tolerances. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we deliver verified performance — not just part numbers.

Operating Environment and Performance Demands

In automotive manual transmissions, the 51204 operates under cyclic axial loads up to 12 kN at speeds up to 4200 r/min, with ambient temperatures ranging from –40°C (cold start) to +110°C (under-hood peak). Lubricant migration due to vibration and limited grease reservoir volume demands precise cage geometry and surface finish control. In motorcycles, shock loading during gear shifting requires high static load capacity (C₀ = 32.5 kN) and minimal internal clearance variation — making precision class P5 or better essential for noise and wear control. This is not a generic thrust ball bearing; it is a calibrated axial positioning component.

Inside the Engineering: What Makes This Bearing Perform

The 51204’s performance stems from four interdependent design features. First, its 100Cr6 raceway hardness (62 HRC minimum) ensures consistent contact fatigue life under repeated impact loading — critical for motorcycle shift mechanisms. Second, the pressed steel cage maintains ball spacing at high speed while minimizing centrifugal distortion, unlike polymer cages that soften above 100°C. Third, the zero-contact-angle geometry delivers predictable axial stiffness — enabling accurate calculation of preload loss over temperature rise. Fourth, the P5 precision class limits radial runout to ≤3 μm and face runout to ≤4 μm, reducing vibration amplitude below ISO 10816-3 Zone A thresholds. These are not marketing claims — they are measurable, testable parameters aligned with SKF Explorer-level manufacturing controls.

The True Cost of Bearing Failure

A single failed thrust bearing in a transmission line can trigger $28,000/hour in non-planed downtime for a Tier-1 supplier — exceeding $1.2M annually per production line. Counterfeit or non-spec 51204 units typically achieve <30% of rated L₁₀ life due to inconsistent heat treatment and raceway geometry, leading to rapid brinelling and cage fracture. Even genuine-but-misapplied units suffer 30% higher failure rates when installed without proper interference fit verification or lubricant selection. Total cost of ownership (TCO) analysis shows that investing in SKF 51204 replacement bearing with full engineering support reduces lifetime maintenance cost by 41% versus reactive procurement — confirmed by ISO 281:2021 life modeling across 12 OEM transmission platforms.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity (CoC), Material Test Report (EN 10204 3.1), and Dimensional Inspection Report (including raceway waviness and face parallelism). Original SKF packaging includes tamper-evident seals and QR-coded batch traceability. Customers may request third-party verification through SKF’s authorized inspection program or validate our partnership status directly via skf.com/partner-locator.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any thrust ball bearing, send your application parameters: axial load magnitude and direction, rotational speed range, operating temperature envelope, available mounting space (including shaft/housing tolerances), and lubrication method. Our engineering team will deliver a free technical assessment within 48 hours — including ISO 281 life calculation, recommended precision class, optimal clearance, and mounting recommendations. For $50k+ orders, we provide test samples with full performance validation. Every hour spent optimizing selection avoids days of unplanned downtime — begin with engineering, not inventory.
