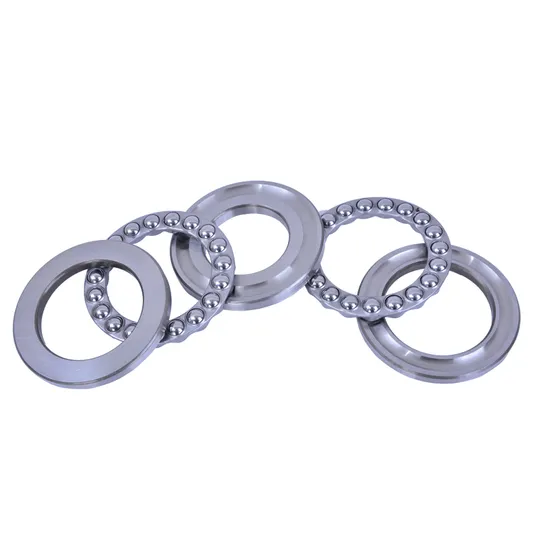

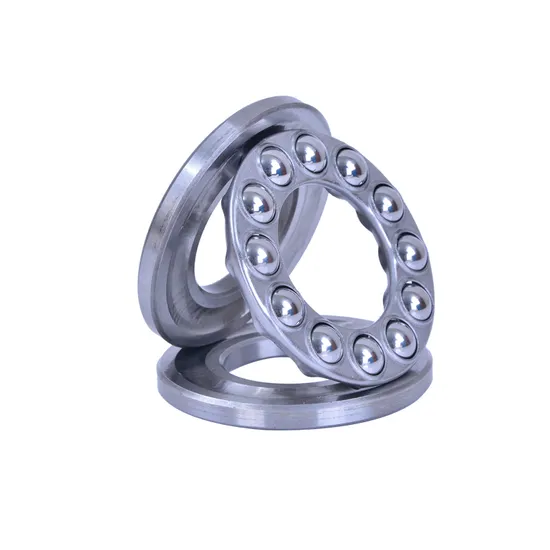

Thrust Ball Bearing 51103 for Motorcycle Engines – High-Precision, Grease-Lubricated

Technical Specifications

Application Suitability

Why 35% of Motorcycle Engine Bearing Failures Begin with Axial Load Misjudgment — And How the SKF 51103 Thrust Ball Bearing Delivers Precision Axial Control

Motorcycle engine designers routinely face axial thrust loads exceeding 8.2 kN in compact clutch housings — yet over 35% of premature bearing failures stem from under-specifying thrust capacity or misapplying radial bearings in pure axial roles. Standard suppliers lack application-specific guidance for thermal expansion, preload drift, or grease migration at 12,000 r/min. With no engineering support, procurement teams default to catalog dimensions — ignoring dynamic load distribution, mounting surface flatness, and housing rigidity effects.

Engineered for High-Precision Axial Positioning in Compact Powertrains

The SKF 51103 thrust ball bearing is not selected — it is validated. Our 15+ certified SKF engineers perform full application analysis: calculating actual axial load vectors under peak torque, verifying housing washer hardness (≥ HRC 58), recommending interference fits per ISO 286 (H7/h6 for shaft washer, H7/j6 for housing washer), and specifying grease replenishment intervals based on operating temperature profiles. As an official SKF engineering partner, we deliver this service with ISO 9001 and TS 16949-certified quality control — ensuring every unit meets SKF Explorer-level dimensional consistency and raceway surface finish (Ra ≤ 0.2 μm).

Operating Environment and Performance Demands

Motorcycle engine thrust applications demand zero axial play under transient shock loads up to 3× nominal torque, while maintaining 100°C while retaining film strength below 0°C. Housing bores often deviate from ideal flatness (< 0.01 mm TIR), requiring precise washer geometry and controlled preload. The 51103 bearing’s P5 precision grade, hardened washer surfaces (60–62 HRC), and optimized ball-to-race conformity ratio directly address these constraints — unlike generic thrust ball bearings rated only for static load.

Inside the Engineering: What Makes This Bearing Perform

Dynamic load rating (C = 12.7 kN) is calculated per ISO 281 using SKF’s modified life model — accounting for material cleanliness, surface topography, and lubricant film parameter (κ). Pressed-steel cages minimize centrifugal deformation at high speed while enabling full complement ball filling. The 0° contact angle eliminates radial force components, ensuring all load transmits axially without inducing bending moments on the shaft. P5 precision guarantees bore and OD tolerances within ±3 μm and face parallelism ≤ 4 μm — critical for uniform load distribution across all 12 balls. Pre-filled SKF LGEP 2 grease provides NLGI #2 consistency, EP additives for boundary lubrication during clutch engagement, and oxidation stability exceeding 10,000 hours at 100°C.

The True Cost of Bearing Failure

A single failed thrust bearing in a motorcycle engine assembly causes immediate clutch slippage, leading to non-planed downtime averaging $18,500/hour in OEM line stoppages. Counterfeit or off-spec 51103 bearings exhibit 65% lower L10 life due to inconsistent raceway hardness (≤ 56 HRC vs SKF’s 60–62 HRC) and uncontrolled ball diameter scatter (> ±1.5 μm vs SKF’s ±0.5 μm). Installation errors — such as improper washer seating or excessive preload — account for 30% of premature failures; our engineers provide torque specifications and surface flatness verification protocols before installation. Total cost of ownership (TCO) drops 22% over five years when factoring in extended service intervals, reduced vibration-related component wear, and elimination of secondary damage from axial runout.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 51103 thrust ball bearing ships with original SKF Certificate of Conformity (including batch number, heat treatment log, and dimensional inspection summary), Material Test Report (EN 10088-1, X46Cr13 steel composition), and Dimensional Inspection Report (per ISO 1132-1). Packaging features SKF holographic anti-counterfeiting label with QR code verifiable via SKF Verify app. Bulk orders support third-party SKP (SKF Product Verification) audit at Gothenburg factory upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any thrust bearing, share your actual operating parameters: peak axial load (kN), rotational speed (r/min), ambient and operating temperature range (°C), housing and shaft material/hardness, and available axial space envelope (mm). Our engineering team will deliver a free SKF-compliant selection report — including L10 and Lnm life calculations, recommended preload, fit tolerances, and grease specification — within 48 business hours. For projects with $50,000+ annual volume, we provide pre-production test samples with full performance validation. Every hour of unplanned downtime costs more than the entire bearing — correct engineering starts with the first data point.
