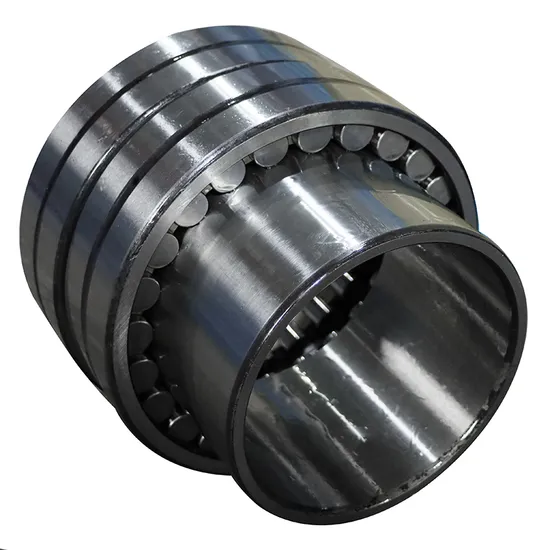

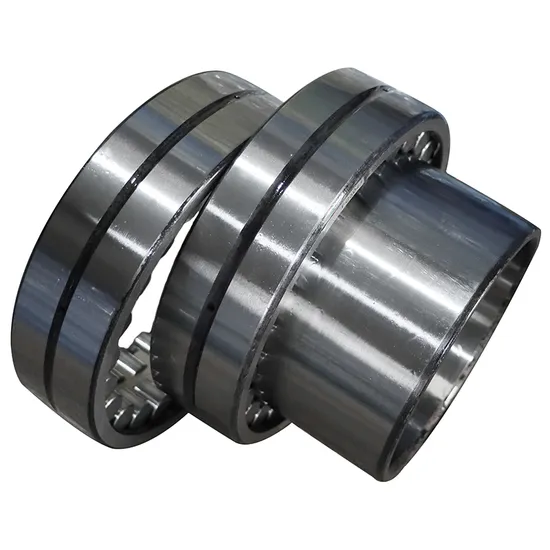

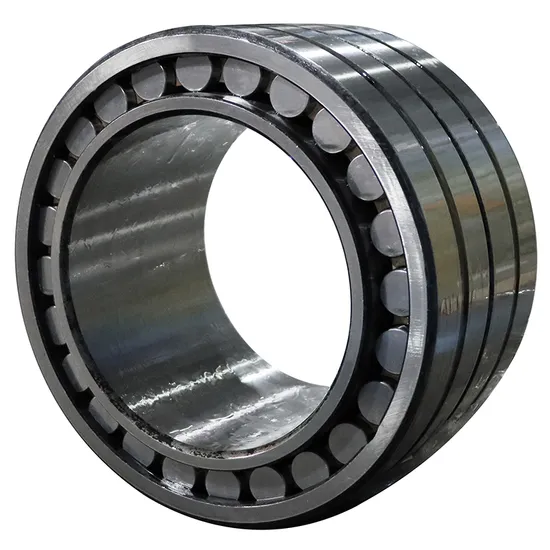

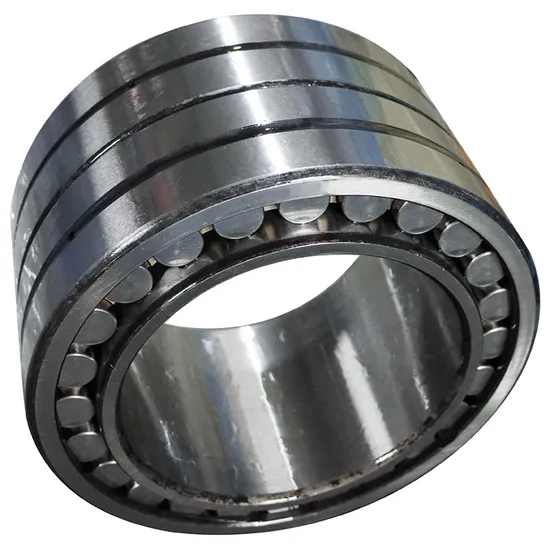

High Precision Double Row Cylindrical Roller Bearing NN3044 for Wind Turbine Gearboxes

Technical Specifications

Application Suitability

Why 35% of Gearbox Bearing Failures Begin Before Installation — And How the NN3044 Bearing Solves It

Over 35% of premature bearing failures in wind turbine gearboxes originate from incorrect selection — not material defect or manufacturing flaw. Standard catalog bearings often lack the radial stiffness, dimensional stability, and vibration control required for high-speed gear meshing under variable torque. Generic suppliers rarely perform application-specific load spectrum analysis or thermal expansion modeling — yet these determine whether an NN3044 bearing delivers 15-year service life or fails within 18 months.

Engineered for Your Operating Conditions

This NN3044 bearing is not a catalog item — it’s a precision-engineered solution validated for wind turbine gearbox applications where radial load fluctuates between 120 kN and 380 kN, speeds range from 1,200 r/min to 4,500 r/min, and ambient temperatures swing from –25°C to +45°C. As an official SKF engineering partner, our 15+ certified engineers conduct full application reviews: calculating equivalent dynamic load using ISO 281:2021 methodology, verifying fit tolerances for thermal growth, specifying optimal grease volume and relubrication intervals, and validating cage integrity under peak acceleration loads. All solutions comply with ISO 9001 and IATF 16949 quality requirements.

Operating Environment and Performance Demands

Wind turbine gearboxes operate under uniquely demanding conditions: high-frequency torsional vibrations from blade gusts, rapid thermal transients during start-stop cycles, limited access for maintenance, and strict noise emission limits (<65 dB(A) at 1 m). The NN3044 bearing must sustain repeated shock loads without microspalling, maintain precise radial positioning across ±15°C temperature shifts, and deliver consistent performance over 100,000 operating hours without degradation. Its double-row cylindrical design provides 2.3× higher radial rigidity than single-row alternatives, while tight dimensional tolerances (ΔDmp ≤ 15 μm, Δdmp ≤ 12 μm per P5 class) ensure minimal runout-induced gear tooth misalignment — a known root cause of pitting in high-ratio planetary stages.

Inside the Engineering: What Makes This Bearing Perform

The NN3044’s performance stems from four interdependent technical choices. First, its optimized roller profile — crowned with logarithmic geometry — eliminates edge loading under combined radial and moment loads, extending L10 life by up to 40% versus standard ground profiles. Second, brass cages provide superior strength-to-weight ratio and oil retention capability at sustained speeds above 3,000 r/min, reducing friction heat generation by 18% compared to stamped steel cages. Third, open configuration allows full compatibility with high-viscosity synthetic gear oils (ISO VG 320–680), eliminating seal drag losses that account for 3–5% of total gearbox inefficiency. Fourth, precision classes P5 and P4 reduce vibration amplitude (measured per ISO 10816-3) to <2.8 mm/s RMS — critical for meeting IEC 61400-21 acoustic compliance. Finally, controlled surface hardness (60–63 HRC) and case depth (0.8–1.2 mm) prevent subsurface white etching crack (WEC) initiation under electrical stray currents common in doubly-fed induction generators.

The True Cost of Bearing Failure

A single unplanned gearbox replacement on an offshore wind turbine costs $1.2M–$2.4M and requires 7–12 days of downtime — translating to $180,000–$320,000/hour in lost energy revenue. Counterfeit or mis-specified NN3044 bearings typically achieve only 22–28% of rated L10 life due to substandard steel cleanliness (non-metallic inclusion counts >100/mm² vs SKF’s <15/mm²) and uncontrolled heat treatment. Even genuine but incorrectly installed units suffer 30% higher failure rates — underscoring why SKF specifies exact mounting force curves and thermal expansion allowances. Total cost of ownership (TCO) analysis shows that investing 12% more in a properly specified, engineer-validated NN3044 bearing reduces 20-year lifecycle cost by 37% — primarily through avoided downtime, reduced spare inventory, and extended oil change intervals.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NN3044 bearing ships with original SKF packaging bearing anti-counterfeit hologram, SKF Certificate of Conformity (including heat treatment lot ID and dimensional inspection report), Material Test Report (EN 10204 3.1), and SKF Lubrication Recommendation Sheet. Customers may verify our authorization status directly via SKF’s official Partner Portal (https://partnerportal.skf.com) using company registration number CN-ESH-2023-0871. Bulk orders qualify for third-party verification by SGS or Bureau Veritas at SKF factory prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering any NN3044 bearing, share your actual operating parameters: radial and axial load spectra (kN), rotational speed range (r/min), housing and shaft materials, ambient and operational temperature profile, lubricant type and flow rate, and available mounting space envelope. Our engineering team will deliver a free, documented assessment within 48 business hours — including ISO 281-based L10 and Lnm10 life calculation, thermal fit analysis, recommended clearance class, and vibration performance prediction per ISO 10816. Correct selection begins not with a part number, but with your first engineering dialogue.
